Zoomlion DC200 Low-temperature cross-flow circulation rice corn wheat grain dryer 20T

Low breakage rate, High drying efficiency

6080kg

Weight

11.57kw

Total power

2500-20000kg

Capacity

Get Quote

Product comparison

Product comparison

Total X Clear all

Zoomlion DC200 Low-temperature cross-flow circulation rice corn wheat grain dryer 20T

Features

Efficient drying technology

Based on the thin layer cross - flow drying process and ultra - large drying tower concept,

the specially designed low temperature fast drying technology can promote the post-ripening of

grain and improve the quality of grain taste while drying.

With advanced wind fluid dynamics simulation design, the hot air and grain can be fully contacted and mixed,

the grain layer can be heated moderately, and water penetrates evenly through the husk and escapes freely for optimal biochemical indexes,

taste and flavor of the grain after drying.

it is matched with the dehumidification fan feature high efficiency, low noise, heat resistance,

dust resistance and long life for high hot air penetration and drying efficiency.

With multi-grain drying structure design, it is suitable for drying of a variety of grains;

by adjusting drying parameters according to the heating characteristics of seeds,

it can also be used for seed drying, without affecting seed germination rate.

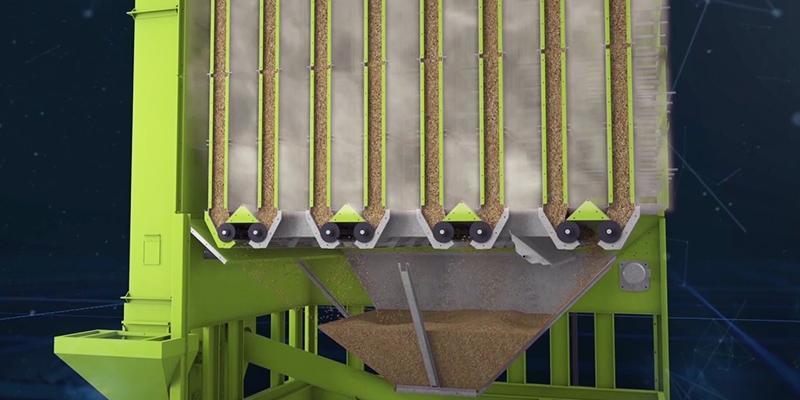

Low breakage technique

Special drying dustpan features low speed, large capacity and smooth edge, which contacts with grain gently, without impact with grain or cutting damage to grain;

It adopts the high-strength grain discharging wheel with stirring blade of double folded edges, which is capable of stirring grains inversely,

so that the grain freely flows into the grain discharging trough to reduce grain breakage.

It adopts low-speed, large-diameter and high-strength wear-resisting grain discharging screw convener,

reducing grain damage and prolonging service life.

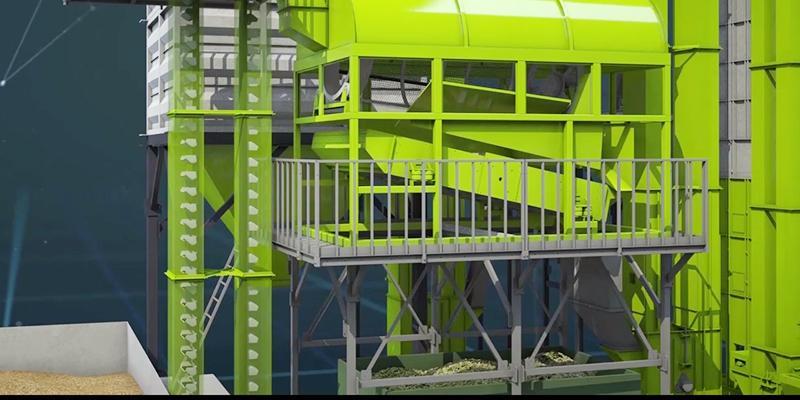

It adopts the low-speed bucket elevator with mixed discharge design according to natural fluid feeding and parabolic trajectory,

and the shell of the elevator adopts the flexible wear-resisting plate to prevent the impact and friction damage of grain.

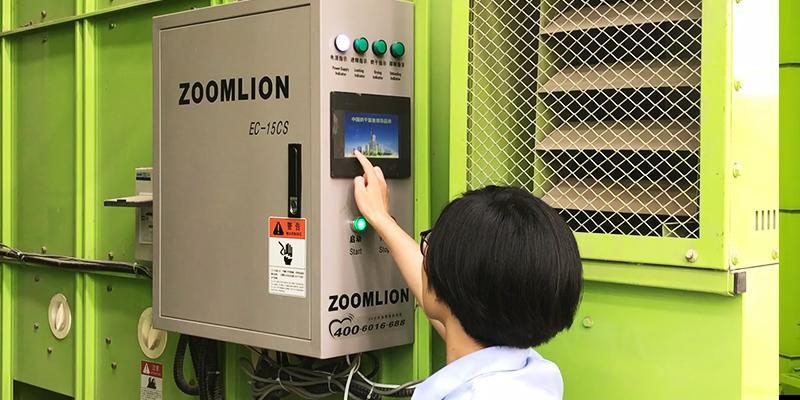

Intelligent control

It adopts intelligent electric cabinet, can realize online monitoring of drying process, timely fault alarm, remote control,

real-time moisture monitoring, and automatic shutdown when reaching the target moisture.

It adopts on-line moisture meter with high precision and accurate water measurement.

Adaptive to various heat sources

The flange size of the air inlet hood is fixed and the universal transition interface is provided for various heat source pipes,

which can match a variety of heat sources (coal, biomass rice husk, biomass particles, fuel oil, natural gas, steam, heat pump, etc.).

Product Parameters

Model		Unit	5HXG-20
Machine	Overall dimension(LWH)	mm	4250×3840×11790
	Dryer type	/	Batch Type Circulating Dryer
	Weight	kg	6080
	Power supply	V/Hz	Three-phase：380V/50HZ
	Total power	kW	115.57
Capacity	Rice	kg	6000-20000
Capacity	Wheat	kg	7280-24300
Performance	Feeding time needed	min	50-60/45-55
	Discharging time needed	min	55-65/50-60
	Hot air temperature	°C	30-120
	Hourly drying rate	%/h	0.7-1.3
Safety device		/	alarm (fault and temperature), automatic shutdown, temperature controlling device, electrical overload protection, power leakage protection device
