Zoomlion DC100 Low-temperature cross-flow circulation grain rice corn wheat dryer 10T

Low breakage rate, High drying efficiency

2840kg

Weight

9.44kw

Total power

2500-10000kg

Capacity

Total X Clear all

Features

Dedicated winnowing pan for drying.

Low-speed delivery device, reducing breakage rate of rice.

Optimized lifting system, patented design, reducing breakage effectively.

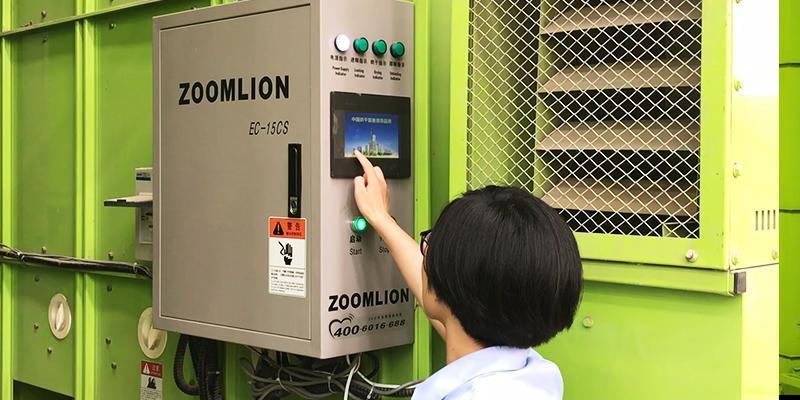

Intelligent control of electric control cabinet, on-line monitoring of drying process, timely alarm of fault and remote control.

Real-time monitoring of moisture, automatic shutdown when reaching target moisture.

Imported on-line moisture meter with high accuracy and precise water measurement.

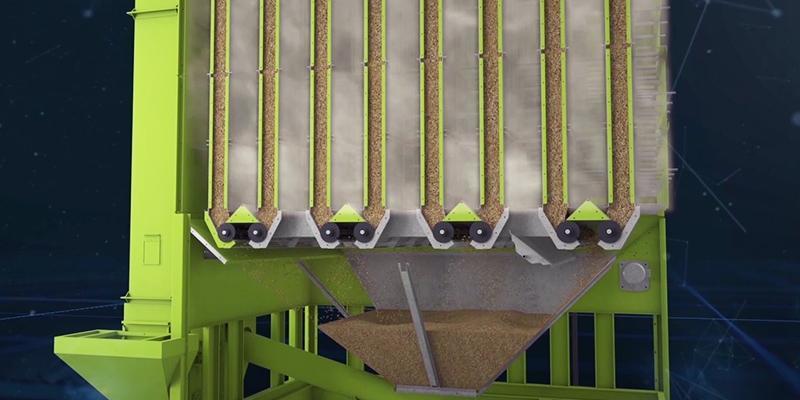

Advanced thin-layer cross-flow drying process, making air flow penetrable more easily.

Unique design of air intaking system, ensuing uniform heating of grain without dead angle and excellent grain quality.

High-efficiency and low-noise humidity elimination with large blast capacity and high drying efficiency;

Applicable to dry various cereals.

Capable of matching with environmentally friendly heat sources such as biomass particles, rice hull oven.

Fuel gas furnace is equipped with imported burner, which is efficient and reliable with safety being guaranteed.

Professional rice husk furnace adopts high-tech suspended combustion technology,

which can realize complete combustion without black smoke, with whole process under intelligent control.

Product Parameters

Model		Unit	DC100
Machine	Overall dimension(LWH)	mm	3577×2973×9315
	Weight	kg	2840
	Dryer type	/	Batch Type Circulating Dryer
	Power supply	V/Hz	Three-phase：220V/60HZ 380V/50HZ
	Total power	kW	9.44
Capacity	Rice	kg	2500-10000
Capacity	Wheat	kg	3035-12100
Performance	Feeding time needed (Rice/Wheat)	min	40-50/35-45
	Discharging time needed (Rice/Wheat)	min	50-60/45-55
	Hot air temperature	°C	30-120
	Drying ability	t*%/h	Rice≥6 / Wheat≥7
	Hourly drying rate	%/h	0.5-1.2
Safety device		/	alarm (fault and temperature), automatic shutdown, temperature controlling device, electrical overload protection, power leakage protection device
