Zoomlion 2ZPY-13G Rice seedlings throwing planter

Improved working efficiency

992kg

Weight

Number of rows of seedling throwing

0.5-0.8ha / h

Efficiency

Get Quote

Product comparison

Product comparison

Total X Clear all

Zoomlion 2ZPY-13G Rice seedlings throwing planter

Features

Advanced maturity

There is barely a seedling establishment period, plentiful effective tllers,

and a maturity stage 5-8 days in prior to that of machine-transplanted seedlings.

Thegeneral output is 10%-20% more than that of transplanted seedlings.

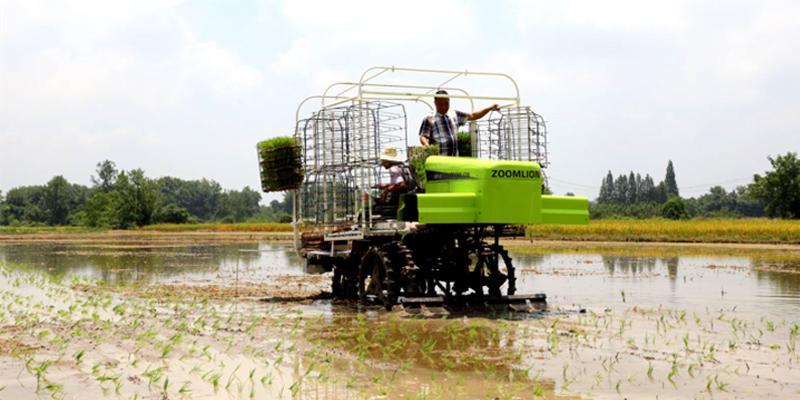

Improved working efficiency

It can throw 13 rows each time, with a working width 2.6m~3.9m and a maximum working efficiency of 15 mu/h which is 1.2~1 .5 times

that of 8-row high-speedseedling transplanting machine and around 10 times that of manual seedling throwing.

Revenue increased and expenditure reduced

Machine-thrown rice seedling helps save the cost and increase economic efficiency.

The machine-thrown seedlings of one mu can result in a net increase valueof RMB 150-200 considering the rice fertilizer saved and yield increase efficiency.

Enhanced regulatory function

The machine overcomes the disorderly and uneven distribution of manually-thrown seedlings and remedies the non-adjustable leading of seedling transplantingmachine.

The rice orderly seedling throwing machine enables an adjustable leading within 20cm~30cm and multiple levels of adjustable row spacing,

thus it canrealize a relatively more rational basic seedling volume and planting density compared to machine-transplanted and manually-thrown seedlings

and conform tothe technical requirements for the individual transplanting of corresponding rice variety.

Product Parameters

Model		Unit	2ZPY-13A
Driving type		/	Four-wheel drive
Dimension（L×W×H）		mm	389021602810
Minimum ground clearance		mm	440
Weight		kg	992
Engine	Model	/	E3112-UP08/E3112-UP10
	Type	/	Four cylinders, in line, water cooled
	Total exhaust	L	1.123
	Output / rotational speed	kW/ r/min	15.3/2500
	Fuel consumption	g/kW·h	≤262
	Fuel	/	No.0 diesel
Tank capacity		L	28
Variable speed gear number		/	Three steps forward and three back
Seedling throwing system	Starting mode		Electric motor start
	Position of seedling throwing device	/	Rear part
	Seedling throwing and lifting mode		Hydraulic type
	Seedling throwing square		Free fall along seedling throwing belt
	Number of rows of seedling throwing	row	13
	Row spacing	mm	210～320
	Planting spacing	mm	120、130、150、160、170、180、220、240
Efficiency		(ha / hour)	0.5-0.8
Seedling condition	Seedling species	/	Potted seedling
	Seedling height	mm	70～240
	Leaf number	/	2～4
Number of seedling trays		/	20
