Global9YZ-2200
- Product comparison
Features
Efficient Operation
|

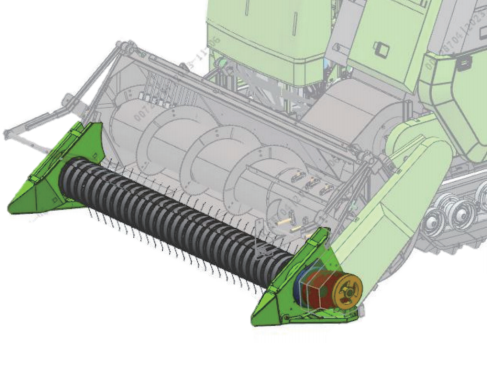

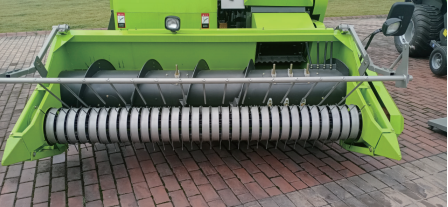

The front-mounted pickup avoids crawler rolling, meets the needs of different picking widths, and picks up more thoroughly. The 2.2 -meter 3 -row spring-tooth pickup makes picking up more efficient . The feeding auger adopts double belt drive, which has greater transmission power. Rubber scraping belts are added on both sides of the drum to make straw feeding smoother |
 |

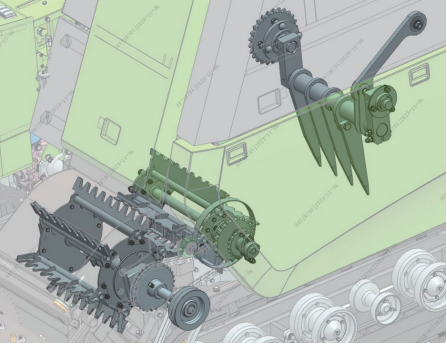

| The double-feed wheel straw conveying structure designed for wet straw can effectively avoid straw blockage in the conveying area, greatly improve work efficiency, and is more suitable for paddy field crop baling . |  |
 |

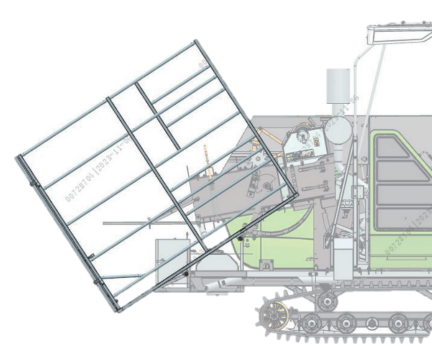

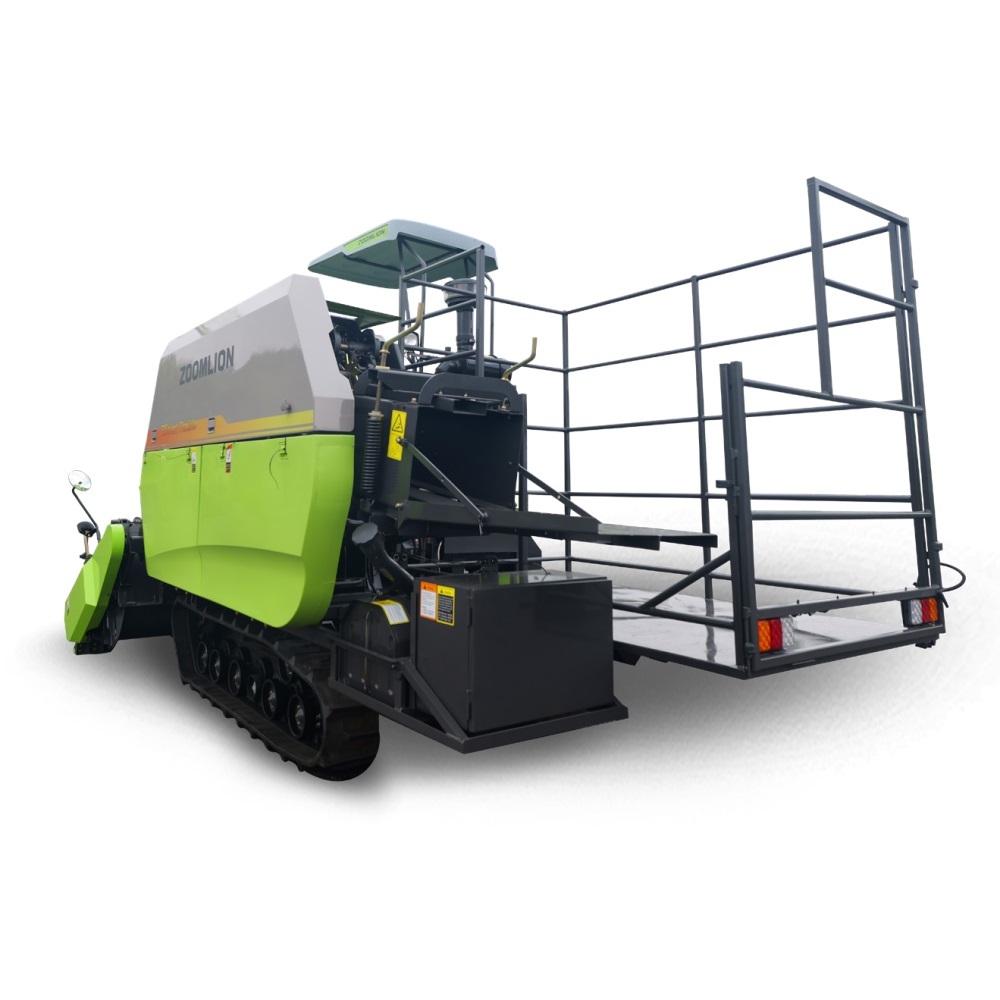

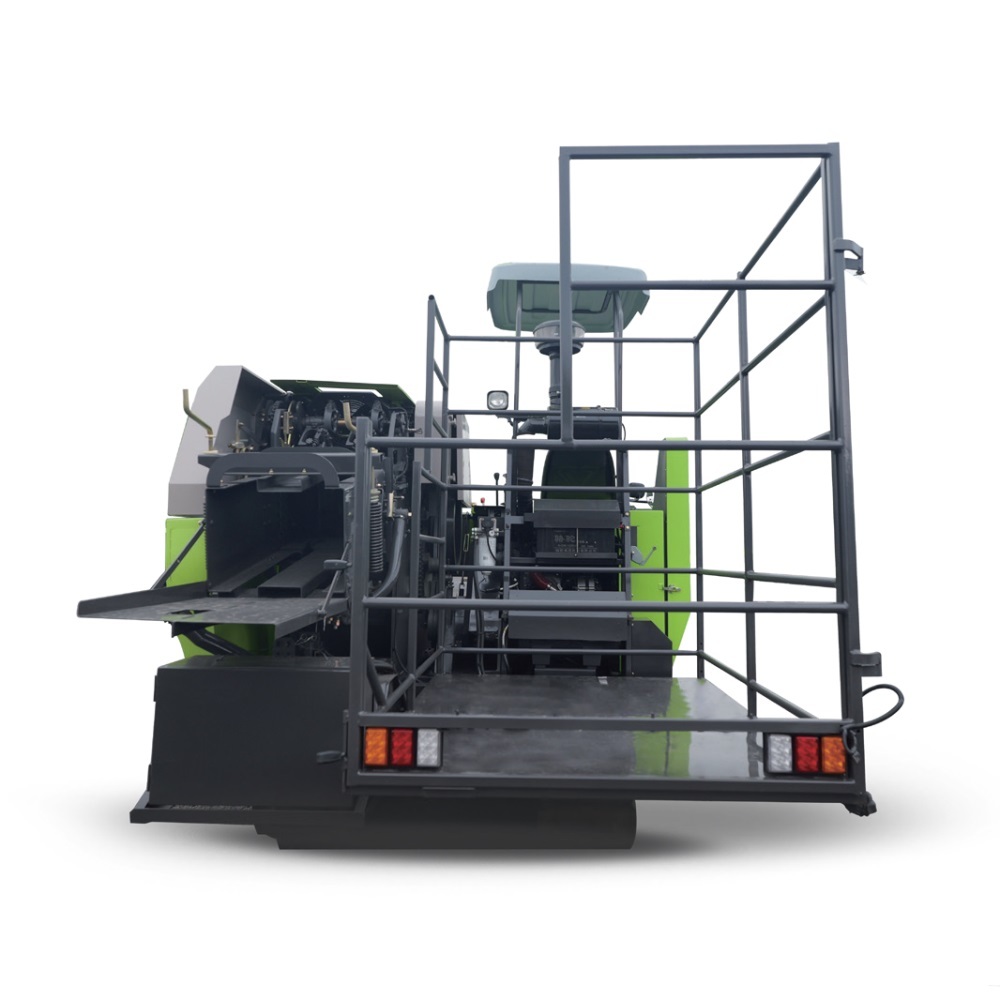

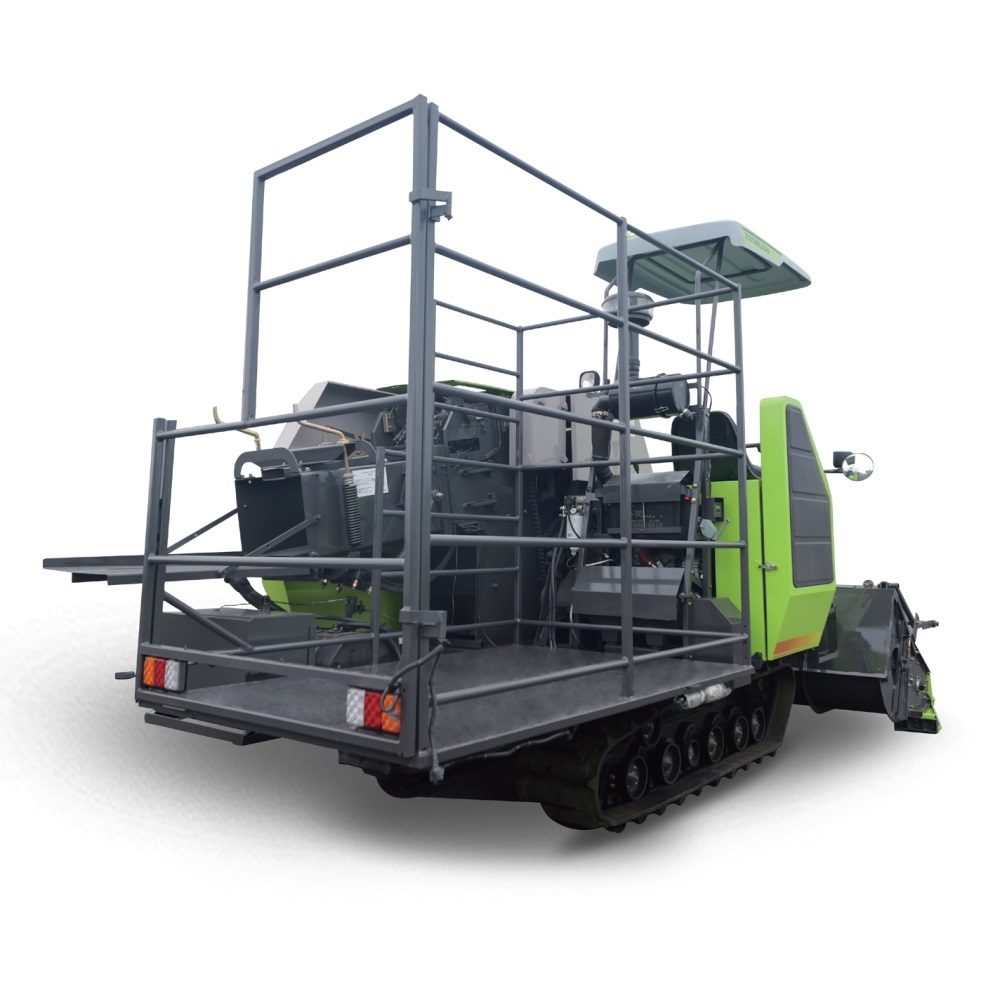

Equipped with a hydraulic self-unloading grass box, it can be unloaded by one lever on the operating console, reducing the workload of collecting and carrying grass bales . The grass box has a capacity of 3.8 square meters, which can greatly increase the amount of grass bales it can carry at one time, reducing the number of times the grass bales have to be carried back and forth |
Stable Baling
|

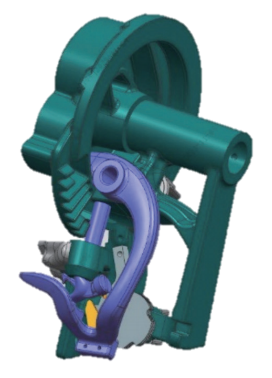

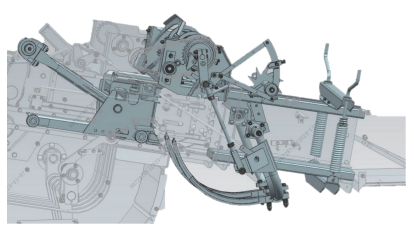

Adopt German Rasper high-quality D- type high-end knotter,which has high baling efficiency, can bundle in 10 seconds,has stable quality, and the product market test shows that30,000 bundles have not fallen apart . |
Equipped with a bale density controller, the spring tension can be adjusted according to on-site operating conditions such as forage variety and humidity to obtain bales with appropriate tightness to meet different market demands. |

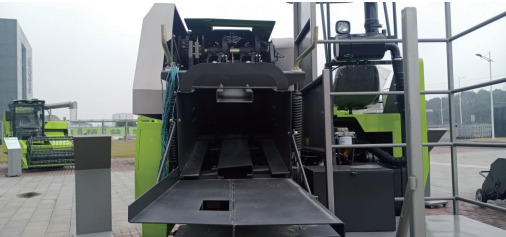

The baling machine frame, piston components and other key parts are manufactured in-house and have passed the company's high-standard product research and development verification system to ensure the reliable strength of the machine's sub-bale chamber and guarantee high-quality baling operations. |
 |
 |
 |

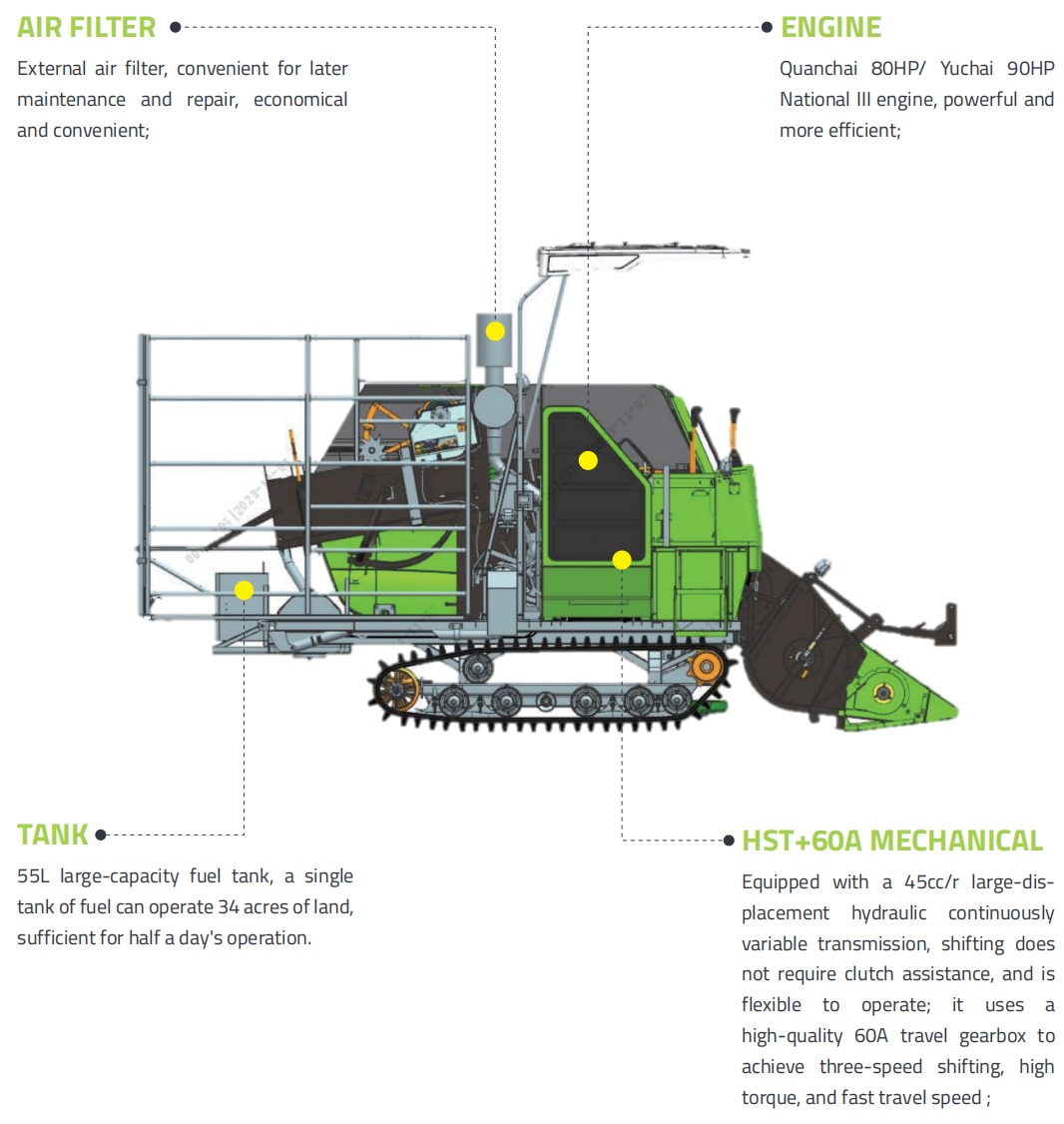

Reliable Power
Chassis And Operating System
|

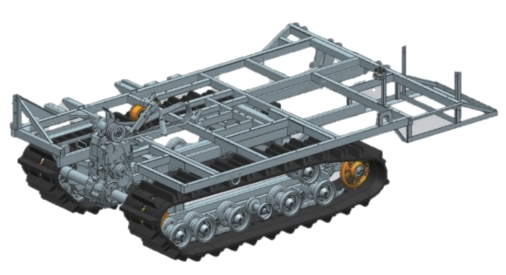

The chassis adopts an eight-shaped double-beam structure made of high-strength manganese steel, which has strong load-bearing capacity and high reliability; 258mm ground clearance, standard 400mm wide rubber track, effectively reducing ground pressure, turning on the spot, widely applicable to paddy field operations; |
 |
 |
 |
|

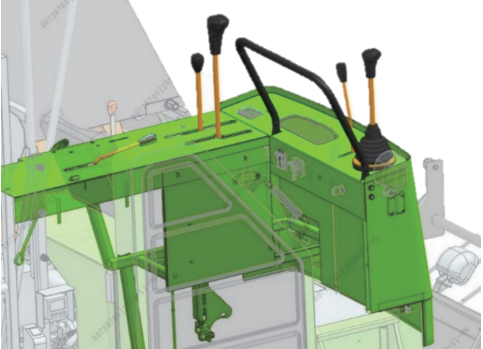

Equipped with a continuously variable transmission and multi-link control, it is easy to drive and greatly reduces the driver's learning cost. |

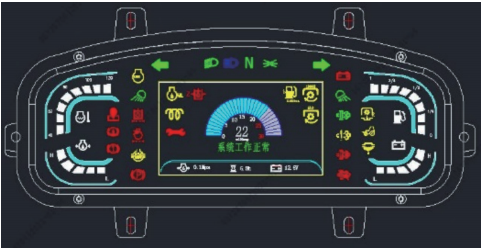

Strong self-detection capability, fault codes can be displayed on the instrument; equipped with a satellite positioning terminal to achieve satellite positioning and trajectory query of the entire machine in the background; |
Application Scenarios
|

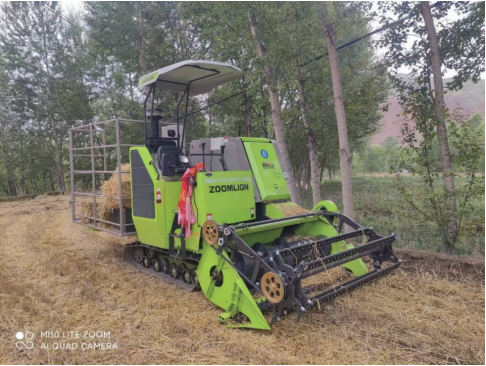

Special forage grass picker The front slide roller type (spring-tooth type) special grass picker can prevent the traction equipment from crushing the straw and pick up more thoroughly |
 |
|
Cutting Pickup The high-cut rice / wheat straw can be harvested and baled for the second time to achieve high straw recovery from the field. |
 |
|

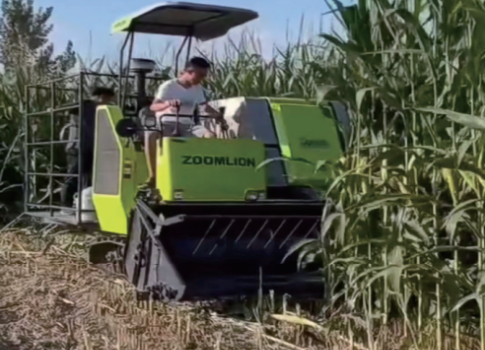

Floor cutter pick-up Realize the harvesting and baling opera tions of tall straw such as corn and sunflower. |
 |
Product Parameters
|
PROJECT |
UNIT |
SPECIFICATION |
|
Model Name |
/ |
9YZ-2200FB |
|
Mounting method |
/ |
Self-propelled |
|
Pickup width |
mm |
2200 |
|
Feeding inlet width |
mm |
465 |
|
Pickup structure type |
/ |
Spring tooth type |
|
Feeder structure type |
/ |
Fork feeding mechanism |
|
Knotter Type |
/ |
Type D |
|
Number of knotters |
indivual |
2 |
|
Compression chamber cross-sectional |
mm |
480*360 |
|
baling method |
/ |
Automatic rope baling |
|
Matching engine (motor) rated power |
kW |
60/66 |
|
Rated speed of matching engine (motor) |
r/min |
2400 |
|
Speed Shift |
/ |
Automatic transmission |
|
Drive mode |
/ |
Mechanical drive |
|
Brake type |
/ |
Disc |
|
Steering wheel track |
mm |
1150 |
|
Driving wheel track |
mm |
1150 |
|
Track type |
/ |
Gear drive |
|
Track width |
/ |
400×90×51 |
|
Track ground contact length |
mm |
1322 |
|
gauge |
mm |
1150 |
