Features
▪ Low speed spiral conveying, low grain crushing rate;
▪ Adopting a low crushing elevator, the grain drying quality is high;
▪ Thin layer high air volume drying layer, high drying efficiency, and good quality;
▪ Equipped with a grain impurity dust removal device to effectively reduce impurity content;
▪ The grain flow parts are made of special wear-resistant materials, with a long service life;
▪ The stirring dragon adopts special wear-resistant materials such as stainless steel
▪ to reduce operating speed, improve wear resistance, and reduce grain damage;
▪ Fully automatic drying monitoring system, simpler operation and more convenient management;
▪ Optional imported online grain moisture tester for real-time and accurate detection of moisture values;
▪ Multiple heating methods and fuels can be selected, resulting in low drying costs.

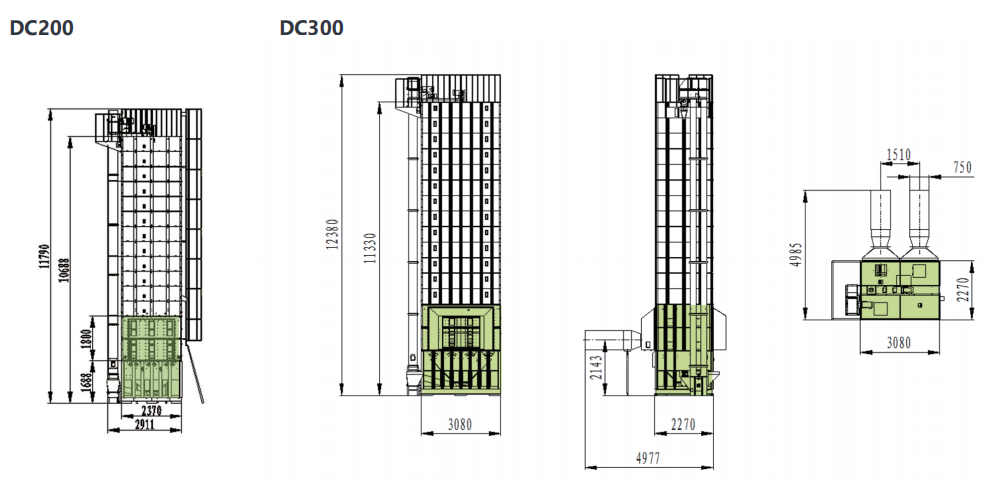

Product Size
Product Parameters
|
model |
unit |
5HXG-20W |
5HXG-30W |
|
|
overall dimensions (length × wide × High) |
mm |
2380×2260×10688 |
3090×2260×11330 |
|
|
structural style |
/ |
batch circulation dryer |
batch circulation dryer |
|
|
consumption |
kcal. |
240000 |
350000 |
|
|
source |
V/Hz |
380/50 |
380/50 |
|
|
required power |
kw |
11.57 |
16.57 |
|
|
safety devices |
/ |
Air pressure switch, hot air temperature sensor, abnormal overheating switch, thermal relay, circuit breaker protector, and full grain alarm switch |
||
|
effective volume |
m³ |
36.77 |
53.9 |
|
|
performance |
feed time |
min |
60 |
60 |
|
|
discharge time |
min |
60 |
60 |
|
|
precipitation rate |
%/h |
0.5-1.2 |
0.5-1.2 |
Note: The performance and precipitation rate listed in the above table are reference values, and the actual values will vary due to the external air temperature, relative humidity, drying type, hot air temperature and moisture content before and after drying.
