Features

Power

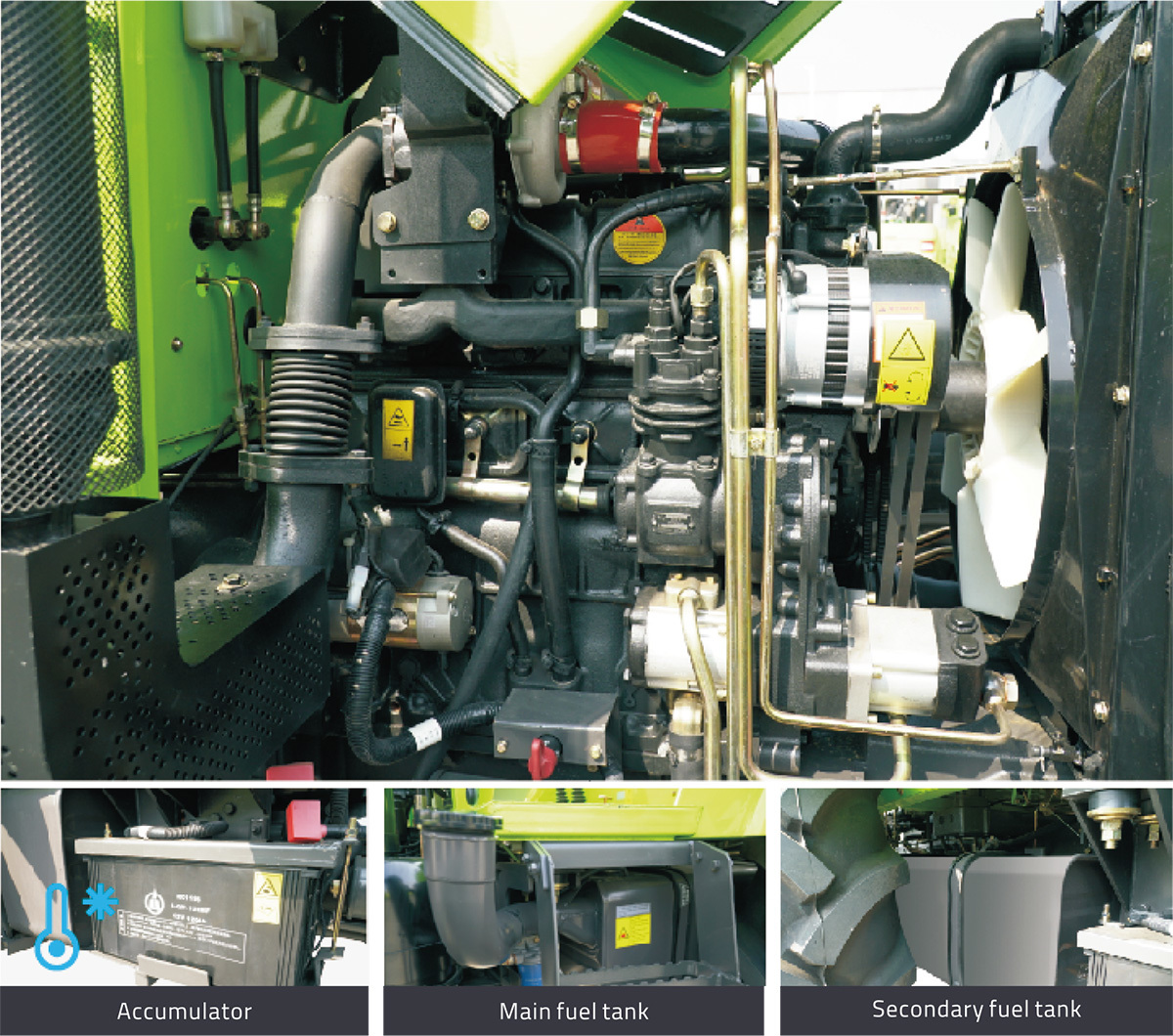

● RC series tractors are available in 80/90/110 horsepower bands,of which 110 horsepower is equipped with a turbocharged engine,which is powerful and better adapted to the operating environment in high altitude areas than naturally aspirated engines.
● The National ll emission engine is economical andenergy-saving with low failure rate,and it is equipped with Bosch electronically controlled injection system to ensure the maximum fuelefficiency.
● Dual fuel tank design, to meet the whole day continuous operation，effectively extend theoperating time.
● Equipped with high power battery, low temperature battery performance degradation, can ensure that under the low temperature working environment, you can also start the motor and make the engine ignition normally.

Cooling System

Reliable hydraulic & thermal systems

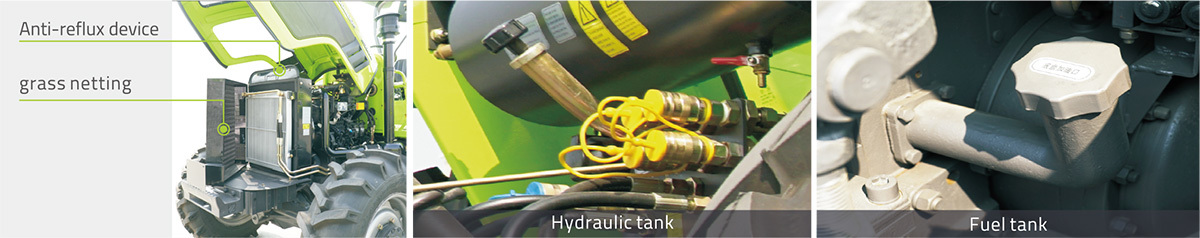

● The radiator is equipped with a large grass mesh coverto extend the cleaning cycle of the cooling system.
● The radiator is equipped with an anti-hot air reflux device to increase the reliability of heat dissipation, and the high-efficiency heat pipes in the core further ensure better heat dissipation.
● The chassis system and hydraulic working device are independent of olil, there are two independent hydraulic oilfilling ports, which can ensure that the hydraulic oil is cleaner, increase the use cycle of the hydraulic oil, and also increase theability of the hydraulic system to dissipate heat.

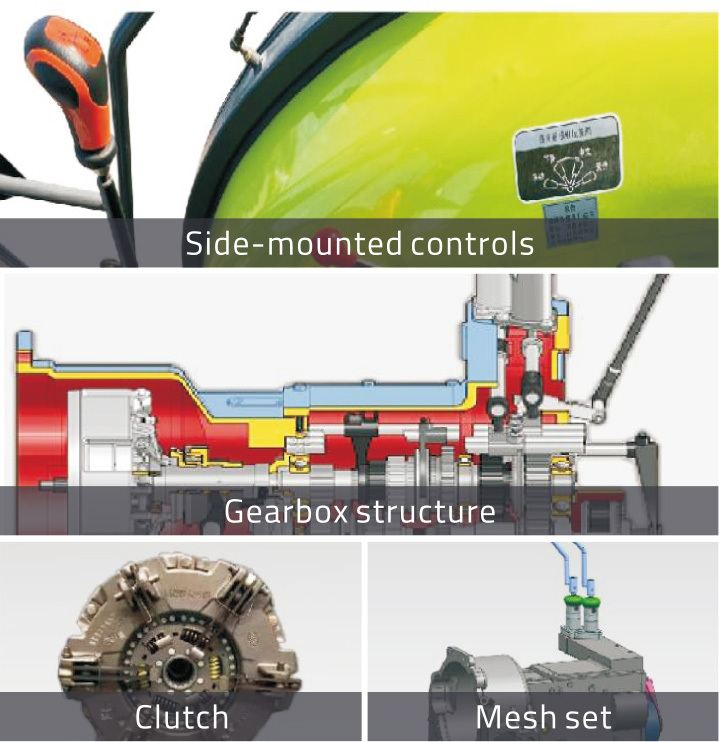

Transmission system

16F+8R engagement sleeve gearshift
The side-mounted gearshift is placed on the driver's right hand side, making it easy to manoeuvre and allowing the driver to concentrate more on thedriving operation;The transmission is light and flexible to ensure the best driving experience.

Primary and secondary gearboxes
The forward speed range is 1.57-33.39km/h, which meets the user's need to switch to the best operating speed under different working conditions.

Double acting clutch
Dry, independently operated double-acting clutch enables independent operation of travelling system and PTO, with high working reliability.

Working Structure

Power output
PTO speed of 540/100or/min

Segmented PTO output shaft for quick switching between 6(standard) and 8 splines and easy replacement in case of damage.

Hydraulic output
Two sets of hydraulic output valve ports are equipped as standard to meet the operational needs of various agricultural implements such as folding harrow, turning plough, etc., with wide adaptability;
The flow rate of single hydraulic output can reach 46L/min, which is suitable for the demand of hydraulic output of various agricultural implements.

Suspension system
RC series tractor adopts Class ll ear-mounted three-point suspension device to hook up with farm implements, which meets the position adjustment and floating control.

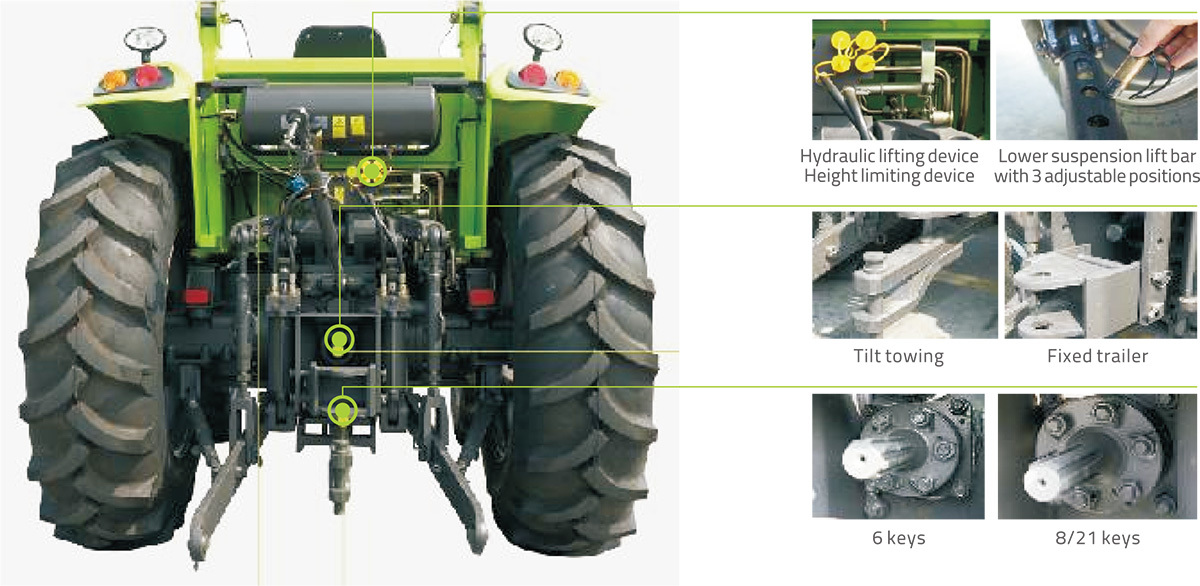

Tow hitch
Fixed, rotating towing and pendulum towing are optional, fixed towing height is adjustable in multiple levels, which can work with a variety of agricultural implements, and optional quick hitch device makes it easier and more convenient to hitch implements.

Lifting system
Separate hydrauliclifting system,equipped with two double-acting cylinders,lifting force ≥ 22kN, the driver can adjust the height of the suspension lifting lever by adjusting the operating handle,the hydraulic lifting device height limiting device,when the lower lever is lifted to the highest level, it can push thelimiting valve, and the lifting handle will be restricted andcan not belifted again.

Cabin

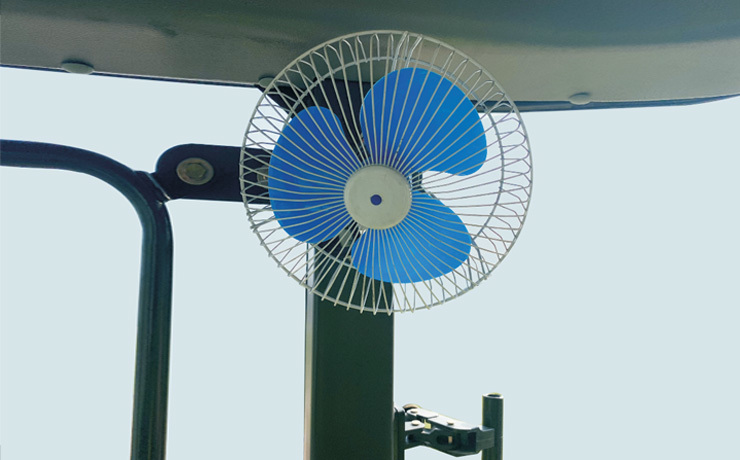

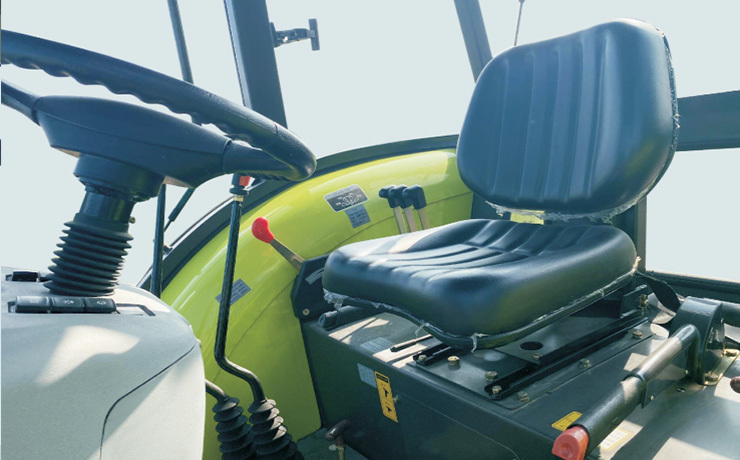

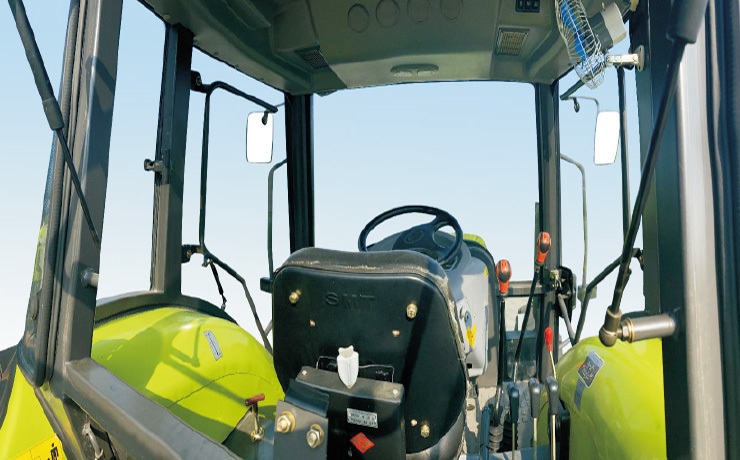

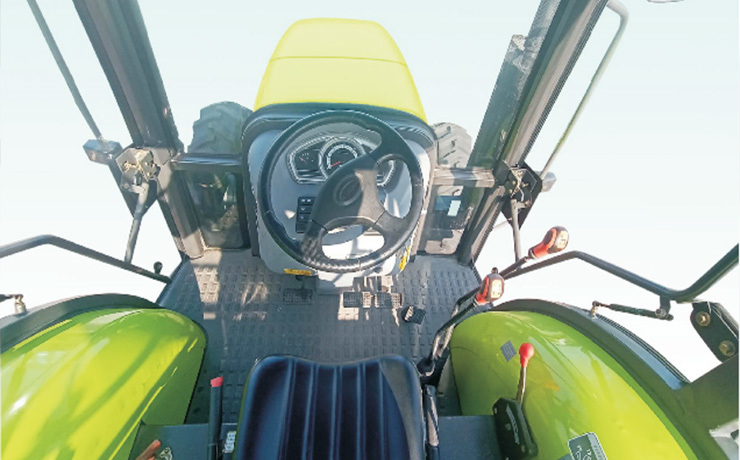

(For RC804,RC1104) Six-pillar air-conditioned cab, more robust cab.	Optional small fan	Mechanical suspension seat, no fatigue for long time operation

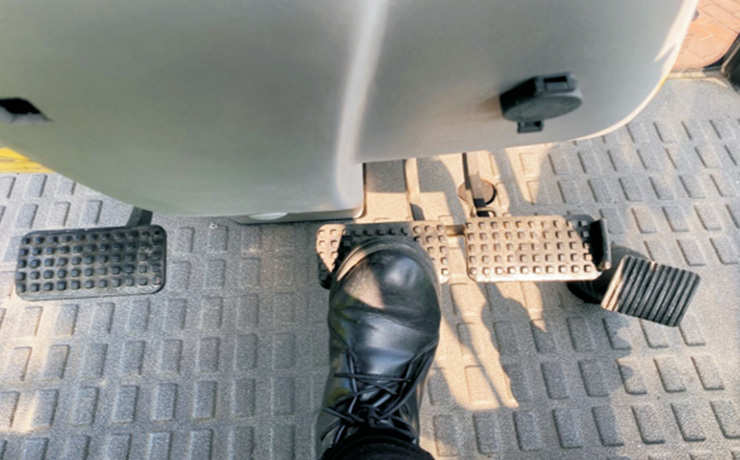

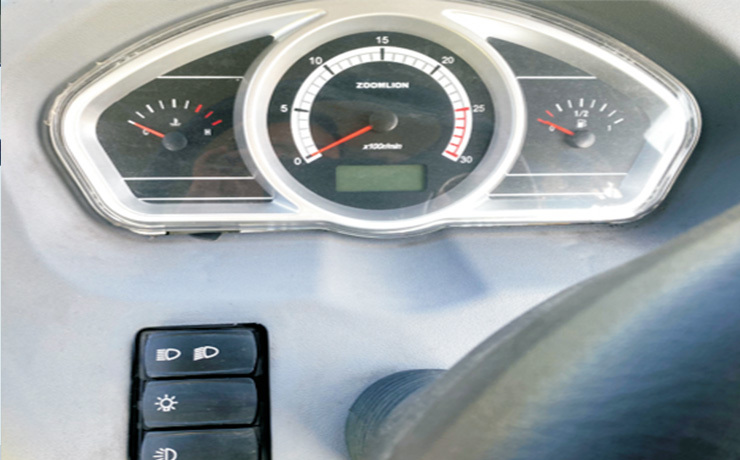

Display of operating conditions	Spacious interior for the driver's body to stretch out	Large clutch and brake pedal area

Product Parameters

Type	RC904/RC1104
Engine
Namber of cylinders/intake method	4-cylinder/turbocharged
Emission	National ll
Calibrated power/speed	66.2/81kw/2300RPM
Fuel consumption rate	≤262
Fuel tank capacity	150
Dispiacement	4.58L / 4.75L
Clutch
Type	shilt sleeve
Gears	16F+8R
Hydraulic system
Type	Distributed
Number of output valves(group)	2
Single hydraulic output flow	46L/min
Hydraulic Lifter
Tillage depth control mode	Position,Float
Maximum lift force (610 mm after the end)	≥16kN
Suspension
Type and category	Three-point rear suspension, category ll
PTO
PTO output Efficiency	56.3kW
Rotation Speed	540/1000rpm
Type	6-tooth rectangular spline shaft (shaft diameter 35)

Type	RC904/RC1104
Parameter

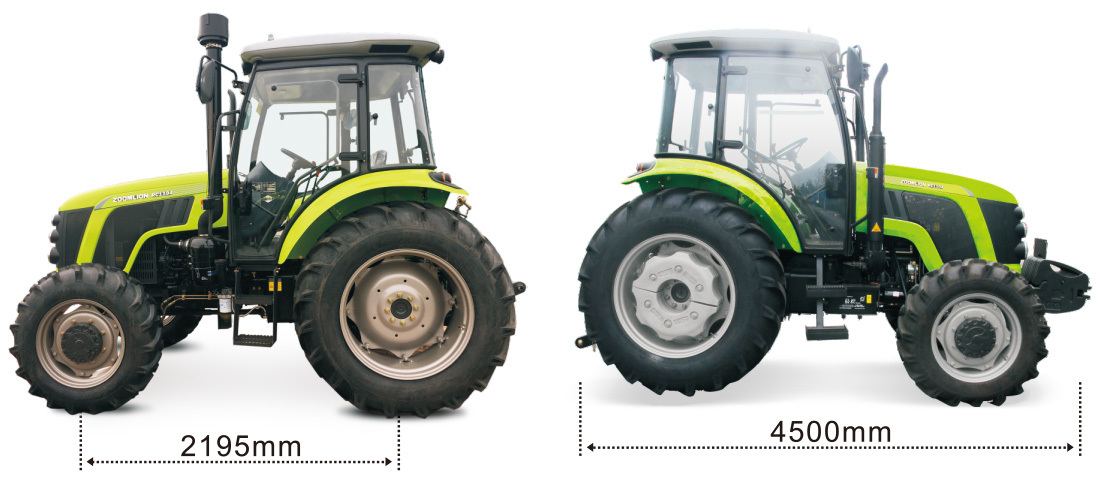

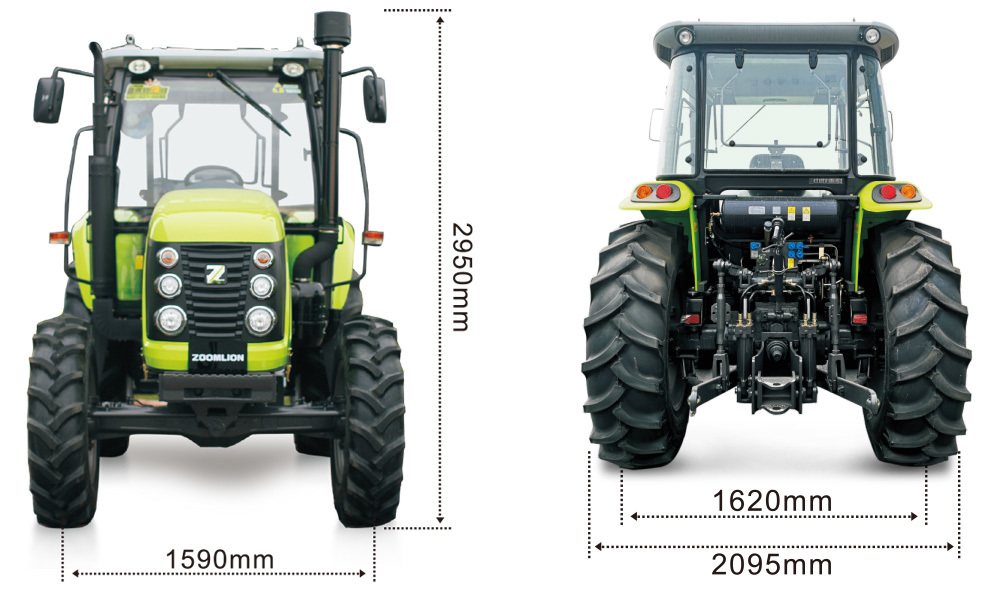

LxWxH	4390×2095×2950mm/4500×2095×2950mm
Wheelbase	2195mm
Minimum ground clearance	435mm
Mass
Minimum mass	4040kg
Tyre
Tyre size (Front/Rear)	12.44-24/16.9-34
Front tyre clearance	1590mm
Rear tyre clearance	1620mm
Counterweight
Front Counterweight	11x20kg
Rear Counterweight	one layer160kg/twolayer320kg
Turing
Minimum Turing Radius	3.9士0.3m
Turing Angle	45°
Rest
Maximum lift force	25.4kN/29.4kN
Safety cage/Cabin	Warm/air condition cabin
Air brake	Standard
Clutch type	Dry and independent dual
Brake type	Single wet plate
