GlobalRS Series Tractor
- Product comparison
Features

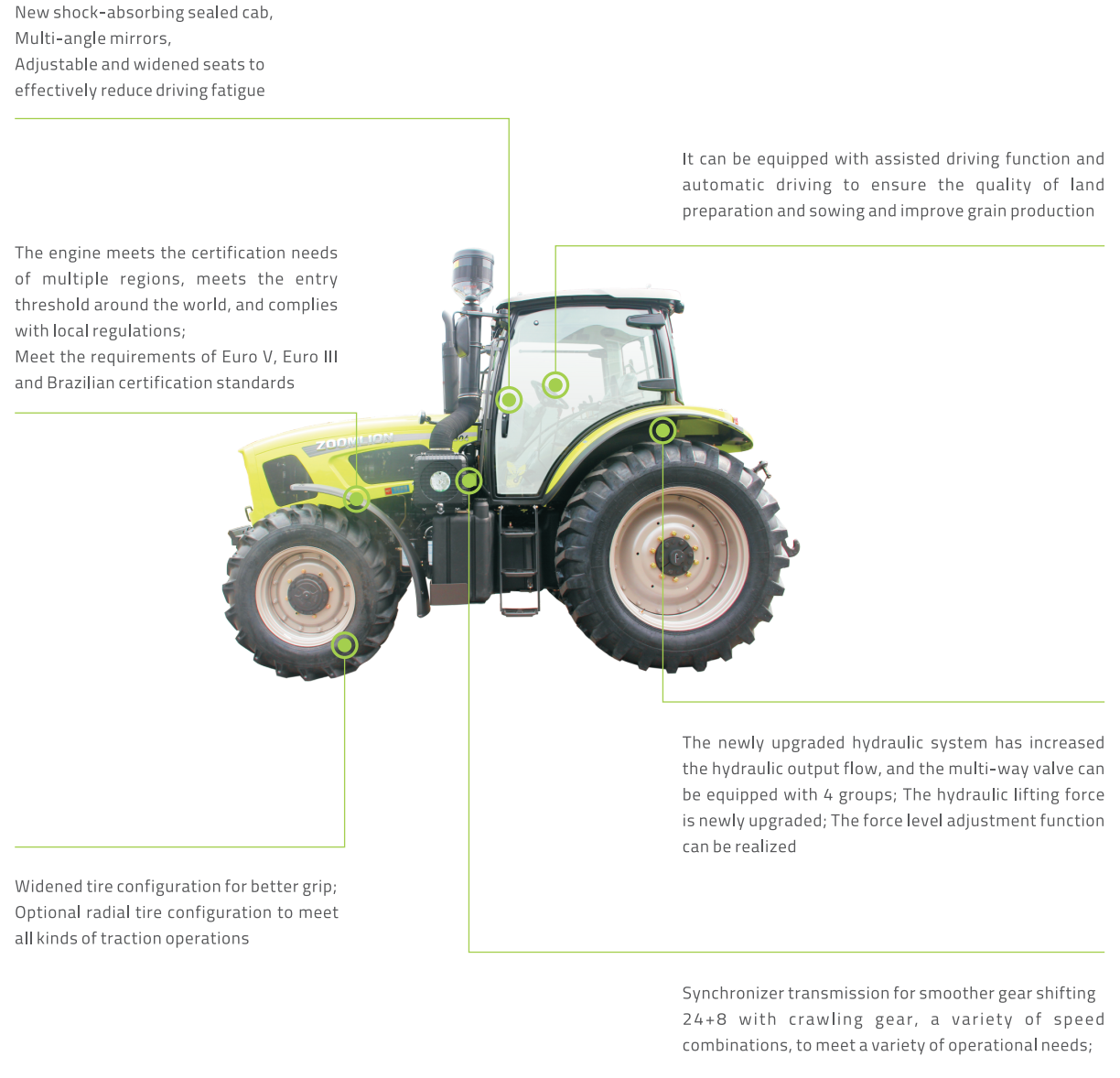

New upgrade - more efficient, more reliableand more comfortable
ln order to better meet the needs of customers,Zoomlionhas made a number of upgrades to the four modules of RSseries tractor，power system, transmission system, caband working device, and the products are more efficientand reliable,with humanized design concept,moreconvenient operation and more comfortable driving.
RS Series Tractor - New Upgrade Perfect Quality,YourFirst Choice!
Newly upgraded-more efficient,reliable,and comfortable
RS series—2025 New upgrades
Power system
Reliable power can be fertile "wild"thousands of miles

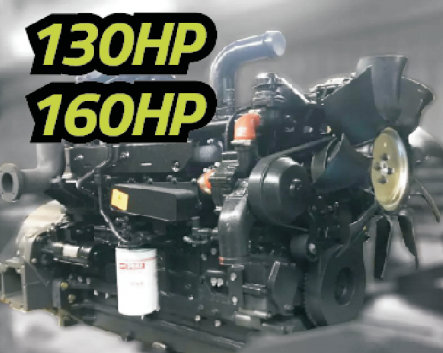

▪ Equipped with Yuchai 6]six-cylinder high-pressure common rail engine,it meets the national ll emission standard and has a displacement of 6.5L;
▪ Advanced turbocharging and in-cylinder direct injection technology,combined with Bosch electronically controlled fuel injection system, accurately control the fuel supply of the engine under various working conditions,and respond quickly, while ensuring better fuel economy,it can also have better power output,more fuel efficient,and better economy.

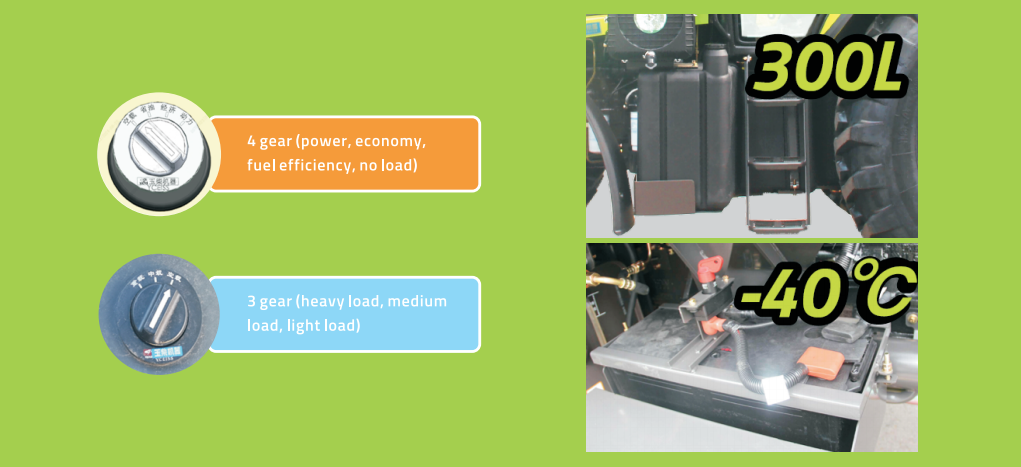

▪ The capacity of the fuel tank is increased to 300L, which ensures continuous operation for more than 12 hours,reduces the number of refueling,and increases the effective operation time.
▪ The newly upgraded 180MF capacity low-temperature large battery can be easily started at alow temperature of-40°℃
▪ Optimize the multi-power switch,increase the no-load mode,increase the speed of transition operation,and adapt to more working conditions for different loads,improving fuel economy.
Reliable hydraulic system&cooling
The engine and chassis hydraulic oil each have separate radiators for better heat dissipation.
▪ The hydraulic oil tank is increased to 70L,and the heat dissipation capacity is improved,which can better control the oil temperature.
The chassis oil and hydraulic system oil have been upgraded from N10OD to three-purpose oil,which greatly improves the reliability.

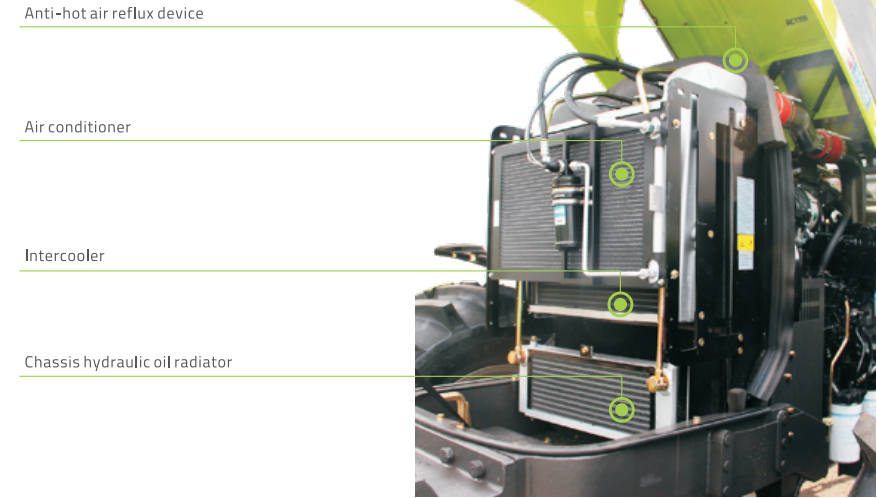

▪ The heat dissipation area of the radiator and intercooler is optimized, the heat dissipation area of the radiator is 59.5 square meters,and the heat dissipation area of the intercooler is 15.8 square meters to ensure the maximum heat dissipation effect.
▪ The water tank adopts high-efficiency heat pipes,the heat dissipation core body has been optimized and thinned again,and the displacement of the heat dissipation pump has been increased to 12ml/r,and the heat dissipation efficiency is higher. Each flap can be quickly removed and assembled individually,making it easier to clean up debris.
▪ The heat sink has an anti-hot air reflux device toincrease the reliability of heat dissipation,and the high-efficiency heat pipe in the core can further ensure better heat dissipation.

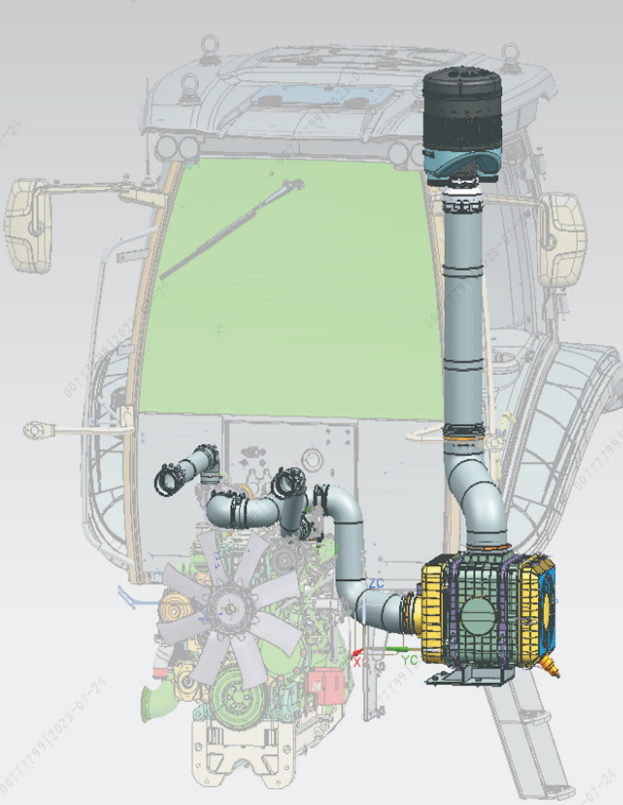

Intake and exhaust systems
 |
The precleaner adopts a cyclone tube structure,which can filter more than 95%of the sand and dust,and reduce the frequency of air filter maintenance and cleaning.
The air filter adopts desert storm filter,the filtration efficiency can reach 99.50%,and the filtration effect is better;The transverse side- mounted structure is easy to maintain and can keep the air filter for 320 hours without cleaning.
The muffler optimizes the structure, eliminates whistles,howls and other noises,and reduces the overall noise value by3 decibels. |
Transmission system
16F+8R gear shift

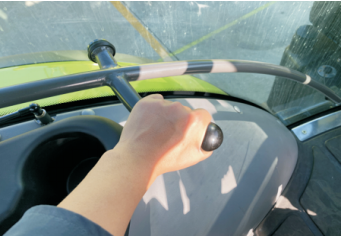

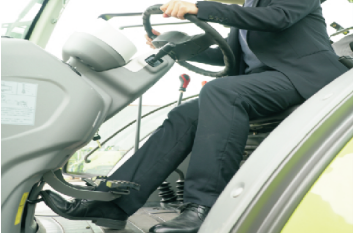

Side-mounted controlfor easy maneuvering,and the gearbox gearislight and flexible to ensure the best driving experience.

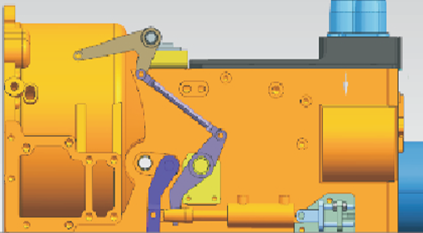

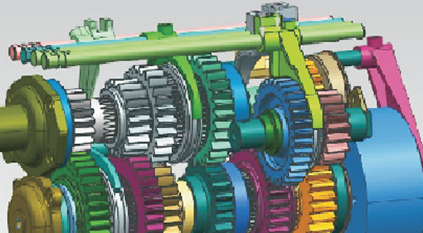

Main and auxiliary gearboxes

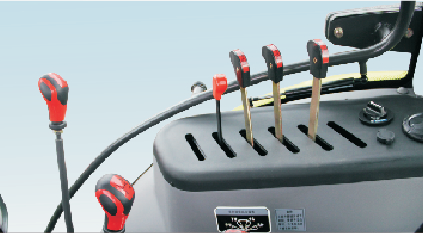

The main and auxiliary shifts are operated by 2 joysticks respectively,and the standard variable box realizes 16 front gears, 8 reverse gears,and the forward speed range is 1.49-30.07km/h,in addition,in order to meet the needs of users for slow operation,we have also launched a new gearbox of 24F+8R,the speed range is 0.41-30.24,and the gear can be selected according to the needs of the operating speed.
Double-acting clutch
The dry-type,independently operated double-acting clutch can realize the independent operation of the walking system and the PTO,and the working reliability is high;
The auxiliary clutch adds torsional shock absorption function to effectively avoid the problem of abnormal noise during operation or gear shifting;

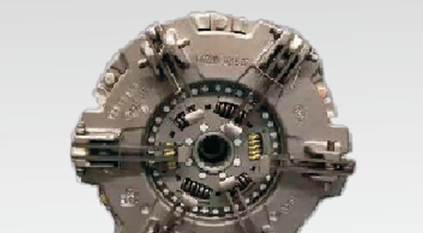

The German LUK 14-inch double-acting clutch is made of imported powder metallurgy friction material,with large torque reserve,asafety factor of upto2.41,andahydraulic clutch to help control,which is lighter,more comfortable and hasalonger life.

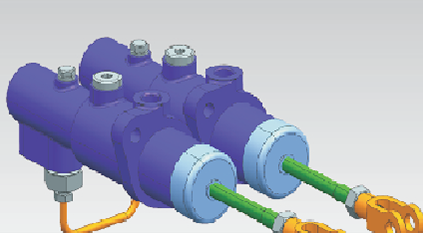

Braking system
With self-pressurized brake pump,the braking force is light,and the machine can be braked with one foot,the braking effect is more stable and reliable,and the safety factor of the whole machine is higher.

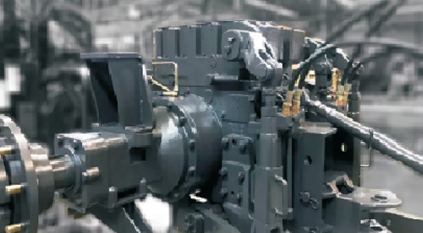

Rear axle drive
The rear axle transmission housing is strengthened and enlarged,and the transmission train gear is optimized at the same time,the gear module is increased,and the chassis bearing capacity is improved.
 |
|
 |
| Side-mounted controls | Double-acting clutch | Self-pressurized brake cylinder |
 |
 |
 |
| Main and auxiliary gearbox structure | Hydraulically assisted handling | Rear axis |
Transmission system
|
High-strength chassis The chassis material is made of high-strength steel(ductile iron material), with high tensile strength and 30%performance improvement. ▪ Reinforced front axle Strengthened heavy-duty front axle,450mm ground clearance,not easy to scratch crops during field operation management. ▪ Rear wheel track The standard front and rear wheel base is 1800/1850mm,and the rear wheel track can be infinitely adjustable,which can meet the operation needs of different agronomic conditions in various regions. ▪ Tyre Standard 14.9-26/18.4-38 dry tires,40°steering angle,minimum 5.8m steering radius,full hydraulic power steering,small steering force and small turning radius,easy steering,priority valve to ensure safe operation. ▪ Lubrication system Forced cooling lubrication effectively ensures the temperature of the transmission system,ensures the normal lubrication of key parts such as gears and bearings,ensures the service life of seals and lubricating oil, and greatly improves the reliability of the drive train. The inlet and return pipes of the chassis radiator are thickened hoses to reduce system resistance and reduce the impact of secondary heating of the engine. |
|
Upgraded Luxury Cabin

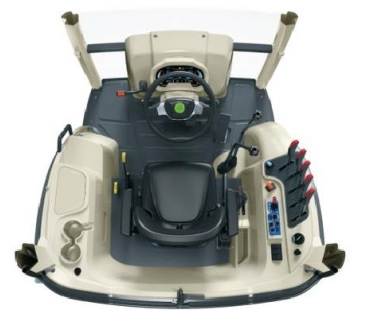

▪ The new design of the cab interior trim shape,combined with the human-machine effect to rearrange the cab control.
▪ The front four and rear work lights are standard to improve the safety of night operation.
Comprehensively improve the sound insulation,noise reduction and sealing performance of the cab,and the noise next to the ears≤ 82dB(A).
▪ The cab air conditioner is overhead designed,and the cooling effect is better.
▪ The cab increases the positive pressure function,and the air pressure of the entire cab is slightly higher than the outside air pressure,so as to ensure that the air entering the cab will be filtered by the fiter to ensure the health of the operator.
▪ The LCD screen has been upgraded from 4.3 inches to 7inches,which is fullof science and technology. Added functions such as maintenance reminder and speed display.
Standard 1-channel high-definition 1080p reversing visual image,real- time display of rear vehicle conditions.
The resolution of the LCD screen has been increased from 720*720 to 1280*800,and the display is clearer.
Add multiple access covers to facilitate maintenance and overhaul.
▪ Equipped with mobile phone charging USB interface,teacup holder, cigarette lighter,storage box,storage net pocket,complete configuration, more storage space.
▪ The main driver's mechanical suspension shock absorbing seat can realize 3 levels of height adjustment,the seat back angle is adjustable,with a reserved auxiliary seat mounting interface,and an optional auxiliary seat.
 |
|
 |
|
Differential lock/4WD/PTO control lever |
Multi-function dashboard |
Brakes with mechanical synchronization |
Mechanism
|

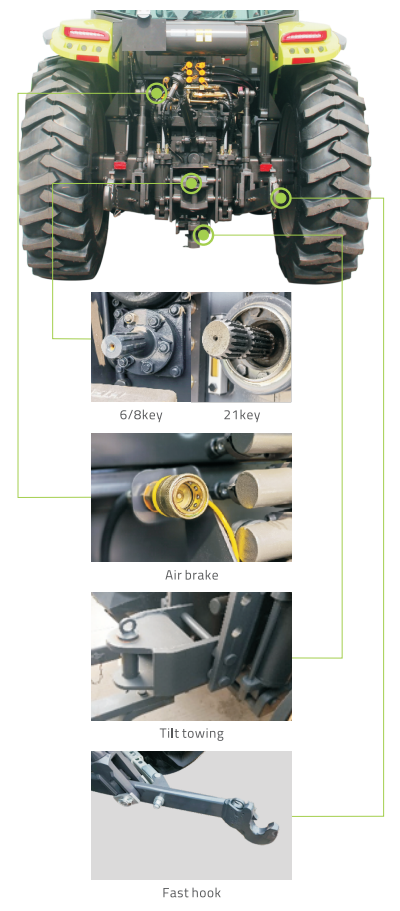

Power take-off The PTO speed is 540/1000r/min Segmented PTO output shaft for quick switching of 6(standard), 8and 21 splines and easy replacement in case of damage. ▪ Hydraulic output Itis equipped with three sets of hydraulic output as standard,and the single-channel hydraulic output flow rate can reach 80L/min, and the output valve is increased with the function of clamping, which can bring continuous hydraulic output to meet the needs of hydraulic output of large-scale composite agricultural machinery. ▪ Towing towing device Swivel tow,with pendulum tow,hook quick-hook coupling and type 2 connector,can work with a variety of agricultural machinery and tools,making it easier and more convenient to hook up tools. ▪ Suspension system The rear typeIll three-point suspension device is used to meet the position adjustment and height adjustment,which can be matched with a variety of composite agricultural machinery. Hydraulic lifting device(standard) Split hydraulic lifting system,equipped with two double-acting cylinders,lifting force≥40KN,the driver can adjust the height of the suspension lifting rod by adjusting the operating handle,and the depth of strong pressure into the soil can be adjusted manually to ensure the consistency of the depth of entering the soil;Hydraulic lifting device height limiting device,when the lower lifting rod is lifted to the highest,the limiting seat can be pushed,and the lifting handle will be restricted and can no longer carry out lifting operation. ▪ Hydraulic lifting device(optional) Provide the option of comprehensive adjustment of force position(with external electronic controlifting),semi-spli lifting system,can adjust the height of the suspension rod and the traction force of the control system at the same time,and the adjustment of the traction force can be operated according to the size of the tillage soil resistance designed by the driver, and the plough can be automatically ifted when the tillage resistance is large,and the tillage depth can be automatically increased when the tillage resistance is reduced,and the frequent operation of the control handle does not need to be carried out by the driver,which greatly reduces the labor intensity of the driver. |
|
Body design abd maintenance
▪The new Zoomlion third-generation bodyis adopted,the shape is more beautiful,and the large area of heat dissipation grill in front and rear of the hood can greatly improve the airintake and heat dissipation speed of the radiator to ensure the normal operation of the machine.
▪The hood is very wrapping to minimize wear and tear on internal components,and if maintenanceis required,the front hood can be lifted and secured,so that the engine,radiator and other elements are at your fingertips,saving you maintenance time.

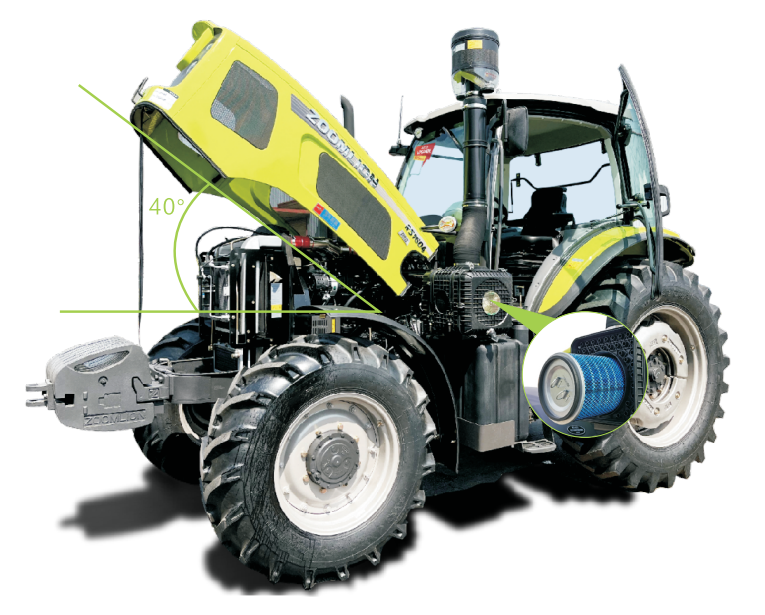

▪ The opening angle of the hood can be raised up to 40°to avoid the problem that some untouchable dead corners cannot be maintained,and the components that often need to be replaced or maintained,such as oil fiters,are arranged in the closest place to the periphery.
▪The precleaner adopts a cyclone tube structure to improve the filtration accuracy and reduce the frequency of air filter maintenance and cleaning.
▪The air fiter adopts desert storm filter,which has good filtration effect,reduces the frequency of cleaning,and better protects the engine.

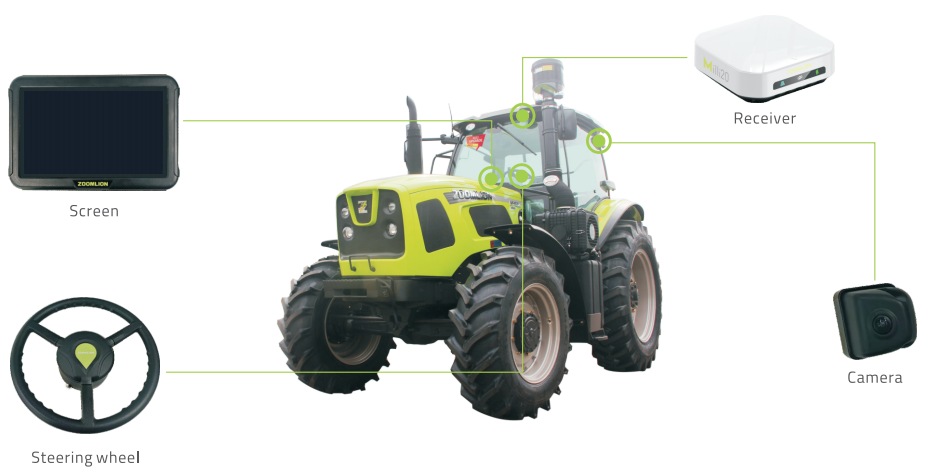

Optional Assisted Drive
|
▪ Multi-dimensional information reception Signals can be provided by five satellites,GPS,GLONASS, Galileo,Beidou and QZSS,and the steering function can be achieved with centimeter-level accuracy.
▪ GNSS+INS terrain compensation technology High accuracy is maintained even in complex environmental terrain.Excellent self-propelled performance n ditching, planting and harvesting applications.
▪ Fully functional and easy to maintain It has the function of automatic fault diagnosis,and can call remote service with one click; Itis equipped with curves,circles,rake curves,90°lines and other types of navigation lines; It can be displayed in all major languages in the world,and can be used for mu measurementand trajectory coverage.
▪ Waterproof and dustproof,durable IP65 dustproof and waterproof components are used to adapt to the complex environment of agricultural operations. |
|
Details
 |
|
 |
 |
|

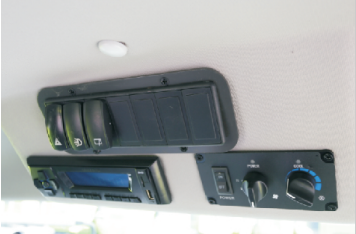

Equipped with radio &USB port |

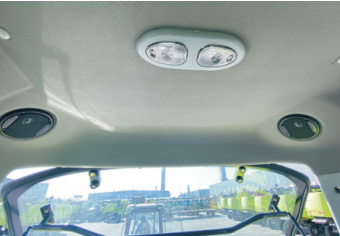

Equipped with stereo sound on both sides |

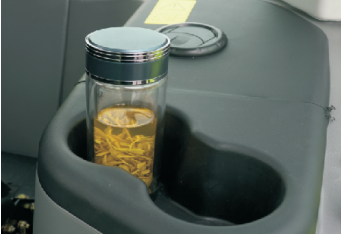

Equipped with storage space such as water bottleslots |

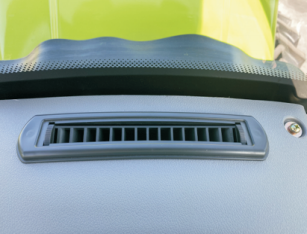

Front windshield air vent for effective defrosting and defogging |
 |
|
 |
 |
|
With the addition of leather, the texture of the interior has been greatly improved |
The door handle makes it easy for the driver to close the door after sitting down |

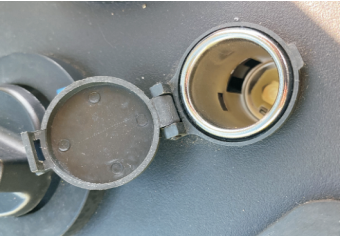

Equipped with a charging port device |

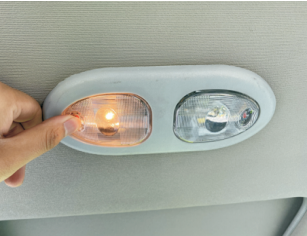

The push-to-light above the cabis easy to turn on |
 |
 |
 |
 |
|

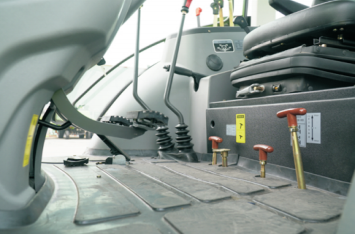

The bottom plate of the cab and the bottom of thelever havea good sealing effect |

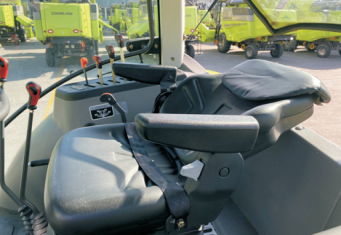

Suspension seat with adjustable height,load capacity and headrest angle |

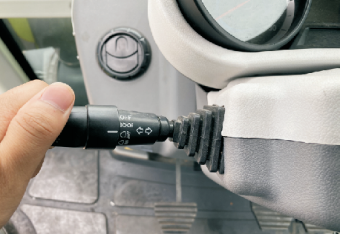

Light combination switch |

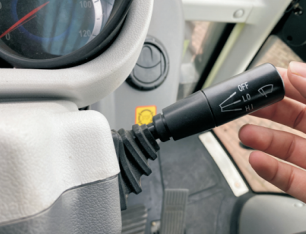

Wiper combination switch |
 |
 |
 |
 |
|
The steering wheel distance is adjustable |

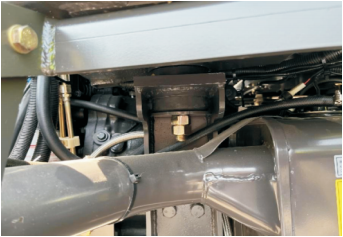

Trelleborg shock-absorbing structure |

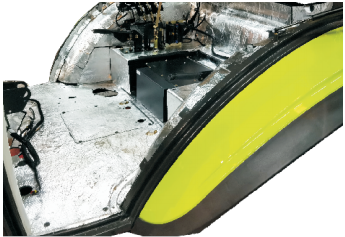

Install soundproof cotton to reduce noise in the car |

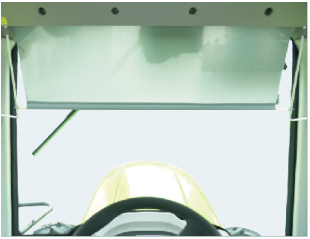

Sun blinds,effectively blocking direct sunlight |
Product Parameters
| Engine | ||
| Number of cylinders/ intake method | 6-cylinder/ turbocharged | |
| Emission | National III | |
| Calibrated power/ speed | 95.6/117.6kW2300rpm | |
| Fuel consumption rate | ≤250g/kW. h | |
| Fuel tank capacity | 300L | |
| Displacement | 6.5L | |
| Clutch | ||
| Type | Gear shift with the meshing sleeve |
Synchronizer shifts (optional) |
| Gears | 16F+8R | 24F+8R(optional) |
| hydraulic system | ||
| Type | Distributed | Half distributed(optional) |
| Number of output valves | 3group | |
| Single hydraulic output flow | 80L/ min | |
| Hydraulic Lifter | ||
| Tillage depth control mode | position, height, strong pressure |
Comprehensive adjustment of force level(optional) |
| Maximum lift force(610mm after the end) | ≥40kN | |
| Suspension | ||
| Type and category | Three-point rear suspension, category III | |
| PTO | ||
| PTO output Efficiency | 85/104kW | |
| Rotation Speed | 540/1000rpm | |
| Type | 6keys, optional8/21keys(shaft diameter 35) | |
| Type | RS1304/RS1604 |
| Parameter | |

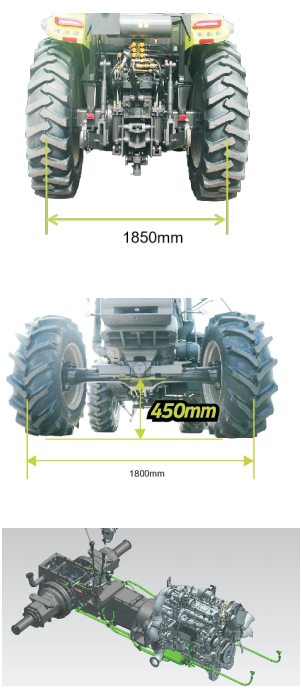

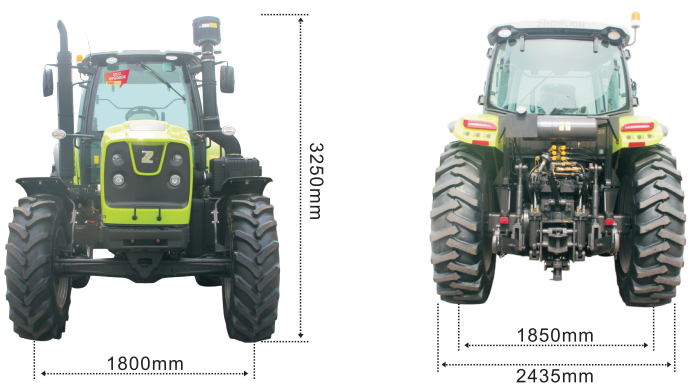

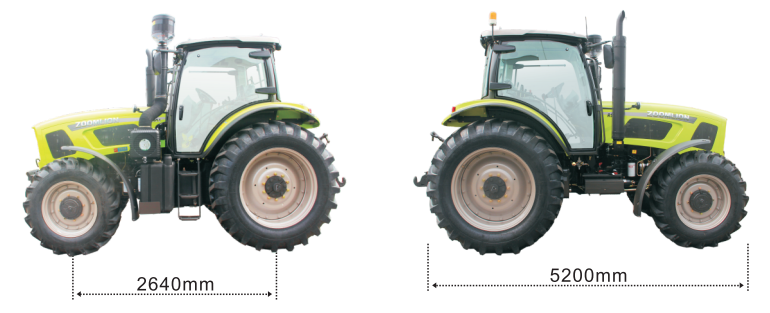

| L×W×H | 5200×2435×3250mm |
| Wheelbase | 2640mm |
| Minimum ground clearance | 450mm |
| Mass | |
| Minimum mass | 5810kg |
| Tyre | |
| Tyre size(Front/ Rear) | 14.9-26/18.4-38/optional13.6-24/23.1-26 |
| Front t yre clearance | 1800mm |
| Rear t yre clearance | 1850mm |
| Counterweight | |
| Front Counterweight | 13×40kg |
| Rear Counterweight | 2layers 480kg |
| Turing | |
| Minimum Turing Radius | 5.8m |
| Turing Angle | 40° |
| Rest | |
| Maximum lift force | 51kN |
| Safety cage/ Cabin | air condition cabin |
| Air brake | none |
| Clutch type | Dry and independent dual |
| Brake type | wet plate(The number of friction plates is 1, and the outer diameter is 344mm) |
