WHEEL TRACTOR This product is a power shift model in the P series 160-200horsepower range, combining high efficiency, durability, com-fort, and ease of operation to meet the needs of end custom- ers for both overall comfort and economy。

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

TECHNICAL SPECIFICATION

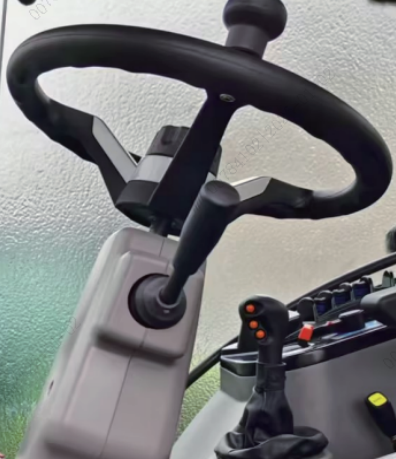

01.Power shuttle shift+interval power shift

▪ Equipped with electro-hydraulic control power revers- ing function, the shuttle style shift control lever on the left side of the steering wheel allows for the selection o driving direction without using the clutch;

▪ Pushing the shift lever can achieve 4 mechanical gear shifts, and using the orange shift button can perform 6 electro-hydraulic controlled power shifts;

▪ The combination of the two makes shifting more convenient and easy.

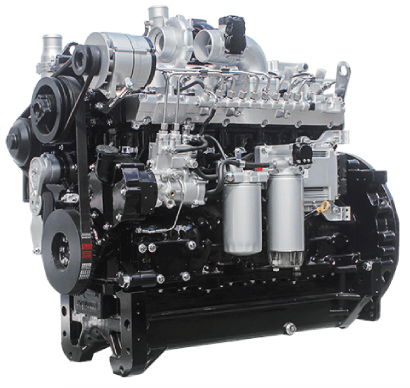

02.Famous engine

▪ Adopting a specialized engine for agricultural machin-ery, paired with a six cylinder high-pressure common rail system BOSCH fuel system, compliant with National lll emission standards:

▪ The torque reserve coefficient is greater than 28%, the displacement reaches 6.8L,and the weight is guaranteed Efficiency of homework loading.

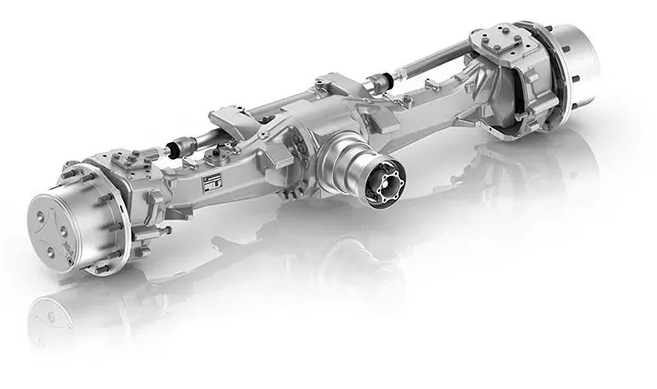

03.ZF front axle

▪ Possess high maneuverability, high traction capability, and high maneuverability:

▪ The large transmission ratio of planetary transmission ensures optimal efficiency;

▪ The inclined axis design and high allowable axle load create a ground clearance of 500mm, It is not easy to scratch crops during field operation management;

▪ A steering angle of up to 55 ° provides high-level maneuverability with minimal turning The bending radius is 6m, allowing you to turn around without worry.

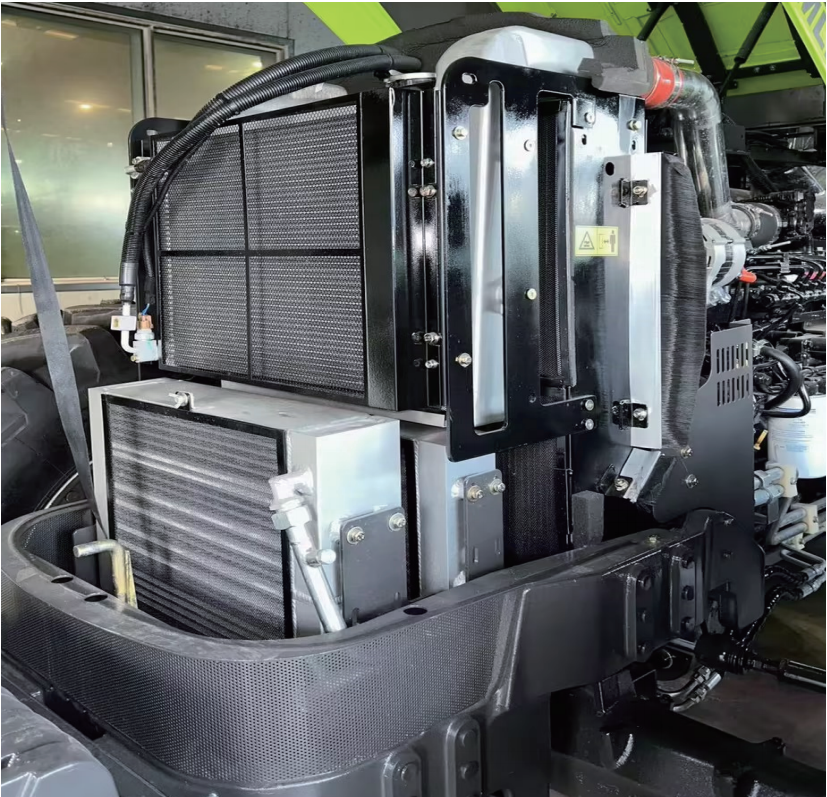

04.Heat dissipation&cooling system

▪ Aluminum material design for the intercooler in the watertank,which is more corrosion-resistant and has a longservice life;

▪ The heat dissipation area of the radiator in the watertank reaches 51 square meters,and the heat dissipationarea of the intercooler reaches 15.8 square meters, capableof meeting the operational needs of extreme high tempera-ture environments below 48 ℃.

Fearless of high temperatures and strongdurability

▪ There is an anti backflow sealing device behind the fanto increase the reliability of heat dissipation;

▪ Equipped with debris isolation device, effectively block-ing dust and debris from entering the machine;

▪ The chassis system and hydraulic working device dissi-pate heat independently;

▪ The hood has a large opening, making it easy to cleanand maintain the cooling system.

Easy to clean, reliable heat dissipation

▪ Refrigeration faults can be easily resolved by displayingpressure switch issues or compressor suction issues onthe display screen;

▪ High displacement compressor,thickened condensercore, double O-ring structure air conditioning pipe joint, lowevaporation circuit impedance, strong refrigeration effect.

Repair easily fast cooling

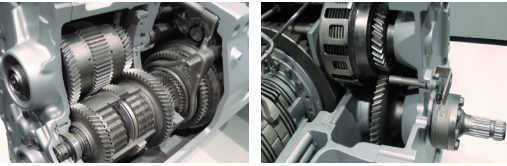

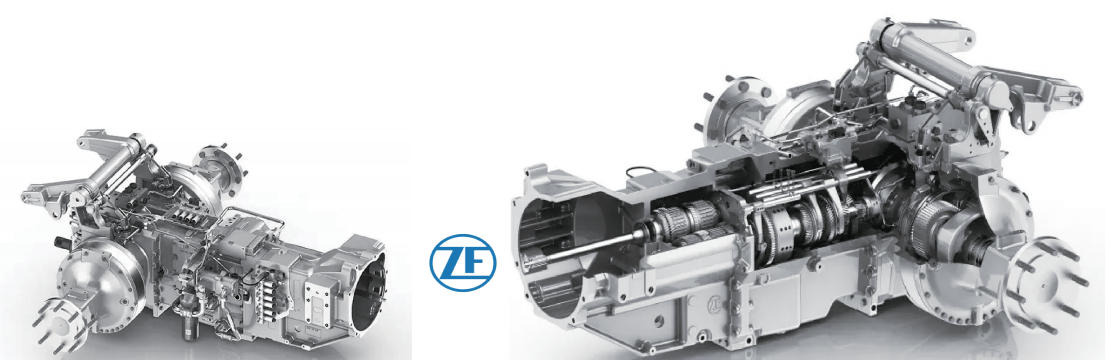

05.ZF variable box&rear axle assembly

▪ 48F+24R high gear density, combined with the fast automatic shifting and durability of synchronous meshinggearbox, reduces the loss of transmitting engine power into active output, Adapt to various work conditions.

06.Clutch

▪ Wet multi disc clutch, integrated inside the gearbox;

▪ Electric hydraulic proportional valve controls power separation.

Combined with separation, it has a long service lifewithout impact

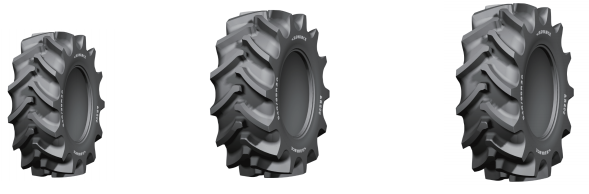

07.Radial tire

▪ The front and rearaxle wheelbase can be adjusted in multiple levels to meet various inter row operat-ing widths;

▪ Multiple sizes of tires are available for selection, suitable for various terrains.

Lower fuel consumption, lower soil compaction, and longer service life

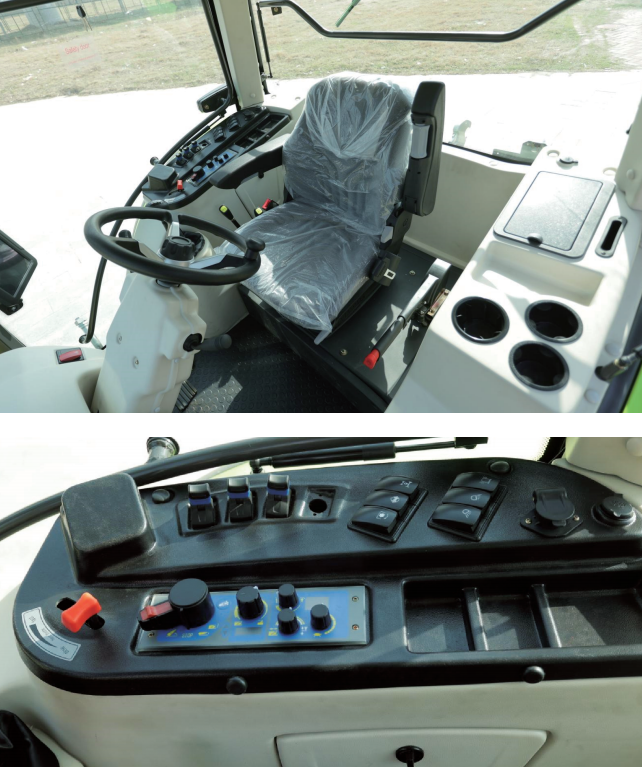

08.Luxury driver's cabin

▪ The seat is equipped with mechanical suspension shock absorbers and fabric seatcushions, which are adjustable in multiple dimensions.The driver can adjust the seatheight according to their own habits, Adjust the depth of the seat cushion, front to backdistance, etc;

▪ Equipped with front and rear shock absorption function and seat heating function,improving driving comfort;

▪ Equipped with indoor air conditioning for heating and cooling, the switch betweenheating and cooling supply can be completed with just one click, allowing you to befearless of cold and hot weather;

▪ Positive pressure cab, the surrounding air can only enter the car through the filterlocated in the left column of the cab, Effectively prevent external dust from entering.making your field work clean and refreshing;

▪ The front window is equipped with a mesh shaped sunshade, which has transparentand heat-insulating functions,and its position can be adjusted freely, providing you withcomfort Suitable driving and riding environment;

▪ Adjustable rear window, USB interface radio, cigarette lighter, ashtray, cup holder,storage box and other user-friendly featuresCustomized design makes your drivingexperience more convenient and comfortable.

09.Four wheel drive, differential lock, PTO output electro-hydraulic control

▪ The four-wheel drive function installed in the rear axle is electro-hydraulic controlWhen the handbrake or bilateral foot brake is applied,the system automatically turns onthe four-wheel drive,

▪ Enhance braking force,PTO output and differential lockfunction are also controlled byelectro-hydraulic, requiring only a light touch with fingertips to achieve the function.

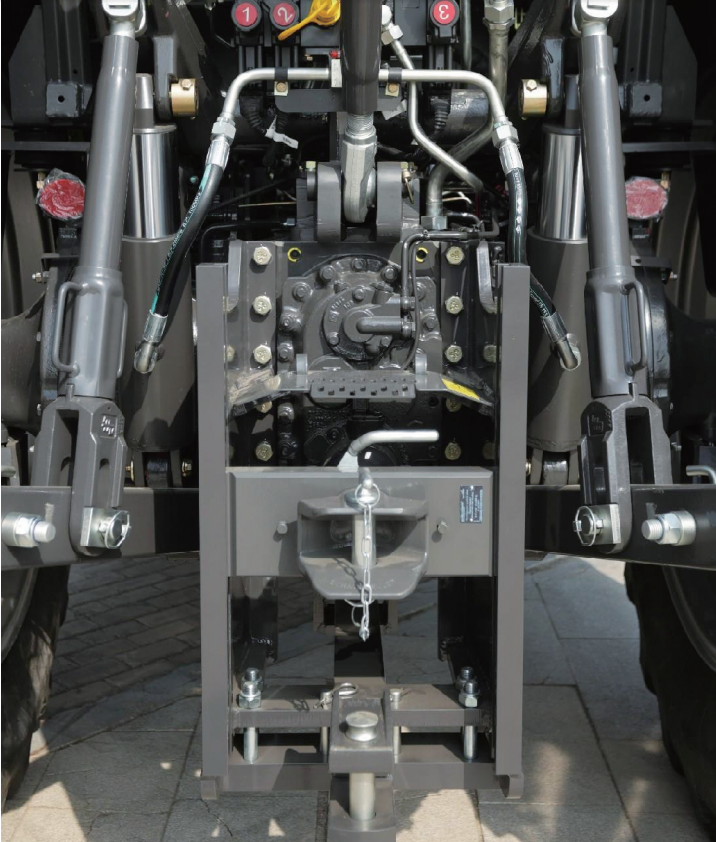

10.Traction trailer device

▪ Meet the functions of rotating trailer and swinging traction;Fixed trailer with multi-level adjustable height;

▪ lt can be paired with various agricultural machinery for work, making iteasier and more convenient to attach the machinery.

Rich in functions and easy to connect

11.Suspension system

▪ Adopting a rear mounted Class lll three-point suspension system,it can beoperated from the cab or on the ground;

▪ The design of the sliding groove at the end of the lifting rod is conducive tothe hanging of machinery;

▪ Manual adjustment of the lifting rod, which can simultaneously adjust thelength of two or one lifting rod;

▪ The manual adjustment of the upper connecting rod facilitates thepositioning of the machine and ensures that it is at a suitable angle with theground;

▪ The adjustment of the telescopic sleeve type lateral stabilizer can expandor reduce the distance between the lower suspension rods as needed.

Hang firmly, multiple adjustable positions

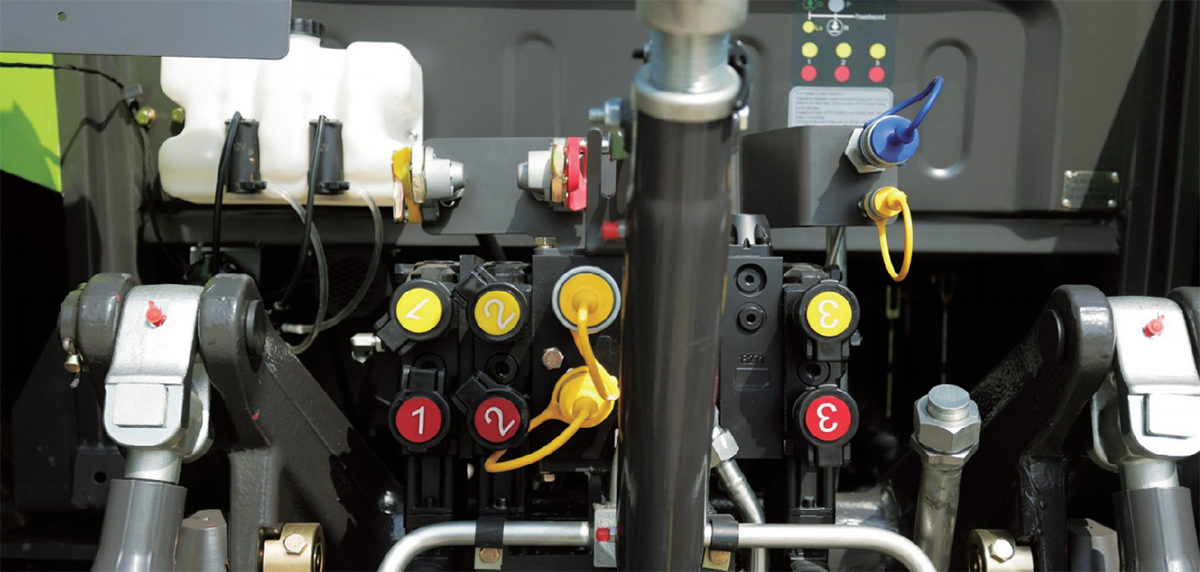

12.Remote control valve

▪ Load sensitive remote control valve and load sensitive variable plunger pumpbased on CAN bus control to create load Sensitive systems;

▪ The maximum output flow rate of a single valve is 10OL/Min;

▪ Automatically allocate flow according to the required flow of the executingagency;

▪ The flow rate and time of the four valves can be adjusted;

▪ One click start with thumb switch.

13.Power Beyond function

▪ Equipped with the Power Beyond function interface, agricultural machinery canbe directly obtained from the tractors hydraulic system Power and control signals;Maximum hydraulic output of 150L/Min;

▪ Equipped with a secondary hydraulic system load feedback oil port;Meet the traction and driving operations of large composite machinery.Super large hydraulic flow overcomes flow anxiety

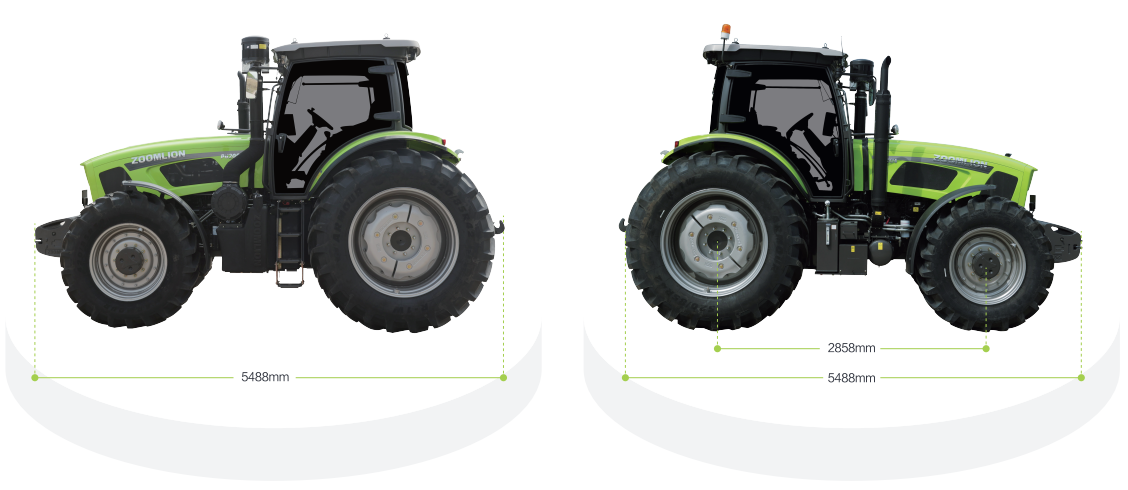

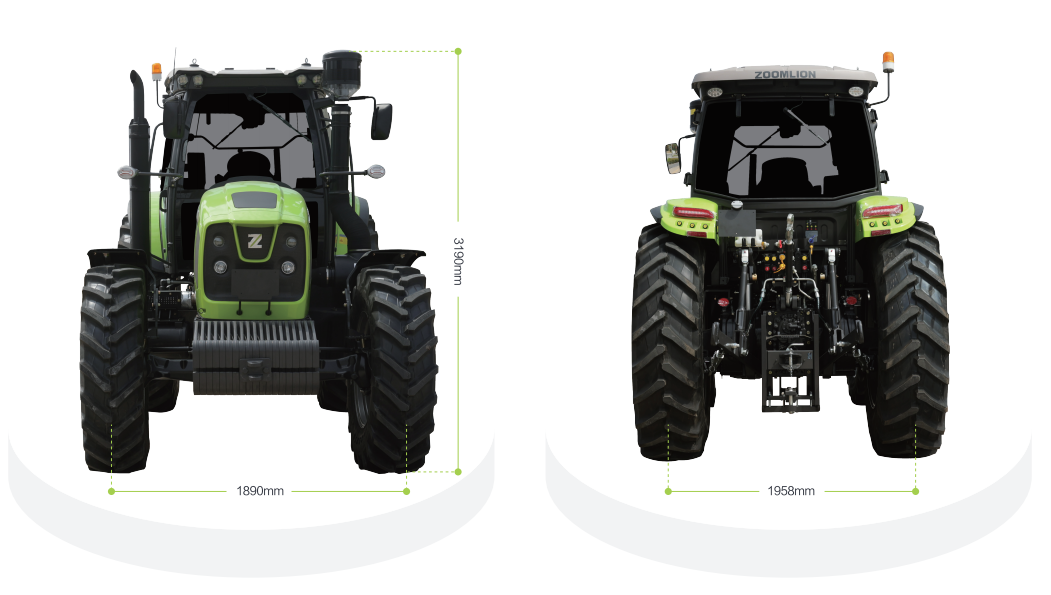

DIMENSION

Product Parameters

Engine model	YCA07235-T300 (Stage III)
Number of cylinders/ aspiration mode	6cylinders/ turbocharger
Emission level	Chinese III/ Euro III/ Euro V
Calibrated power	147kW/ rpm
Fuel consumption	≤224g/kW·h
Fuel tank capacity	375L
Engine displacement	6.871L

Gearbox
Type	Powershift
Number of gears	48F+24R
Hydraulic system
Type	Separated Type
Number of output valves	4group
Single-circuit hydraulic output flow Power beyond	100L/ min 150 L/ min

Hydraulic elevator
Plowing depth control mode	Draft & Position control
Lifting force (@610mm)	57.5KN
Suspension/ Trailing mechanism
Hitch mechanism	Rear 3 point linkage, Category III
Trailing type	Swing-type traction + towing
Compressed air brake	2 Air brake

Hydraulic elevator
Plowing depth control mode	Draft & Position control
Lifting force (@610mm)	57.5KN
Suspension/ Trailing mechanism
Hitch mechanism	Rear 3 point linkage, Category III
Trailing type	Swing-type traction + towing
Compressed air brake	2 Air brake

Power output shaft
Power	≥125kw
Speed	540/1000rpm
Power output shaft type	6/8/20 splines

Overall specifications
Length ×width ×height	5488×2500×3190mm
Wheelbase	2858mm
Minimum ground clearance	410mm (under Swinging drawbar)
Minimum operating weight	7370kg
Front wheel track	Level adjustable
Rear wheel track	Level adjustable

Counterweight
Plowing depth control mode	Draft & Position control
Rear counterweight	480Kg(2 pieces)

Steering
Minimum swing radius	≤6m(Standard tire)

Other
Maximum traction force	≥70.8KN
Type of clutch	Wet multi-disc
Type of brake	Hydrostatic braking
Front Axle	ZF TSA20
Rear axle	ZF TPT20
Automatic driving	Optional
Safety frame or cab	AC cab
