GlobalPL2304
- Product comparison
Features
The ultimate experience with high technology

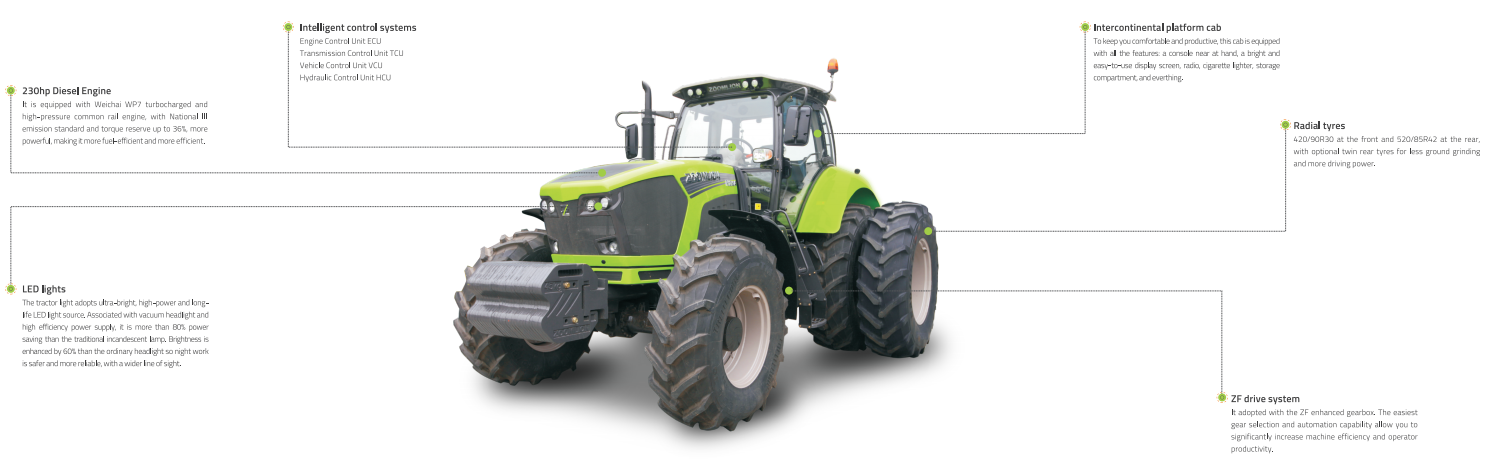

This 230 hp tractor comes from Zoomlion's North American R&D centre and is deeply integrated with the world's best technology,bringing you a powerful,efficient and intelligent workng experience.

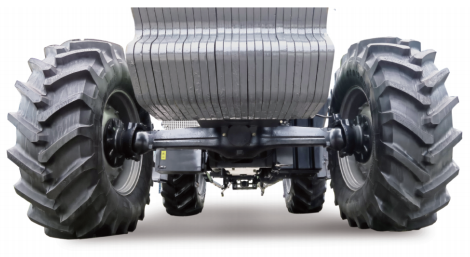

Better traction means increased productivity.The chassis construction in PL2304 tractor is designed to achieve unprecedented power density,and the F40+R40 gear provides you with speed and efficiency.
The powerful chassis and long wheelbase provide extra traction and stability.The PL2304 tractor stillshows unmatched superior performance even under difficult conditions and the wide range of PTO options makes the PL2304 even more versatile.
Strong power and high reliability
|
|

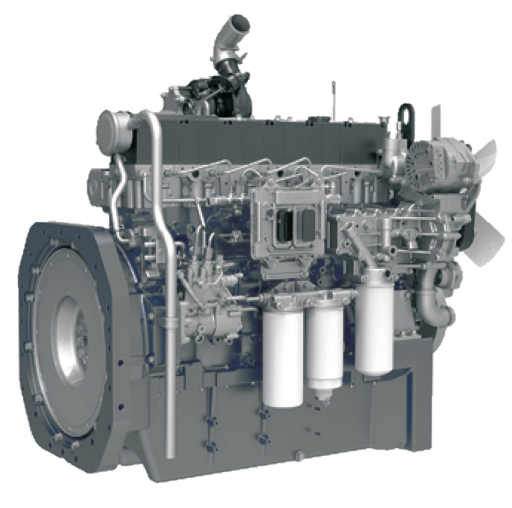

It is equipped with Weichai WP7 turbocharged and high-pressure common rail engine, with National ll emission standard and torque reserve up to 36%, more powerful, making it more fuel-efficient and more efficient. Power Take-off (PTO) System The standard and economy power output modes are provided, with three power output gears. When the engine is kept at a lower speed, the economy power output state not only reduces fuel consumption, but also reduces engine wear and noise, When at a low speed, high power and high torque state, the engine can still provide sufficient power. With large fuel tank The equipped large 400L fuel tank ensures 12 continuous hours ploughing operations under maximum load conditions. |
Reliable cooling system

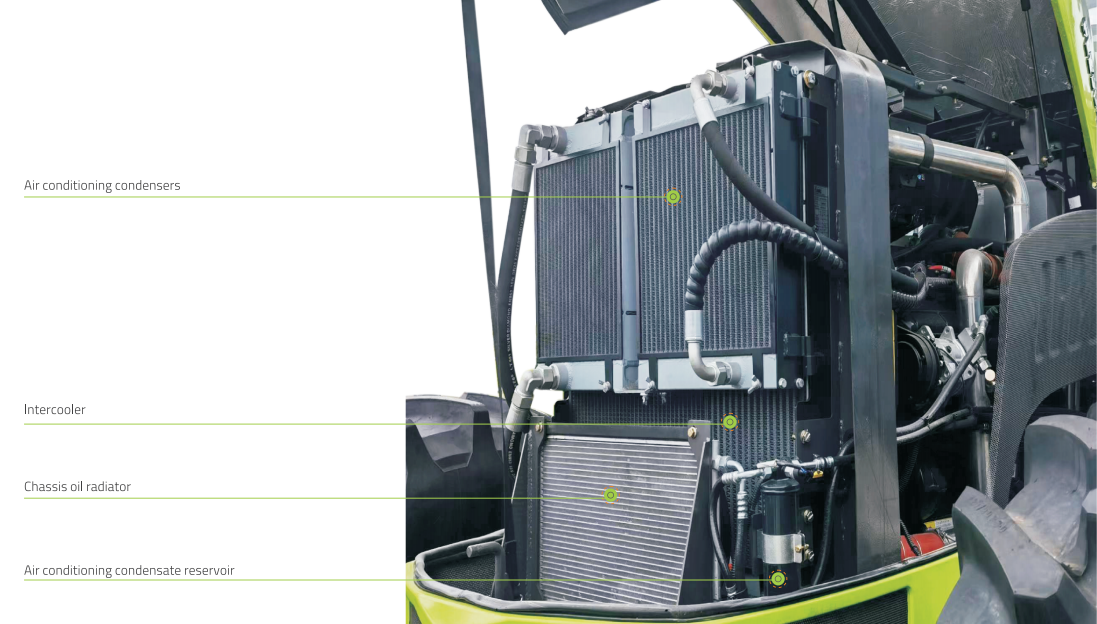

The radiator and intercooler have a larger heat dissipation area and can satisfy engine cooling, turbocharged gas cooling, sump oi cooling,hydraulic oil cooling and condenser cooling under continuous high load conditions, providing long-lasting power for the whole machine.
ZF Drive System
|

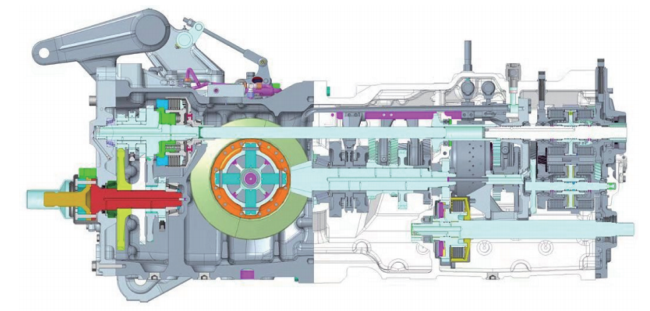

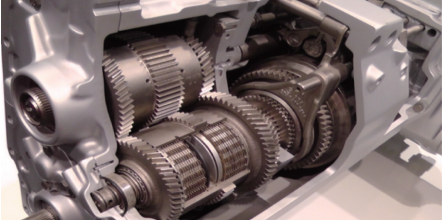

▪ German ZF driveline is robust, reliable, easy to operate and highly efficient in power transmission; various PTO modes can perfectly match with the agriculturalimplements. ▪ 40F+40R interval powershift and high gear density are adaptable to various working conditions; craw gear can cover special operations. ▪ Fast power shift is shock-free and noise-free with simple and comfortable operation, improving work quality and work efficiency. ▪ In intelligent mode, the transmission TCU communicates with the engine ECU in real time to automatically match the right gear according to the tractor's current operating conditions to save fuel. |
|
|
|
Chassis Heavy-duty chassis, reliable strength and durable. Advanced engine, transmission assembly and electro hydraulic control technology. |
 |

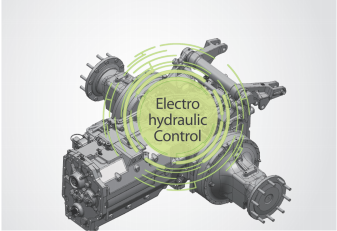

Rear Axle A number of electro-hydraulic control technologies are used. Four wheel drive and differential automatically switch according to driving conditions. |
|
|
|
|
|

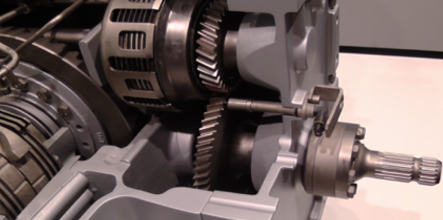

Main clutch Wet multi-disc clutch is integrated inside gearbox and controlled accurately by TCU and electro-hydraulic proportional valve, to achieve uninterrupted power shift and direction change. In auto-shift mode, the TCU, ECU and VCU achieve real- time communication and feedback to adjust the gear and speed suitable for the current operation, to save fuel. |

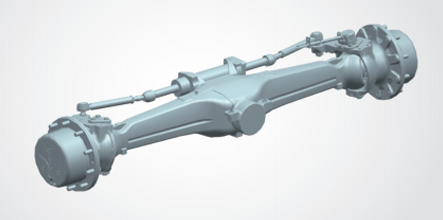

Front Axle With the CARRARO front axle, the steering angle is upto 55 ° for fiexible steering. The maximum load capacity is 5.2T, with a 20% safetymargin reserved for reliable performance. The front drive can be automatically combined anddisconnected according to the change in turning angleand driving speed to better protect the front axle. |
PTO The control of wet multi-disc clutch by electro-hydrauliccan accurately control the combination and separationof PTO. It can automatically disengage and combinethe PTO clutch when turning on the edge of a eld. |
Intercontinental Panoramic Cab

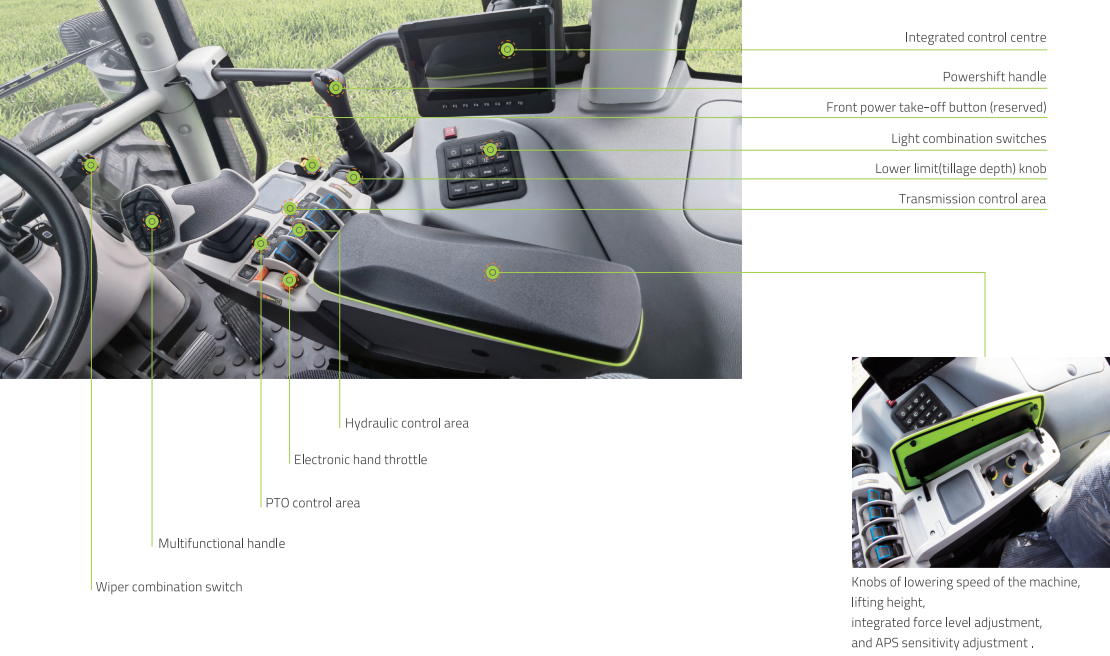

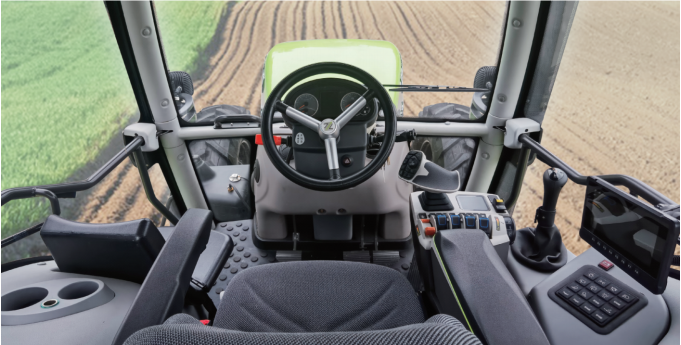

▪ The cab interior is technologically advanced,spacious,highly automated and comfortable to drive.
▪ The multi-functionalarmrestand console arehighlyintegrated and keyoperations arewithin easy reach,making operation more convenient,time-saving and eort-sving.
|
|
|
|

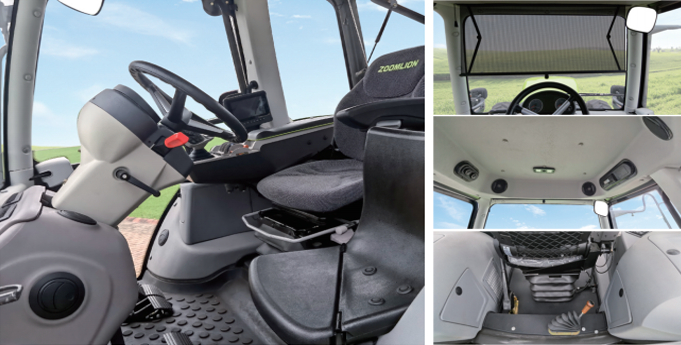

Driving comfort&Easy to operate ▪ The interior space of the cab is large.The main driving seat is an air suspension seat with a headrest,which can adjust shock absorption,up and down adjustment,rotation adjustment,backrest and headrest adjustment according to the weight,so as to reduce driving fatigue and improve driving comfort With seat position detection function,if the driver is not in the seat,the vehicle can not be started,which is safe and reliable. ▪ The passenger seat can fold down for convenience and practicality. ▪ The interior is equipped with air conditioning and positive pressure,which prevents dust from entering from outside and keeps your fieldwork cean and fresh. ▪ The steering wheel is multi-directional and adjustable,with advanced hydrostatic steering,which is light,flexible,easy to control,safe and reliable, significantly reducing labour intensity. |
▪ As an integrated control centre,the touchscreen display is easy to view and operate;the main page shows the 9 functional areas in fullscreen,while some functions can be adjusted at the screen,makingitatruly seamless control centre. ▪ With fulldigital display of host parameters,real-time tracking and detection of vehicle conditions,automatic fault diagnosis,real-time update of relevant data,you and the machine can interact more timely and effective. ▪ The reversing camera gives you a real-time overview of the car and its surroundings,making it safe and efficient to use. ▪ Thefront and rear windows are equipped with mesh sunshades,which are light-transmiting and heat-insuating and the position is adjustable at wil,providing you with a comfortable driving environment.The openable rear window,MP3,cigarette lighter,ashtray,water cup halderandstorageboxaredesignedtomakeyourridemoreconvenientandcomfortable. |

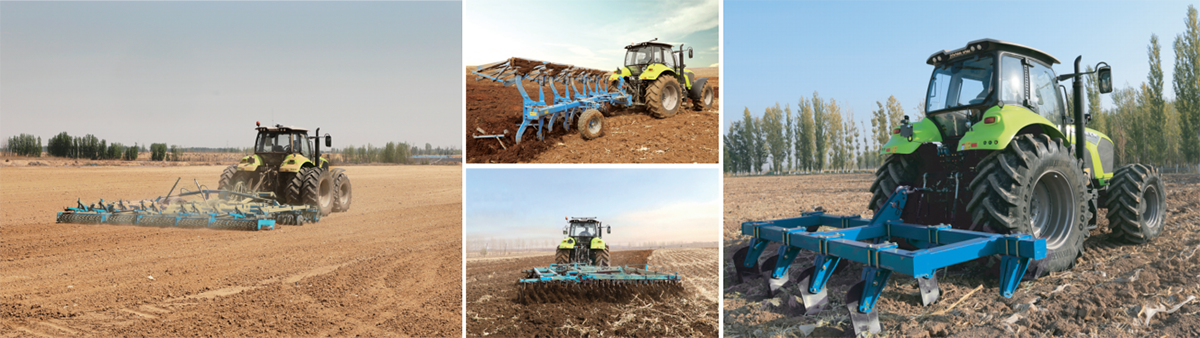

Working devices
|
|

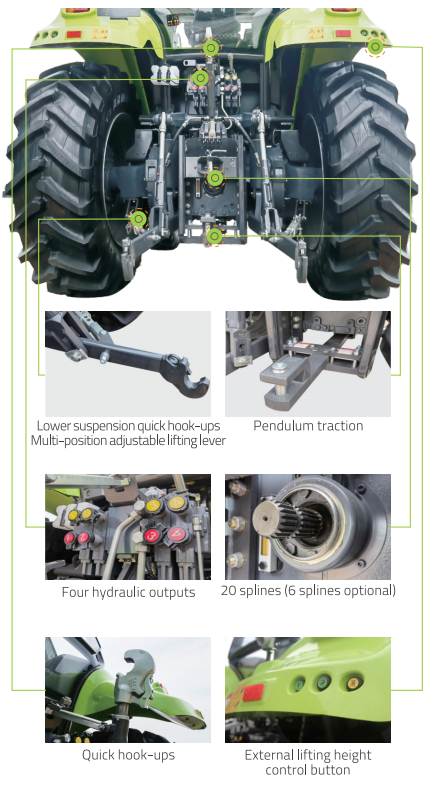

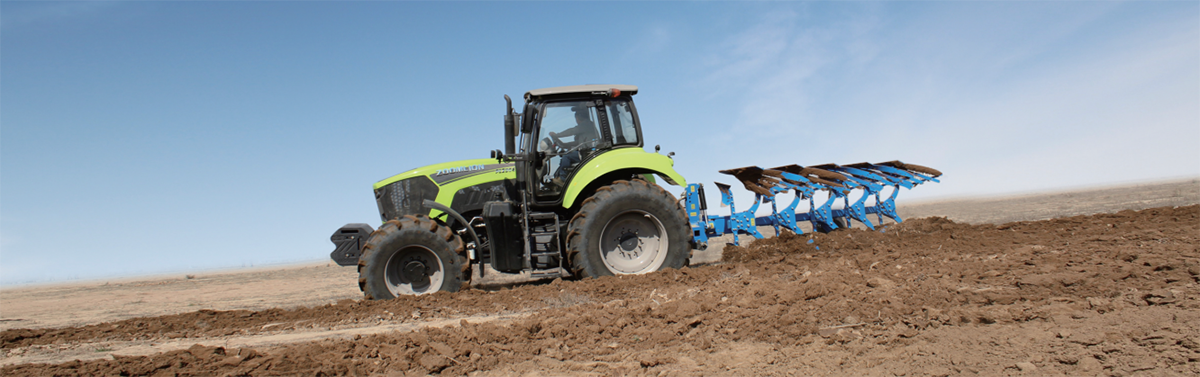

■High adaptability ▪ The lifting force of the electronically controlled hydraulic system can realize the modes of force, position and force-position synthesis,and adapt to dierent soil conditions. ▪ When towing the machine with limited depth function,the floating operation function is optional. ▪ PTO:540E,1000,1000E three power output speeds to achieve the perfect match for maximum productivity,versatility and efficiency.Economy mode is a fuel-efficient feature that maintains PTO speed at lower engine speeds.
■High efficiency ▪ Easy and efficient U-turn:The upper limit height of suspension lifting and the lowering speed of suspension can be easily adjusted in the cab.When the machine turns around,the PTO is automatically disconnected,and the agricultural implement is lifted to a suitable height.After the U- turn,the agricultural implement can be automatically lowered to the tilling state.
■ High economy ▪ The combination of a variable piston pump and a multiway valve realises the load sensitive control function of the hydraulic system,which automatically senses and matches the hydraulic oil demand of the farm equipment,achieving precise control of flow,time and other parameter variables and saving fuel.
■High convenience ▪ Four-set of hydraulic outputs meets the needs of high-end and large compound machines for traction and drive operations;pressure,flow,position and time can be set individually to suit a wide range of working conditions. ▪ The communication and control of the multi-way valve are CAN bus control,with automatic diagnosis function. ▪ The rear three-point suspension adopts a quick hooking device,with a second-class suspension ball head,which has a short hooking time and a high degree of adaptability of agricultural machinery. ▪ Equipped with active damping function to reduce the vibration of tractors and agricultural implements during transportation. |
Front working device
|
|

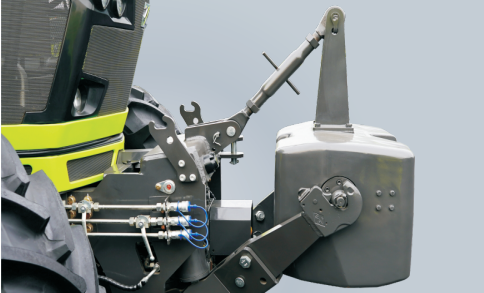

▪ Comprehensive Operation Support Equipped with a front PTO,your tractor upgrades from an ordinary farm machine to a versatile mechanical expert,effortlessly powering front-mounted mowers,snow blowers,rotary tilers,and more! ▪ Multi-functional Expansion With the front PTO device,you can easily switch between various front-mounted implements without replacing equipment,helping you achieve both operational efficiency and cost-effectiveness. |
|
Tyres
Lower fuel consumption,lower soil compaction,and longer service life
■Radial tyres
●Radial tyres,in the same size conditions,have a larger ground area,a smaller ground ratio pressure,less compaction of the land,better adhesion and more driving power.
● 420/90R30 at the front and 520/85R42 at the rear,with optional twin rear tyres for less ground grinding and more driving power.
■Advantages of radial tyres versus normal bias tyres
● 20%improvement in traction
● 30%increase in service life
● 20%reduction in fuel consumption
● 20%reduction in soil compaction
● 20%increase in comfort
Smart Applications
DAutomatic,efficient and precise navigation system
▪ Pre-installed automatic navigation system utilizes satelite positioning,mechanical intelligent control and other technologies to assist the automatic driving of agricultural machinery, making operating accuracy reach 2.5cm,and greatly improving operational efficiency.
▪ The build-in remote monitoring system can count the number of acres worked in realtime, monitor the truck's working position,and warn basic faults,etc.,making it more convenient for the mechanic to work.

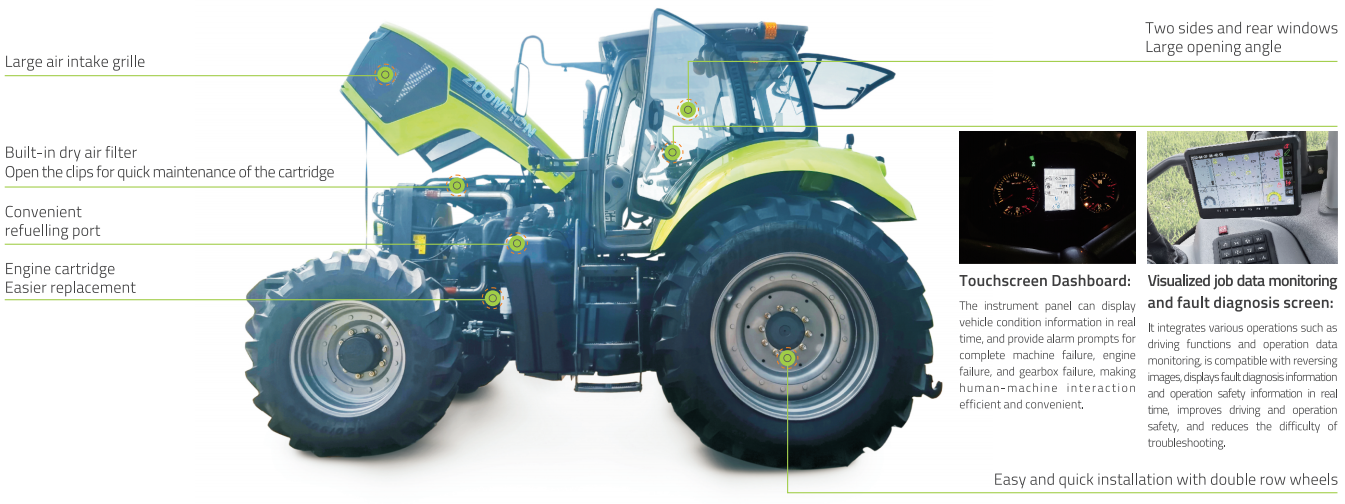

Maintenance is more convenientMaintenance is more convenient
■ The air inlet ystem isequipped with adust extaction system,which effetvel removes impurties and other artidesand extend the daily maintenance intervasof the air filter.
■ Atthe sametime,each heat dissipation moduleisdesigned to increase the protection of the net,which can quickly remove straw and other impurties.
■ The hood can beraised up to 50°to avoid the problem ofinacessile corners that canot be maintained,and the olfiter and other components that requre frequent replacement or maintenance are located closest to the periphery.
■ The lntercontinentalplatform bodyis beautiful styled,and the large coolngile at the front andrearofthehood can greatyimprove the airintake and coolingspedof the radiator,ensuring the normal operation of the machine.

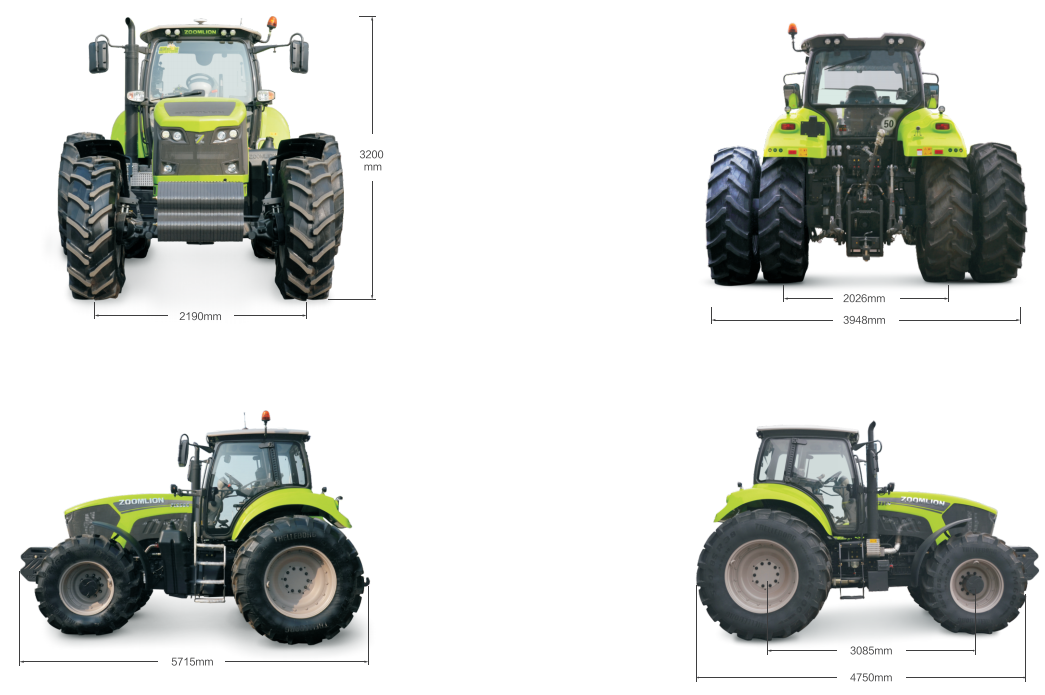

Product Size
Product Parameters
|
Model |
Unit |
PL2304 |
|
|
External |
Length |
mm |
5715 |
|
mm |
2610(singleton)/3948 twin |
||
|
mm |
3200 |
||
|
Wheelbase |
Rear whee Front whee |
mm |
2026(singleton)/2670 twin |
|
mm |
2190 |
||
|
Tyre size Front/Rear |
/ |
420/90R30520/85R42 |
|
|
Wheelbase |
mm |
3085 |
|
|
Minimum turning circle radius |
mm |
6800 |
|
|
Ground clearance |
mm |
430 |
|
|
Max.tractive effort |
kN |
74 |
|
|
Minimum usable mass |
kg |
8575 singleton /9610 twin |
|
|
Quality Front axle |
kg |
3625 |
|
|
kg |
4950 |
||
|
Front counterweight mass |
kg |
1170 |
|
|
Rear counterweight mass |
kg |
None |
|
|
Engine |
|
|
|
|
Engines brand |
1 |
Weichai |
|
|
Inhalation method |
/ |
In-line,direct injection,water-cooled,supercharged |
|
|
Number of cylinders |
/ |
6 |
|
|
Piston displacement |
L |
7.4 |
|
|
12 hour power |
kW |
169.5 |
|
|
Calibrated speed |
r/min |
2200 |
|
|
Max.torque |
N ·m |
1150 |
|
|
max.torque point rpm |
r/min |
750 |
|
|
Lubrication/cooling method |
/ |
Water cooling |
|
|
Power Drive System |
|
|
|
|
Transmission |
/ |
ZF |
|
|
Clutch |
/ |
Multi-disc wet |
|
|
Gearing(forward/reverse |
/ |
40/40 |
|
|
Gearing(forward/reverse) |
/ |
nterval powershift |
|
|
Central drive |
/ |
Spiral bevel gears |
|
|
Differentials |
/ |
Planetary wheels |
|
|
Differential lock |
/ |
Multi-disc wet |
|
|
Final drive |
/ |
Planetary gears |
|
|
Power output speed rating |
/ |
3 |
|
|
Power output shaft typ |
/ |
ndependent |
|
| Power output shaft speed | r/ min | 540E/1000N/1000E |
| Number of power output shaft splines | / | 20(option 6) |
| Power take-o shaft outer diameter dimensions | mm | 45(35) |
| Rear axle brake | / | Hydrostatic assisted multi-disc wet brakes |
| Running System | ||
| Front axle(bridge) type Front drive axle |
/ | Planetary Gear Type |
| Differentials | / | 4 planetary wheels, compound(100% locking+ limited slip) |
| TyresTyre size front/ rear | / | 420/90R30-520/85R42 |
| Tyre pressure | kpa | 160 |
| Working Device | ||
| Hydraulic system type | / | Split |
| Tillage depth adjustment method | / | Force regulation, position regulation. integrated force and position, electro-hydraulic control |
| Hydraulic lifters Max. lifting force |
kN | ≥60 |
| Hydraulic oil pumps | / | Load-sensitive variable pumps |
| Output connector type and specication | / | ISO 7241-1 Standard A Series 12.5 |
| Number | groups | 4 |
| Hydraulic output Output flow rate |
/ | 110 |
| Hydraulic output devices | L/ min | 4-position electro-hydraulic proportional multi-way valve |
| Types and categories | / | Rear three-point suspension class 3 |
| Suspension mechanismUpper suspension point pin holed iameter |
mm | 32 |
| Lower suspension point pin hole diameter | mm | 28.4 |
| Traction devicesDiameter of traction pin shaft | mm | 32 |
| Electrical system | ||
| System voltage | V | 12 |
| Generators | / | 12V-200amp |
| Battery | / | 12V,900CCA |
| Working light(single) | / | 16 |
| Liquid capacity | ||
| Fuel tank | L | 400 |
| Engine oilBrand | / | SAE 15W-40/CH-4 |
| Dosage | L | 32 |
| Transmission oilBrand | / | Shell Spirax(SAE 10W-30APIGL-4) |
| Oil for front axleDosage | L | Transmission 130/ Front axle13.4 |
| Brand | / | Mobil DTE 10 Excel 32 |
| Hydraulic oil Dosage |
L | 90 |
| Brand | / | -45°C antifreeze |
| Coolant Dosag |
L | 40 |
