MESHED INTELLIGENT DIRECT DRIVE

The MIDD system has a built-in high-capacity battery pack and a high-per- formance fuel engine linkage design that combines the advantages of a traditional internal combustion engine and an emerging electric system to provide strong power output while significantly identifying fuel consumption and extending range.

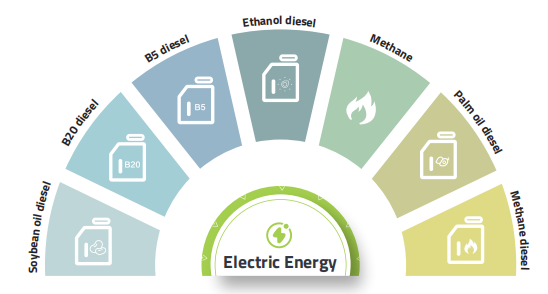

Green energy solutions can protect the environment, promote the sustainable development of agriculture, assistant high production, but the market existing number of a wide range of types such as B5, B20 and ethanol diesel, there is a high demand for engine quality. Due to large pollutant emission, Zoomlion MIDD price provides a strong solution,compared with traditional pollutant emissions,the MIDD waste emissions can be reduced by upto 90% by the Zoomlion's high efficiency oil-electric hybrid solution, filling ordinary diesel can bring more efficient environmental protection than special environmental protection diesel, providing the optimal and lowest cost solution for the complex new energy market.

SUPER HYBRID ARCHITECTURE

Practical, effective, low-cost new energy solutions

Green energy solutions can protect the environment, promote sustainable agriculture, and assist in high agricultural productivity, but the market existing number of a wide range of types such as

B5, B20 and ethanol diesel, there is a high demand for engine quality. Due to large pollutant emission, Zoomlion MIDD price provides a strong solution, compared with traditional pollutant emissions, the MIDD waste emissions can be reduced by up to 90% ，Zoomlion's high efficiency oil-electric hybrid solution, filling normal diesel can be agent than the special environmental protection diesel has a more efficient environmental protection, for the complex new energy market to provide the best and lowest cost solution.

PS： This is the comparison of hybrid vehicles and fuel vehicles, research department only response for tractor data

SUPER HYBRID ARCHITECTURE

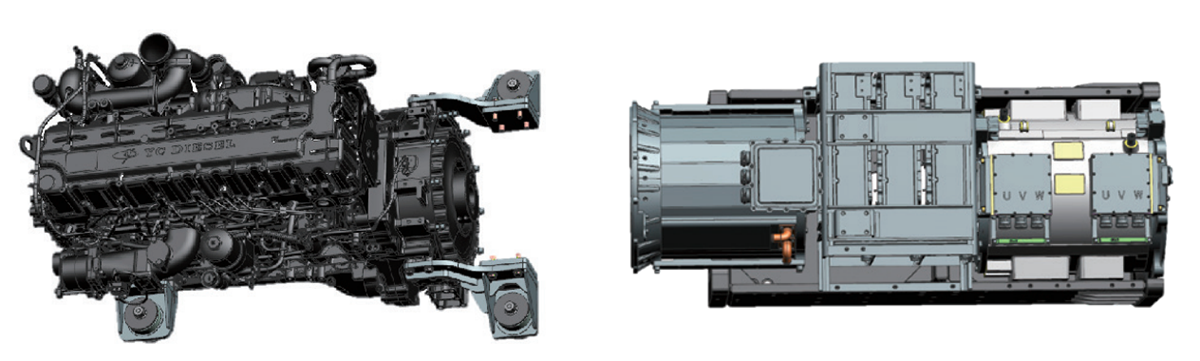

Structure Introduction

The MIDD system's built-in high-capacity battery pack is designed in conjunction with a high-performance fuel engine, combining the advantages of a traditional internal combustion engine and an emerging electric system to provide strong power output while significantly reducing fuel consumption and extending range.

In the new Zoomlion energy structure, the engine maintains the most fuel-efficient speed and continuously supplies power to the power battery. The control program automatically adjusts the energy output strategy and power output strategy of the power battery according to the operating conditions, always maintaining a low fuel consumption and high power output state.

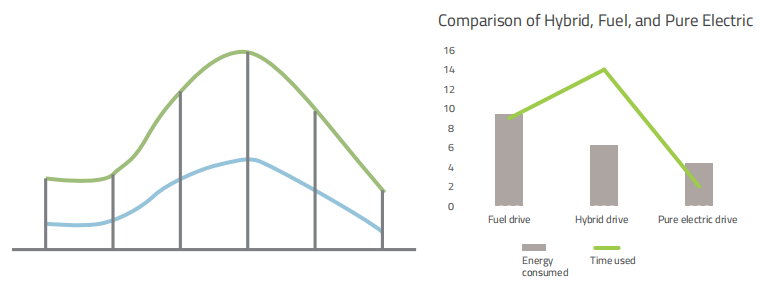

Research department provides related data comparison

Generation gap between hybrid structures and diesel engines

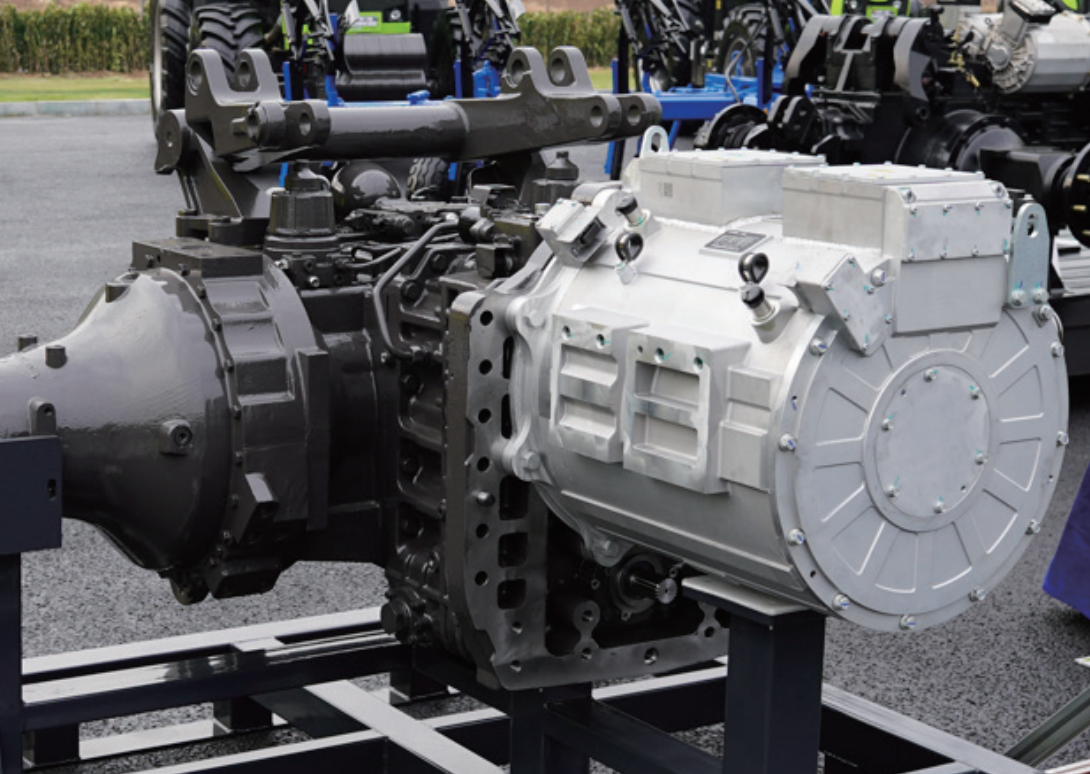

Hybrid architecture

The engine adopts vibration isolation technology

educe noise, minimize vibration stress on components, and effectively extend the service life of components.

High energy conversion rate

Energy utilization rate increased by 10%, the engine maintained an economic range,fuel consumption rate decreased by 30%, and usage costs were greatly reduced.

Automatic program

The program has self detection, self diagnosis, and self maintenance functions,reducing the frequency of downtime maintenance and improving the efficiency of farmers' operations.

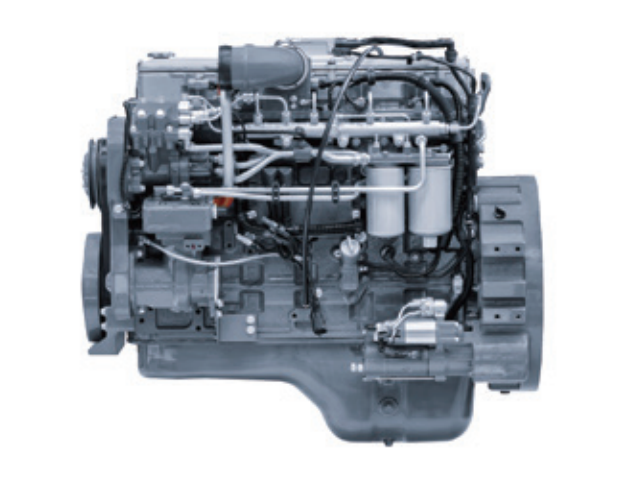

Diesel engine

Short lifespan

The engine directly participates in power transmission, with high vibration and noise, and components are affected by cyclic stress

New energy has high requirements for engines

New energy forms such as diesel, biodiesel, and alcohol diesel are complex and have high requirements for engines

High maintenance costs

Regular maintenance for 50 hours, 200 hours, 500 hours, etc. results in long downtime, high maintenance costs, and low operational efficiency

Rigorous testing environment, high-end engineering machinery grade quality

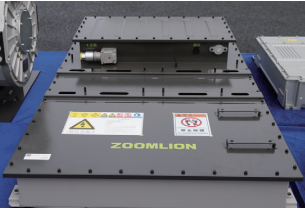

Zoomlion New Energy Company has independently developed power batteries that are specifically optimized for agricultural environments. They have undergone rigorous extreme temperature tests, collision tests, and extreme usage conditions, making them suitable for mainstream agricultural production environments without experiencing capacity reduction after 2000 hours of use.

With over 30 years of experience in construction machinery, Zoomlion has developed a chassis system for mining trucks, which has undergone complex bench tests and extreme agricultural production tests to effectively ensure quality. The integration of aerospace grade intelligent control system effectively enhances the service life of the entire vehicle.

SUPER HYBRID ARCHITECTURE

Efficient operation

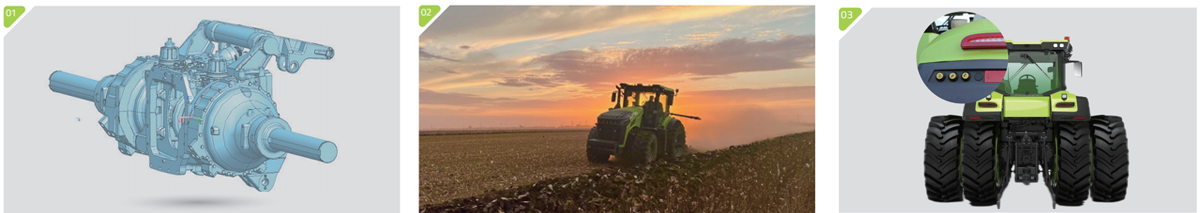

01 Thanks to the MIDD hybrid architecture, the tractor transmission and power output are both independently controlled by electric motors. The rear axle is driven by dual motors, and the instantaneous power of the motor can reach up to 600 horsepower. The vehicle weighs up to 10 tons and can be equipped with a 2-ton counterweight (1.1 tons for the front and 0.9 tons for the back), which can adapt to high load changes and easily handle deep plowing, sowing, and transportation operations.

02 Pressure and flow compensation hydraulic system (PFC hydraulic system) under MDD architecture, PFC hydraulic system is designed according to operational requirements

Dynamically adjust the flow rate and pressure of hydraulic oil, reduce waste heat generated by the hydraulic system, avoid unnecessary energy waste, and save up to 20% of fuel.

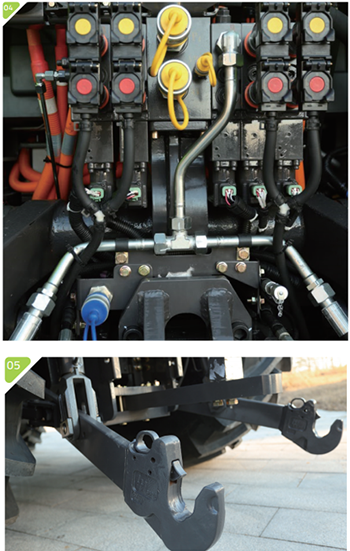

Flow hydraulic pump, up to 227L/min (optional) comes standard with 4 sets of SCV output valves, and can be optionally installed.

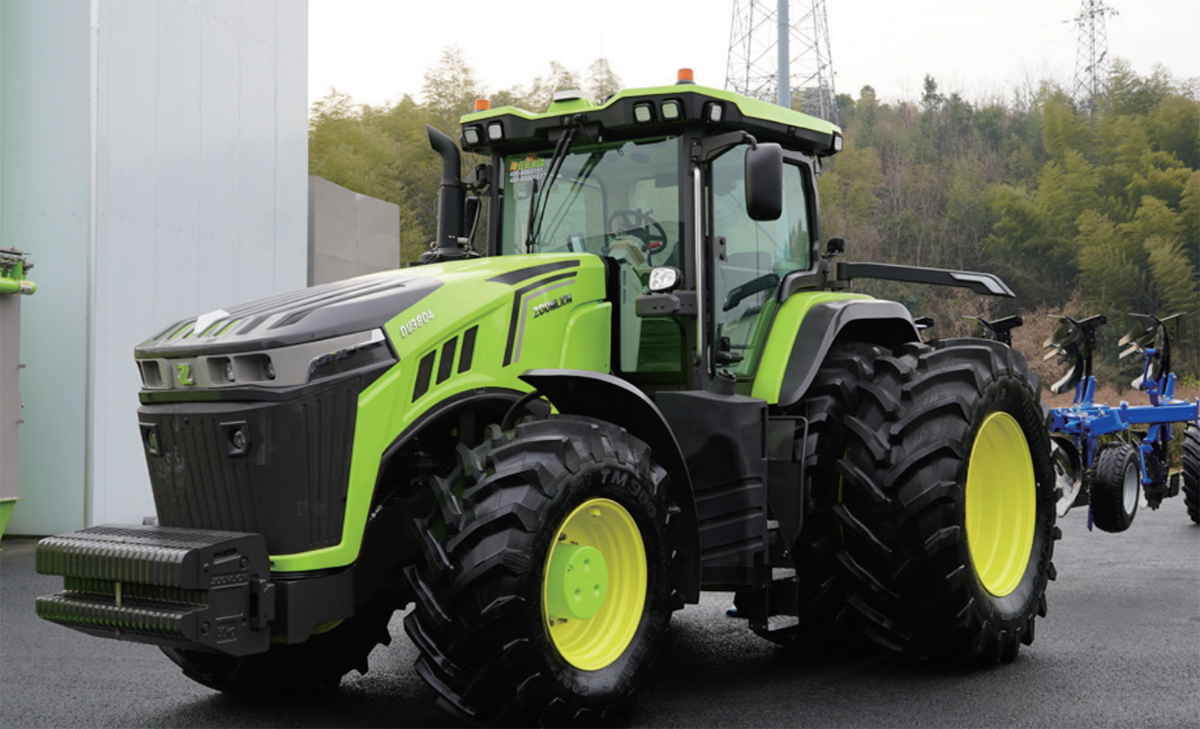

03 DV3504 is a row crop tractor designed specifically for field crop cultivation, equipped with MDD system tools.

Excellent inter row accuracy (<3.5 centimeters) is required to avoid damage to crops. You can choose two front and two rear radial tires as an option,Improve the traction of the tractor.

With a ground clearance of 400mm, it can easily shuttle between tall crops such as corn and soybeans,achieving precise cultivation and management.

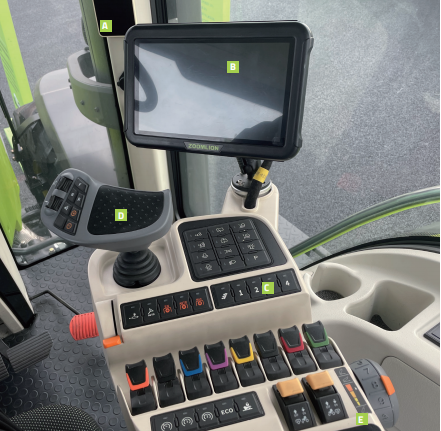

ZOOMLION AURORACAB

[A] Corner pillar display screen: Real time display of vehicle status and fault codes

[B] Armrest display screen: displays the intelligent control form and set control program terminal of the entire vehicle

[C] Electric gear lever, 1+1 speed control

[D] Zoomlion Copilot control terminal

[E] Storage rack with USB

[F] Air suspension textile seat

[G] Auxiliary seat

[H] Adjustable steering wheel with adjustable angle

[I] Defogging air outlet

[J] Wide body convergent hood

The noise control of Zoomlion AuroraCab is around 76dB, and the operator can easily use the walkie talkie to talk, make phone calls, and listen to the radio while driving the tractor, reducing the damage of noise environment to the operator. Zhonglian has independently developed atmospheric suspension seats that automatically adjust the air pressure according to the driver's weight. The seats are designed with high ergonomics and customization, and the resonance frequency of the seats is out of sync with the overall vibration of the tractor, avoiding damage to the human body caused by resonance. The 43 ° large angle rotatable seat facilitates users to turn around and observe the status of the equipment. Adjustable lumbar and back support, suitable for various user groups. The sports package has good performance, lifts the driver's spirits, and effectively reduces driving fatigue.

ZOOMLION COPILOT

convenient operation friendly interaction

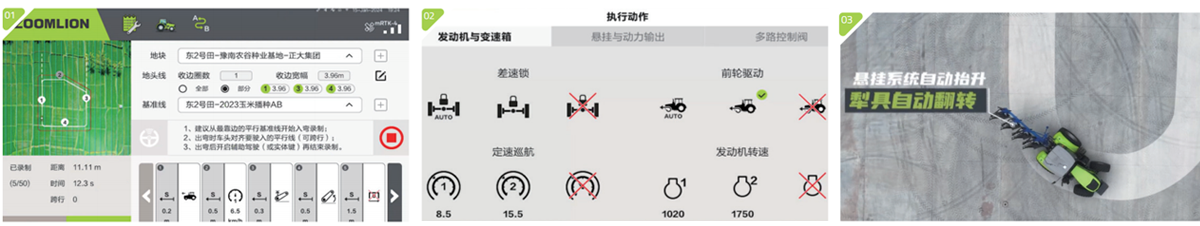

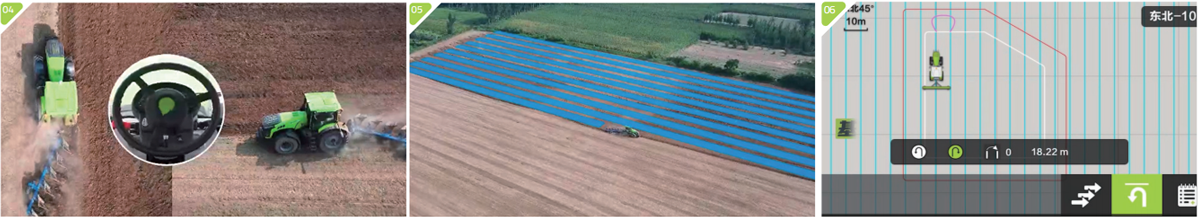

01 The tractor detection work environment can remember the current work status, and there is no need to adjust the one key switch during secondary work; Quickly enter the working state, reduce tedious prepara tions before work, and improve work efficiency

02 Support macro programming and memory functions, set and formulate states in advance according to customer needs, quickly record the required action sequence, store up to 4 * 50 functions, choose multiple triggering methods and various machine execution actions, and accurately display the upcoming action sequence based on geographical unknowns. It is also possible to use a programmable LED lighting system to automatically switch lights according to the work environment, such as turning around, road transporta tion, etc.

03 Support automatic turning with one click lifting function, further reducing the cost of tractor use, and novice drivers can quickly enter the state. Zhonglian Smart Agricultural Machinery brings new solutions for production efficiency and operational speed to agricultural companies.

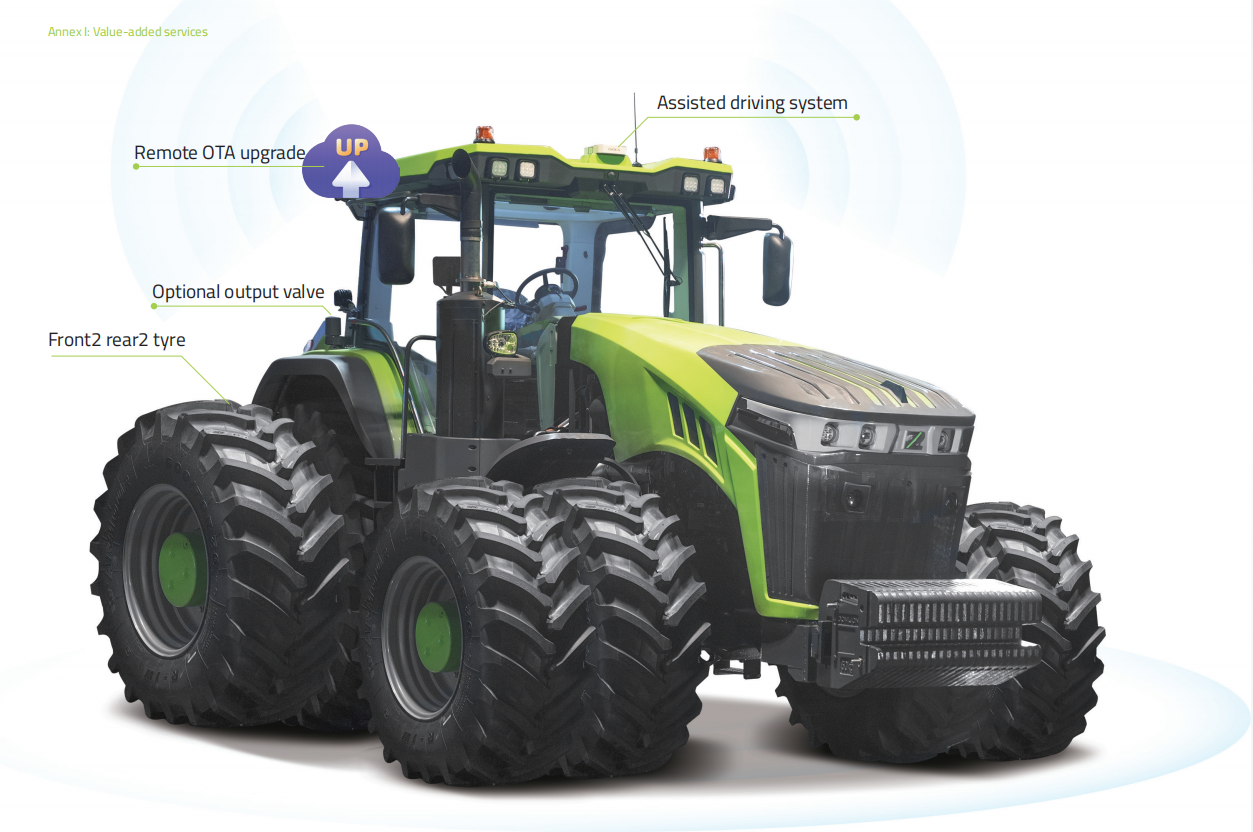

04 Zoomlion intelligent C1 assisted driving system, high-precision satellite navigation driving, vehicle electrical system management, real-time monitoring and diagnosis, Zoomlion Copilot intelligent operation.

05 Supports high-precision control of 0.3-25km/h, with accuracy and handover accuracy ≤ 2.5cm. Our self-de veloped high-precision satellite receiver has stable signals and strong anti-interference capabilities.

06 Automatically plan travel routes based on user needs

Maximum normal operating time and minimum service cost

Thanks to the new MIDD architecture, the damage rate of traditional components in DV3504 has been greatly reduced. In hybrid architecture, traditional mechanical and hydraulic components have been greatly reduced, making them more durable,Intelligent new motor replacement. The tractor control machine is equipped with a self detection, self diagnosis, and self maintenance system, greatly reducing the maintenance process and failure rate of the tractor.

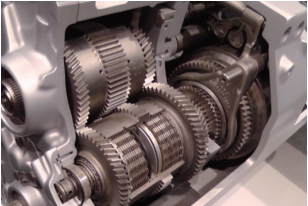

The maintenance time for major transmission components such as the engine, gearbox, and front and rear axles is 36 months/3000 hours.

Three electric control system: battery pack warranty for 6 years, other components warranty for 3 years/3000 hours. Except for the battery pack, the warranty period for other three electric systems can be extended up to 5 years, with an extension fee of $3000 per year.
