RG Series Tractor

RG series,featuring mechanical transmission modelsin the 180-200 horsepowerrange. Itcombines low fuelconsumption,high efficiency, reliability, and easy maintenance,allowing you to achieve absolute efficiency and advantagesin yourwork whileenjoying an enhanced userexperience!

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

Low consumption High efficiency

· Equipped with a Yuchai six-cylinder high-pressure common rail engine. meetingChinaStagelll emission standards, with a displacement of 6.5L.
· Advanced Turbocharging& DirectInjection Technology: Combined with the Bosch electronic controlinjection system, it precisely manages fuel supplyunder various engine operating conditions. This ensures excellent fuel economy while delivering robust power output.
· Smart Fuel-Saving Mode: An electronic intelligent fuel-saving switch adjusts gears based on load, ensuring the vehicle operates in the economic range at all times. Operational fuel consumption is over 10% lower than competitors.
· 300L Fuel Tank: Supports continuous operation for an entire day, significantly extending working hours and delivering aleap in efficiency that's clearly visible.
· High-Capacity Battery: Designed to minimize performance degradation in low-temperature environments, ensuring reliable engine starts in cold weather.
· Upgraded Low-Temperature Battery: The newlarge-capacity battery allows easy starts evenin harshlow-temperature conditions.

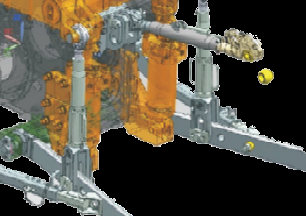

Hanging suspension, hooking efficiency increased by 50%

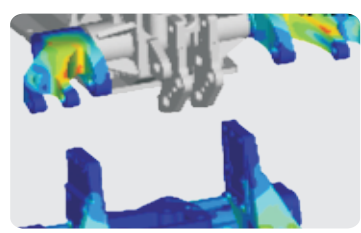

■ More Reliable:Maximumlfting force up to 54kN,with the safety factor of the lifting suspension system increased by more than 1.5 times.
■ Easy to Connect: Quick connection at both upper and lower points, with rapid adjustment via the lifting rod.
■ Faster Operation Standard quickcouplingimproves connection efficiency by 50%. Optional position control, force-position integrated adjustment, and one- buttonlift with rotation save time and effort.
■ Enhanced Adaptability: Upgraded 7×45 mul i-hole towing hitch improvesimplement compatibility by 30%. Optimized traction rod structure with material upgraded to 60Si2MnA, increasing strength by 35%.

High Reliability

■ Enhanced Cooling System

■ Independent Coolers for Engine and Chassis Hydraulic Oil: Each has its own cooling system, providing superior heat dissipation.

■ Independent OilSystems:The chassis system and hydraulic work units use separate oil supplies, with two independent hydraulic oil filling ports. This ensures cleaner hydraulic oil,extends its service life, and enhances the cooling capacity of the hydraulic system.

■ Optimized Radiator andIntercooler Area:

■ Radiator cooling areaincreased to 59.5m?

■ Intercooler coolingarea expanded to 15.8m?

■ Ensures maximum heat dissipation efficiency under demanding workloads.

■ Improved Airflow: A 25mm space between the intercooler and water tank increases airflow, guaranteeing excellent cooling performance even during high-intensity operations.

■ Anti-Heat-Backflow Design: The radiator includes a device to prevent hot air backflow, enhancing cooling reliability.High-efficiency cooling tubes in the core further ensure effective heat dissipation.

■ Debris lsolation System: The cooling system features a device to block dust and debris from entering the machinery. The device can be manually removed from the side, making it easier to clean dust and debris.

■ Upgraded Air ConditioningSystem: Thicker condenser core and upgraded double O-ring air conditioning pipe connectors.

■ Optimized evaporatorlayout reduces impedance, significantly improving cooling performance.

Main and AuxiliaryTransmissions:

Operated via two separate control levers, enabling 16 forward gears and 16 reverse gears.

Forward speed range:2.32-30.95 km/h; Reverse speed range: 1.63-21.78 km/h.

Designed to meet the needs of various field operations at different speeds.

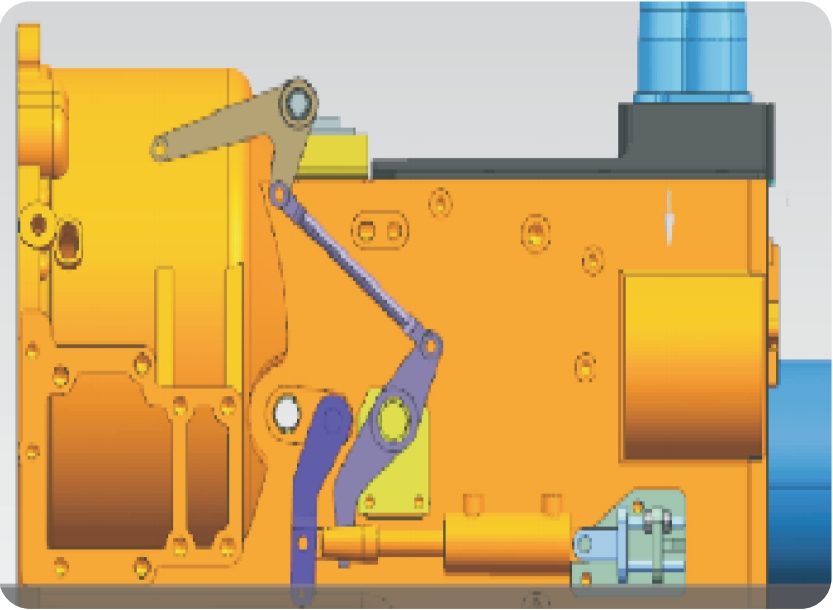

Dual-Action Clutch:
Dry-Type, Independent Dual-Action Clutch: Allows independent control of the driving system and PTO for higher operational reliability.
14-lnch Clutch: Made with imported friction materials, offering large torque reserves and a safety factor of 2.41 (industry standard: 2.0).

	16F+16RSynchronizedTransmission: Side-Mounted Controls: The gearshift is positioned on the right-hand side, in line with the operator's habits. This makes shifting convenient, smooth, and flexible, ensuring an optimal driving experience.

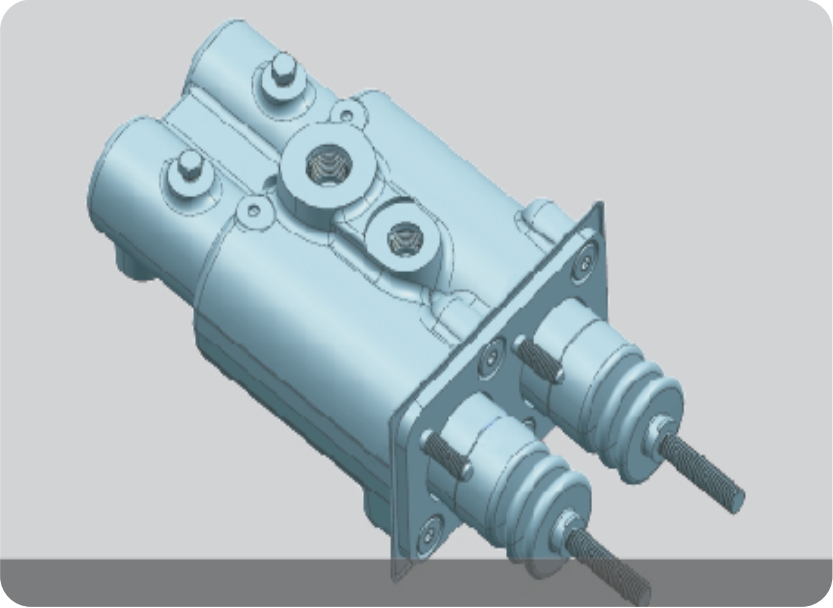

	Brake System: Equipped with a hydraulic-assisted master cylinder, requiring minimal effort to brake. The braking system provides stable and reliable performance, significantly enhancing overall machine safety.

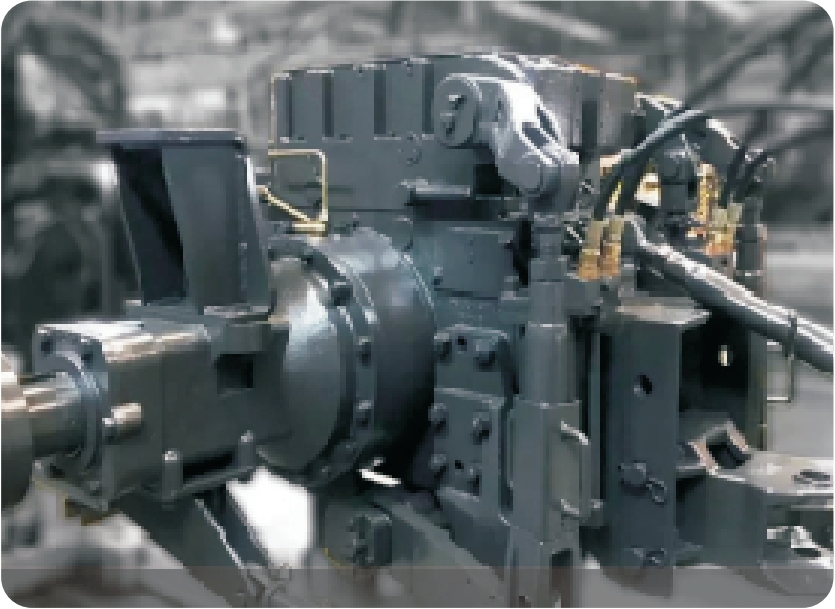

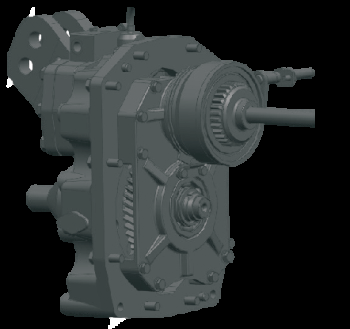

	Rear Axle Transmission: Reinforced and enlarged rear axle housing with optimized transmission gears. Increased gear modulus enhances chassis load capacity, ensuring greater durability and operationalstrength.
	Revolutionary Lubrication System: Replacing the traditional “splash lubrication" with "forced lubrication" ensures effective ubricationofneedle bearingsin thetransmission. Improves bearing lifespan and enhances the reliability of the transmission system.

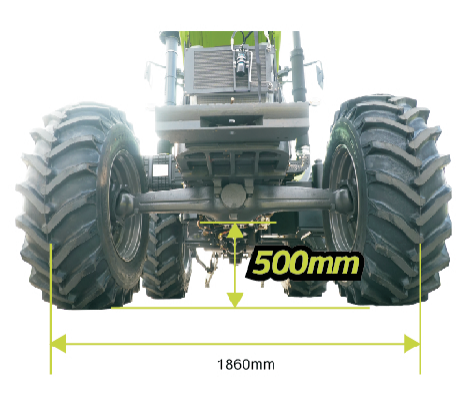

	Reinforced Front Axle Features a reinforced Carraro front axle with a 500mm ground clearance, minimizing the risk of crop damage during field operations.
	Tires Standard configuration includes 14.9-28/18.4-38 dryland tires, with optional 540/65R28 and 650/65R38 sizes available. Equipped with full hydraulic power steering for reduced steering effort and easier maneuverability.
	Reinforced High-Strength Chassis The reinforced chassis features a helical gear transmission made of specialized materials allowingfor greater torque transfer,smoother meshing, and strongerload-bearing capacity.

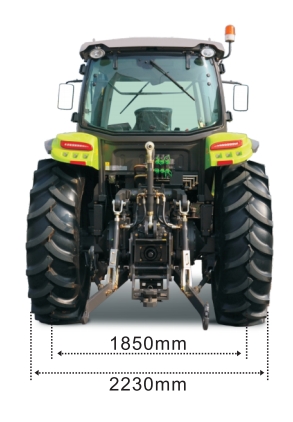

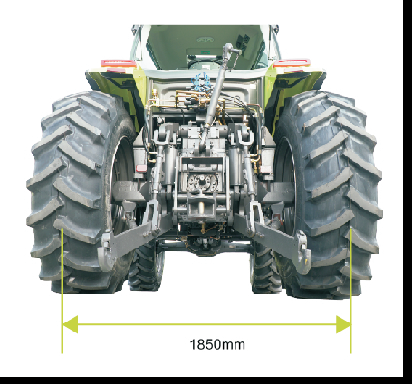

	Rear Wheel Track The front and rear wheel track are optimally designed for stable operation under heavy oads. Standard front/rear wheel trackis 1860mm/1850mm, with infinitely adjustable rear wheel trackto accommodate various regional agronomic requirements.
	More Reliable: The wet PTO adopts a multi-disc clutch with oil cooling, offering high reliability. Under ideal conditions,it can even achieve lifetime maintenance-free operation. Easier Operation: The wet PTO features electronic control, enabling one-touch engagement and disengagement ofthe PTO,Smooth engagement ensures effortless operation. Enhanced Adaptability: Thanks to its ease of use, it is particularly suitable for tasks requiring frequent PTO operation,such as balingand similar applications.

Comfort

■ Positive Pressure Fresh AirSystem

■ Maintains a cabin interior-to-exterior pressure difference of 65+5 Pa to prevent external dust from entering,ensuringacleanerandfresher cabin environment.

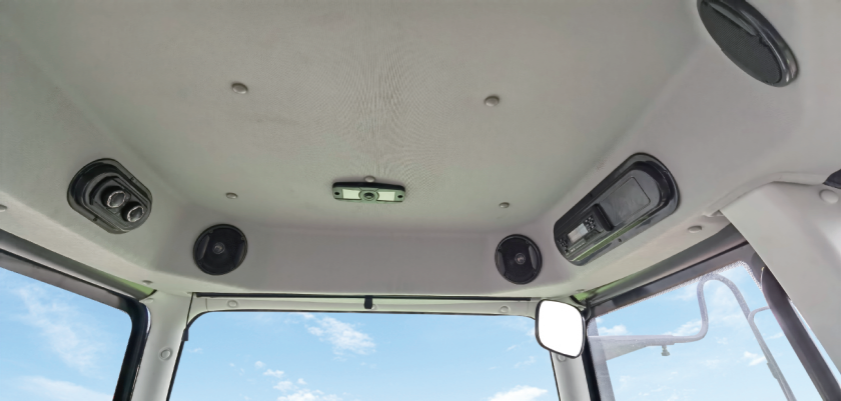

■ Climate-Controled Cabin

■ Equipped with an efficient air-conditioning system (heating and cooling) featuring 8 air vents for rapid temperature adjustment.

■ Askylightisinstalled on the roof toimprove ventilation.

■ Ergonomic Design

■ Includes an adjustable suspension seat with armrests and an adjustable steering wheel, allowing customization based on the operator's height and weight for optimal comfort.

■ Sunshades effectively block strong sunlight, reducing cabin heat and preventing glare from affecting your driving.

■ Enhanced Convenience

■ Features a built-in radio for entertainment, allowing you to tune into your favorite stations while

■ Includes aUSB port for convenient mobile charging.

■ Automotive-style light combination switches and wiper control switches make operations more user- friendly.

■ Practical additions like a cup holder, cigarette lighter, and storage compartments add convenience to your workday.

■ Noise and Vibration Reduction

■ The cabin is fitted with soundproofing materials, significantly reducing overall noise levels.

■ Rubber damping pads are installed at four connection points between the chassis and the cabin. minimizing vibration transmission and greatly reducing cabin noise and shaking.

Easy to drive

■ Stylish and Practical Dashboard

■ The dashboard provides a clear and accessible view of essential driving parameters,ensuring you always have an easy-to-read display while driving.

■ Real-Time Monitoring

■ Equipped with sensors that allow for real-time monitoring of the entire vehicle's operational status,lt also features settings and query functions to keep you informed ofthe engine's performance at all times.

■ Full Hydraulic Power Steering

■ Offers easy and precise steering correction under various working conditions and speeds, with a comfortable and ergonomic steering wheel that fits perfectly in your hands.

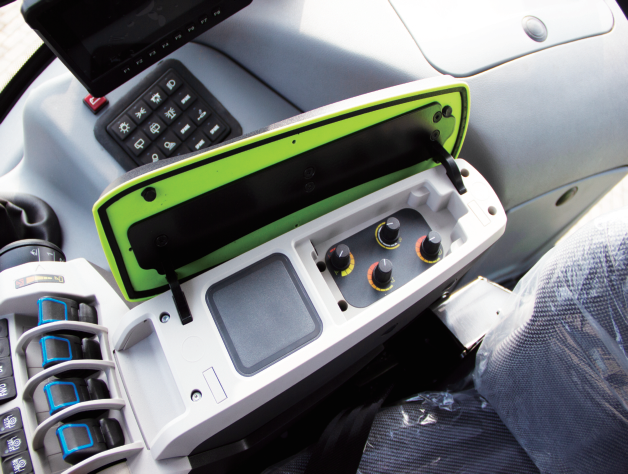

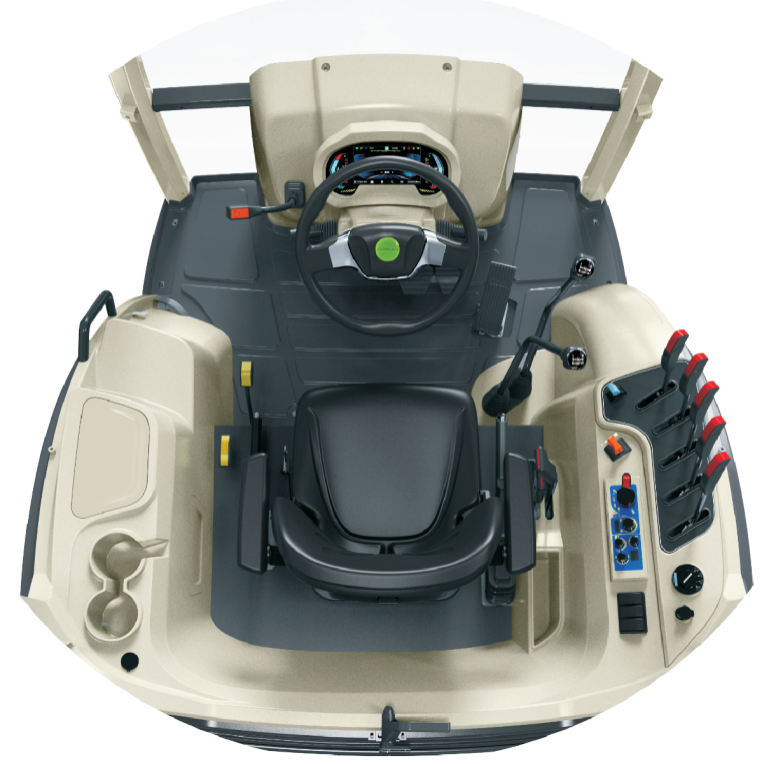

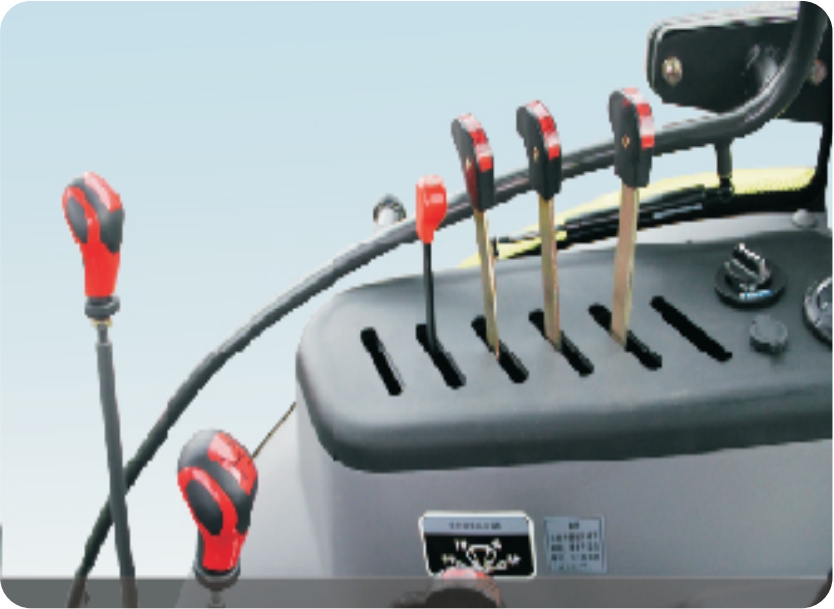

■ Optimized Control Layout

■ The layout of the controls is carefully designed and positioned within easy reach of the operator,enabling quick responses and control even duringhigh-intensity tasks.

■ Shuttle Shift Lever

■ Positioned on the left side of the dashboard, it is ideal for narrow spaces, small fields.or when using front-mounted implements. A small movement of the left hand can easily switch between forward and reverse, saving effort and enhancing convenience.

■ BrakingSystem with MechanicalSynchronization

■ Allows for switching between single-side and dual-side braking for more versatile control.

■ Speed and FunctionalityEnhancements

■ The addition of a speedometer and exclusive Russian display panel makes speed controland operation easier during work.

■ Reversing warninglights and rotating warninglightsimprove driving safety.

■ The bottom-mounted air conditioning system improves machine performance by enhancing airflow efficiency.

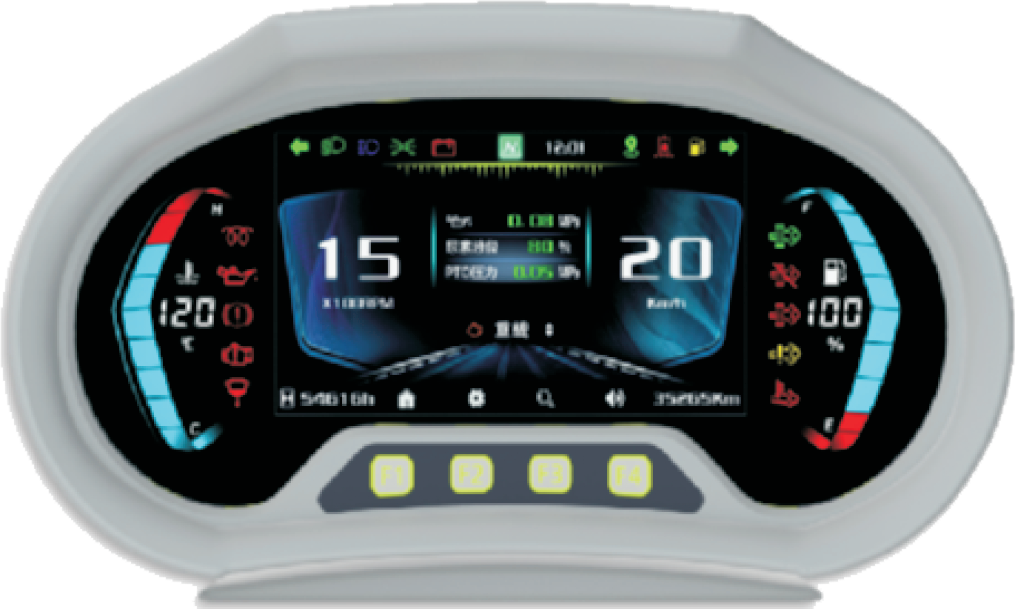

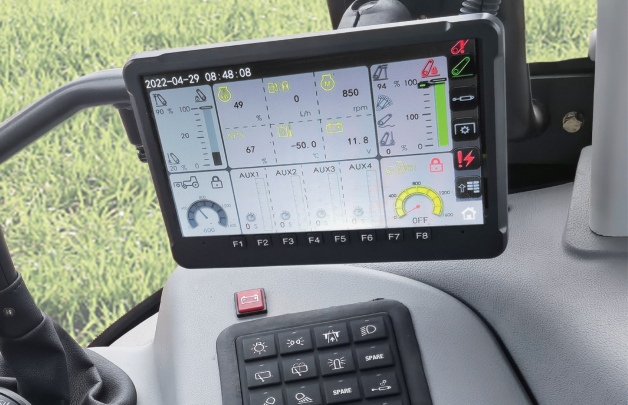

The 7-inch LCD display offers amore refined and modern appearance with better visibility

■ Large Screen:Upgraded from 4.3 inches to 7 inches,givingit a sleekand tech-savvylook.

■ High Resolution:1280x800 resolution for clearer visuals

■ New Functions: The dashboard now features more intuitive and logical data displays for vehicle speed, engine RPM,and other vital metrics.

■ Reverse Visibility: The high-definition 1080p camera displays real-time images,improving safety when reversing.

Ease of maintenance

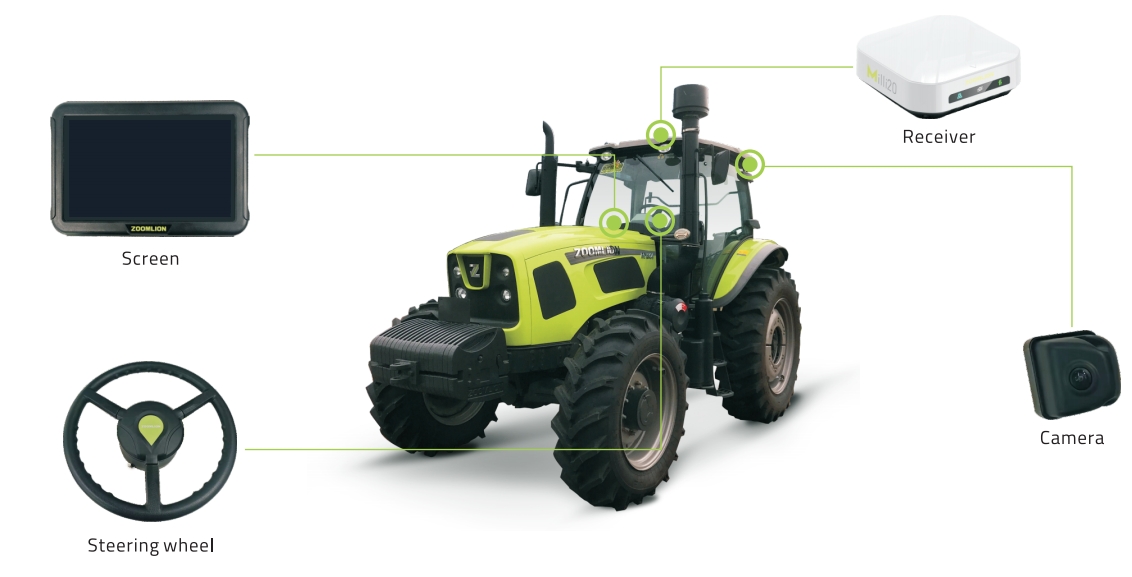

Auto Drive

■ Improved Wiring Harness Layout and Enhanced Reliability

■ The wiringharness has been redesigned for better reliability.

■ Fuse Quantity lncreased: Key components are equipped with individual fuses, resulting in a 30% increase in the number of fuses,ensuringbetter protection.

■ Key Electrical Components: The average time between failures (MTBF) is greater than 1000 hours, ensuring long-lasting and dependable performance.

■ New Generation ofZ00MLON Body Design

■ Sleek Appearance: The third-generation Z00MLlON body features a more attractive design.

■ Enhanced Cooling Efficiency: The front and rear large-area heat exchange grilles significantly improve air intake and cooling speed for the radiator,ensuringsmooth operation of the machine.

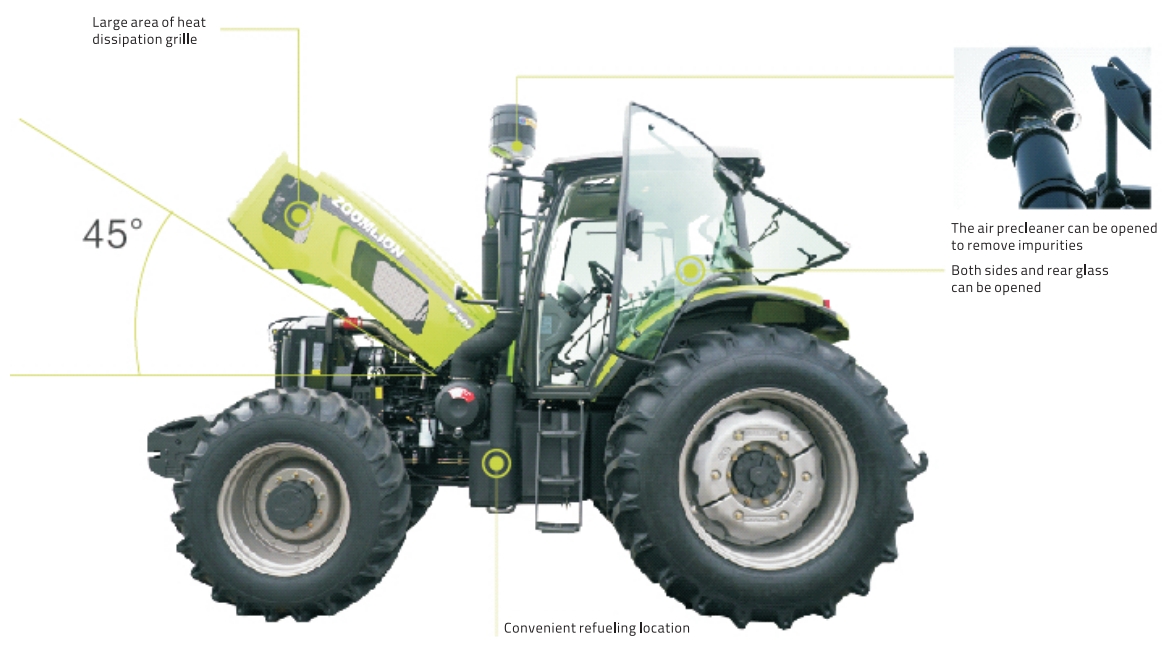

■ Excellent Hood Design: The hood offers great coverage to minimize internal component wear. When maintenance is

needed, the front hood can be easily lifted and secured, providing clear and easy access to the engine, radiator, and other components,savingtime duringmaintenance

■ Wide Hood Opening Angle: The hood can be lifted up to 40°, allowing access to hard-to-reach areas that would otherwise be difficult to maintain, Components like the oil filter, which require frequent maintenance or replacement, are conveniently positioned near the outer perimeter for easy access

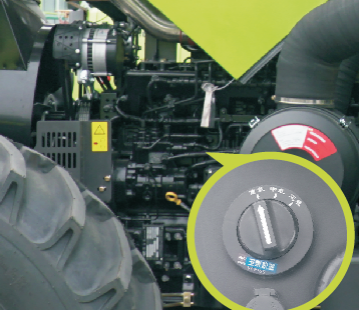

■ Specialized Air Pre-Filter

■ Equipped with a dedicated air pre-filter, which features two knobs for easy removal of internal impurities by simply twisting the knobs. This design makes maintenance much more convenient compared to conventional pre-filters, reducing workload and making the machine more suitable for dusty environments

■ AdditionalStorage and Convenience

■ A toolbox has been added, providing more convenient storage for work tools and equipment.

■ Multi-dimensionalinformation reception

Signals can be provided byfive satellites,GPS, GLONASS, Galileo, Beidou and QZSS, and the steering function can be achieved with centimeter-level accuracy.

■ GNSS+INS terrain compensation technology

High accuracyis maintained evenin complex environmental terrain.Excelent self-propelled performance in ditching plantingand harvestingapplications.

■ Fullyfunctional and easy to maintain

It has the function of automatic fault diagnosis, and can cal remote service with one click;

Itis equipped with curves, circles,rake curves, 90° lines and other types ofnavigation lines;

It can be displayed in all major languages in the world, and can beusedformu measurementand trajectory coverage.

■ Waterproofand dustproof, durable

IP65 dustproof and waterproof components are used to adapt to the complexenvironmentofagriculturaloperations.

	Real-time positioning:GPS/Beidou system uploads thelocation of agricultural machinery in real time to provide users with accurate services.
	Driving track:Real-time recording of agricultural machinery driving trajectory to assistusersin measuringthe operating area.
	Fault diagnosis: remote monitoring of the operation status of agricultural machinery convenient guidance and solution of fault problems for users.
	Maintenance tips: Intelligently push vehicle maintenance information to improve user experience.
	Operation statistics:real-time collection of operation data to assist users in managing the operation ofagricultural machinery.

Product Parameters

Model	RG1804/RG2004
Engine
Engine Model	YC6J200-T302
Cylinders/type	6,Trubocharge
Emission Standard	Chinese stage lll
Rate power	132.4kW	147kW
Fuel Consumption	<250g/kW.h
Fuel Capacity	375L
Displacement	6.871L
Transmission
Type	Sychronized
Gears	16F+16R
Hydraulic
Valves	3	4
Output Flow	80L/min
Power byond	X	150L/min(OPT)
Lift control
Control mode	Position	Draft&position with auto
LIft	54KN
Linkage type
type	Ⅲ
PTO
PTOpower	126/113KW
Speed	540/1000
Type	6/8/21

Model	RG1804/RG2004

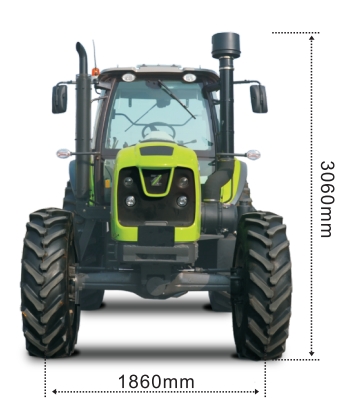

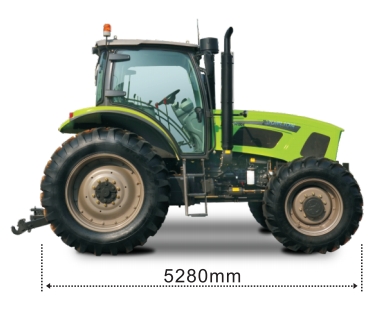

Dimension	5490×2430×3200mm

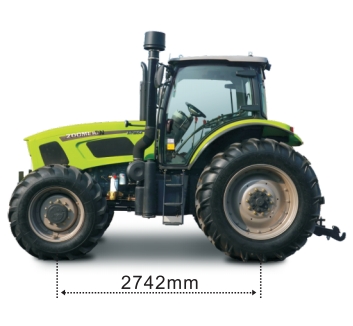

Wheelbase	2775mm
Clearance	490mm
Cross weight	7050-8290kg(standard tyre)7800-9040kg(dual rear tyre)
Tier
	STD16.9-28;20.8-38;OPT540/65R28;650/65R38
Front wheeltrack	1900mm
Rear wheeltrack	1900mm
CouterWeight
front	16*50Kg
rear	480kg(2layers)
Turning
Turning radias	6±0.3m
Other
Traction	61KN
