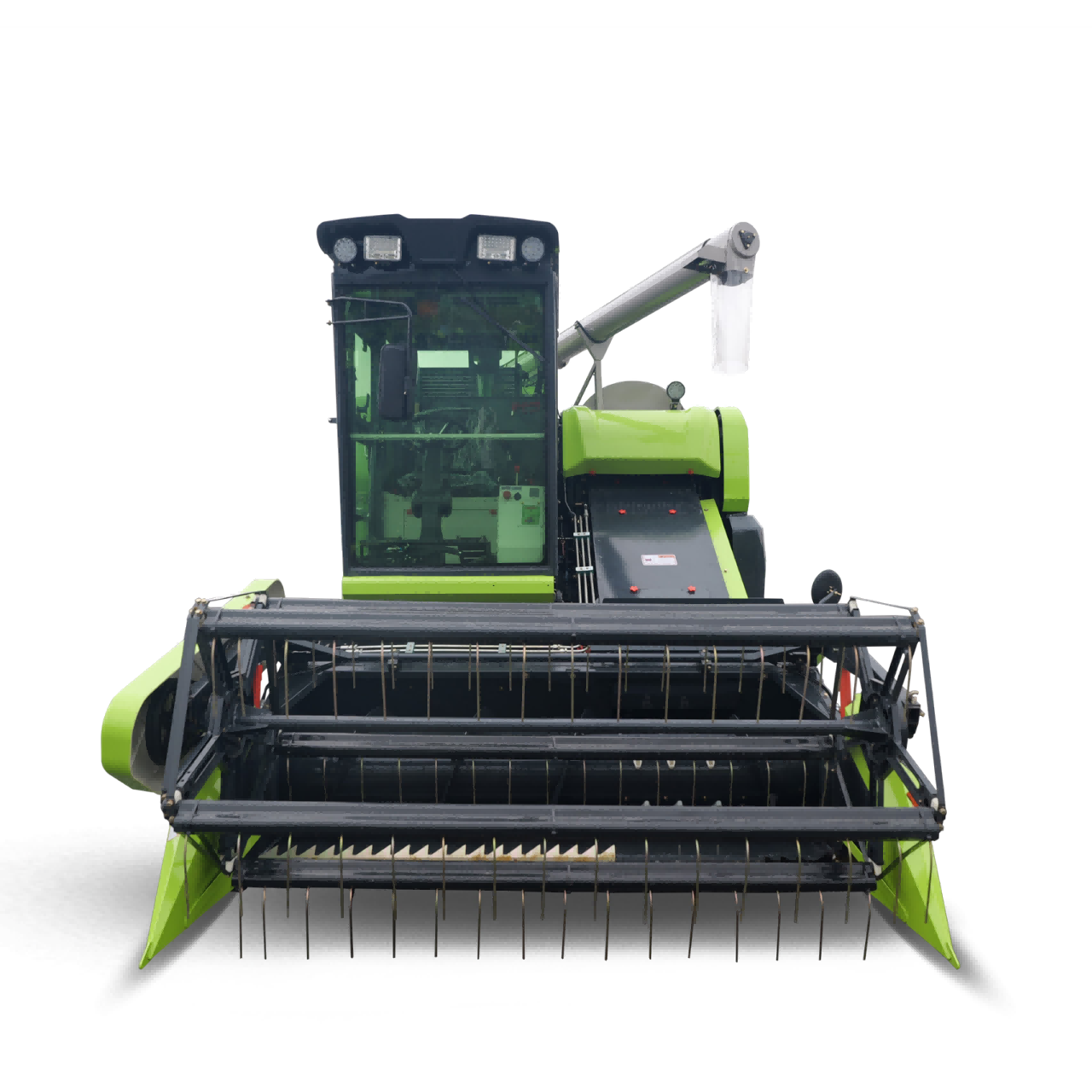

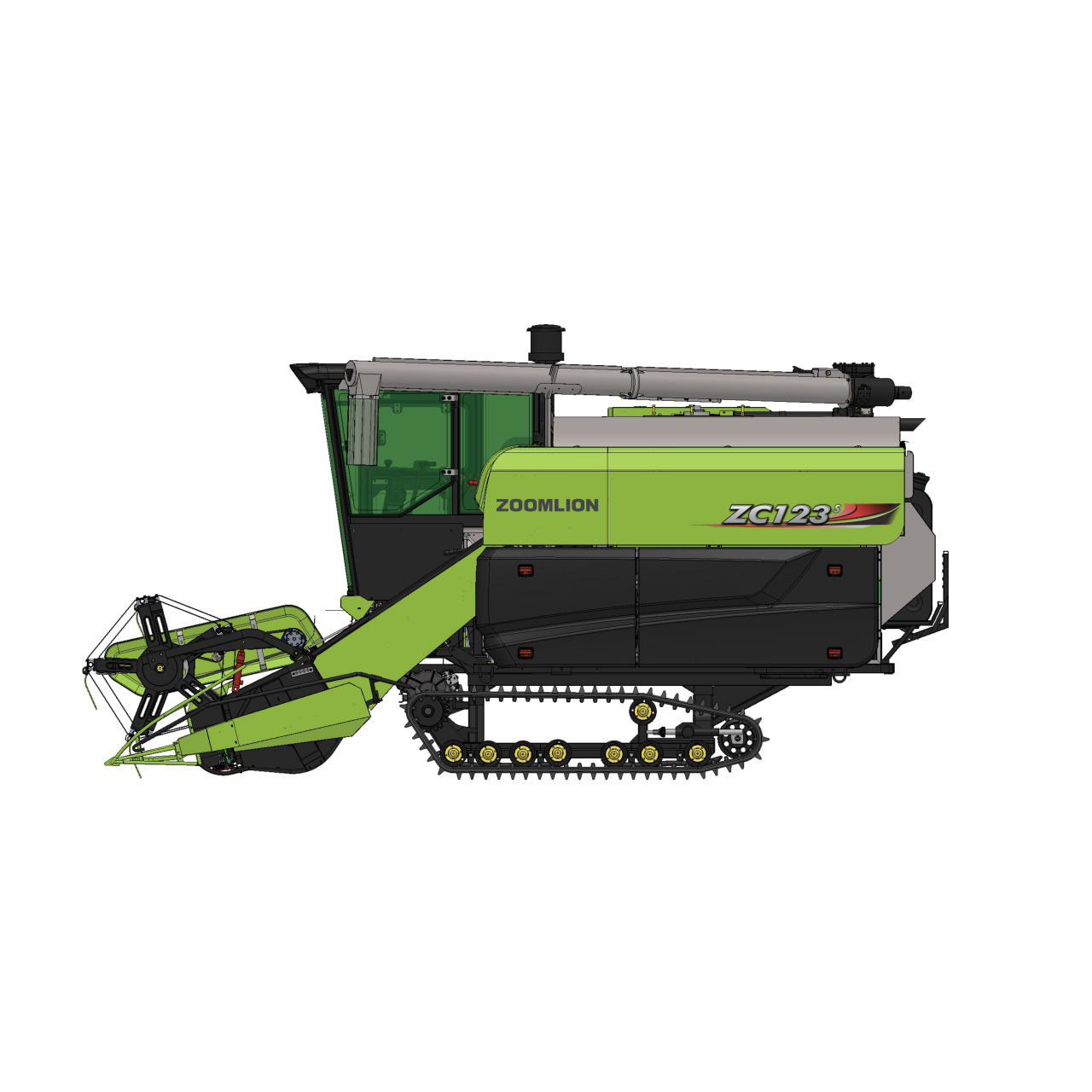

ZC123S Crawler Rice Combine Harvester

ZC123S has excellent performance, powerful power and fuel systems, excellent passability and chassis design, and provides users with a comfortable control experience. At the same time, its efficient harvesting and transportation system, excellent cleaning and processing capabilities, as well as larger grain bins and efficient grain unloading speeds have greatly improved operating efficiency. Durable materials and processes ensure its long service life, bringing users lasting and stable operating benefits and a comfortable driving experience.

120 hp

Power

1800 litres

Grain tank capacity

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

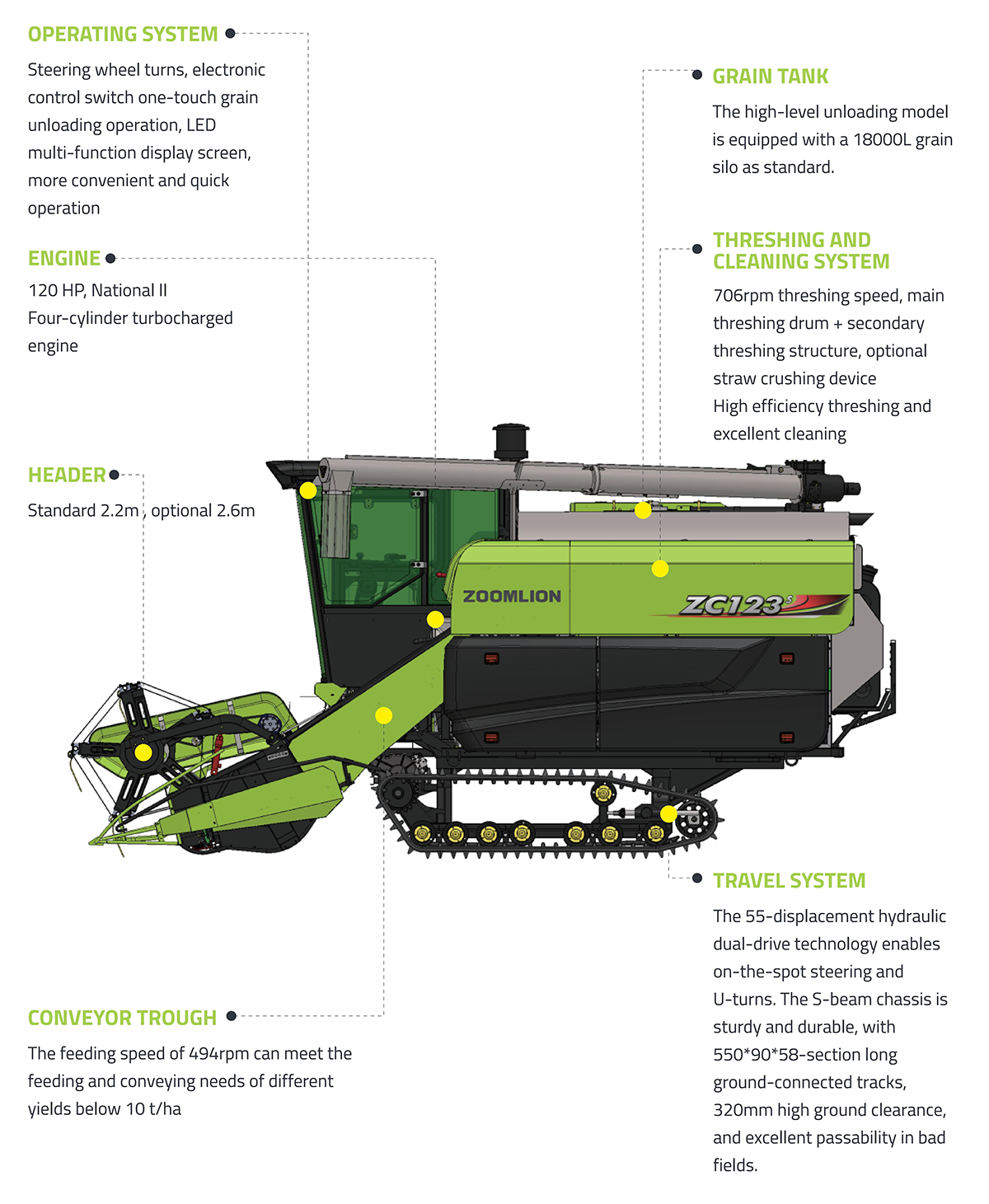

ZC123S CRAWLER RICE COMBINE HARVESTER

STRONG POWER

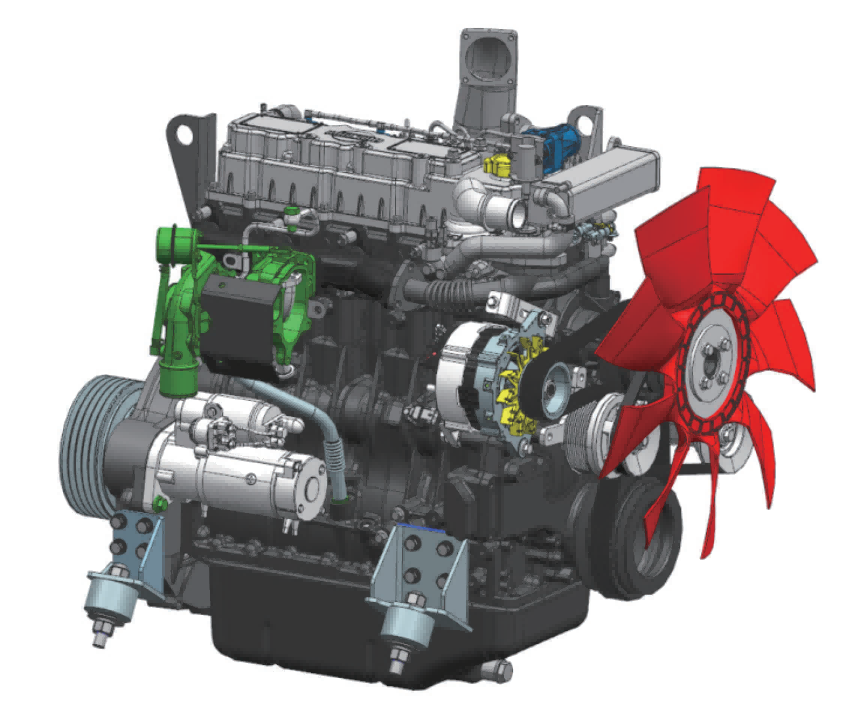

120HP HIGH HORSEPOWER NATIONAL II ENGINE

It uses Changchai turbocharged engine, which has sufficient horsepower and is easy to maintain, ensuring that the engine fuel consumption is controlled at 20 L/ha, saving customers' investment costs.

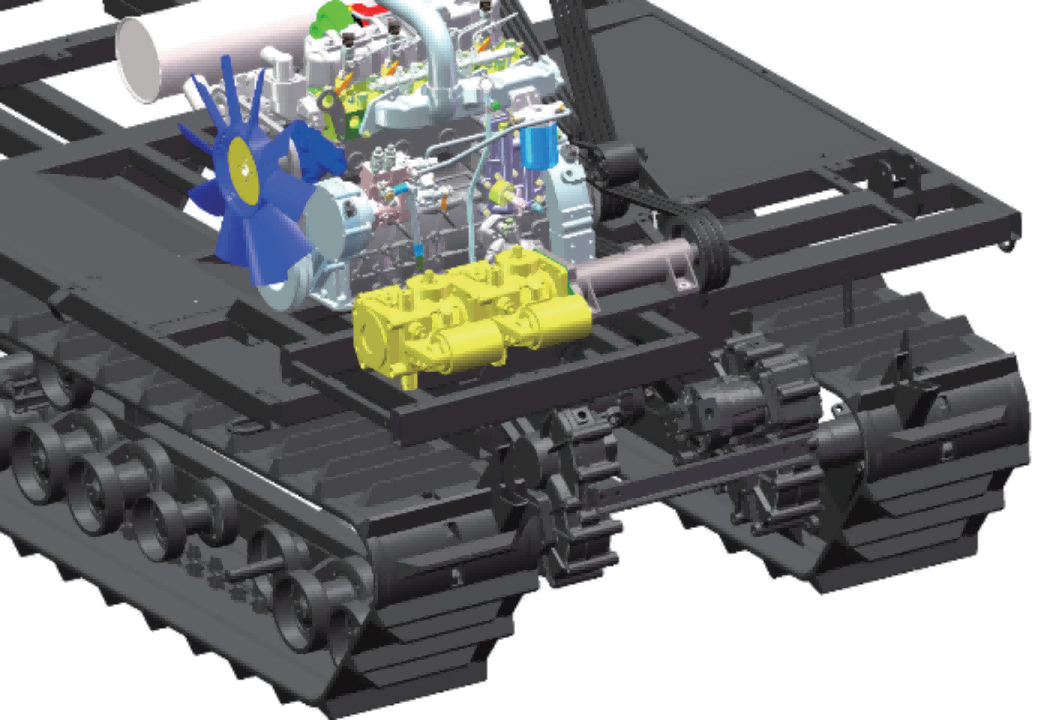

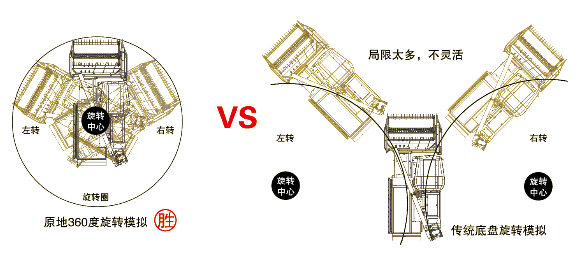

HYDRAULIC DUAL-DRIVE TECHNOLOGY

ZOOMLION original hydraulic drive technology uses two variable pumps to drive the left and right hydraulic motors to transmit power to the left and right crawlers respectively. According to tests, the paddy field passing capacity has been greatly improved, and it also brings the practical function of 360-degree rotation on the spot. When the left and right crawlers move at the same speed and in opposite directions, 360-degree rotation on the spot can be achieved, effectively reducing more than 30% of the non-harvesting time loss caused by turning and U-turning;

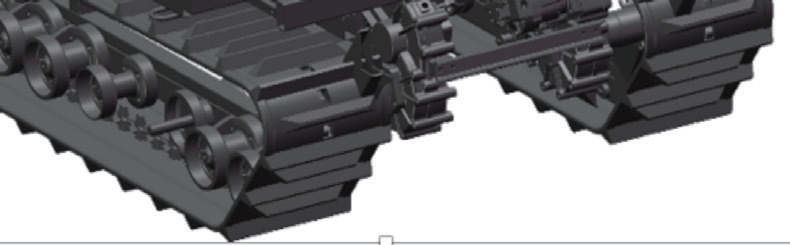

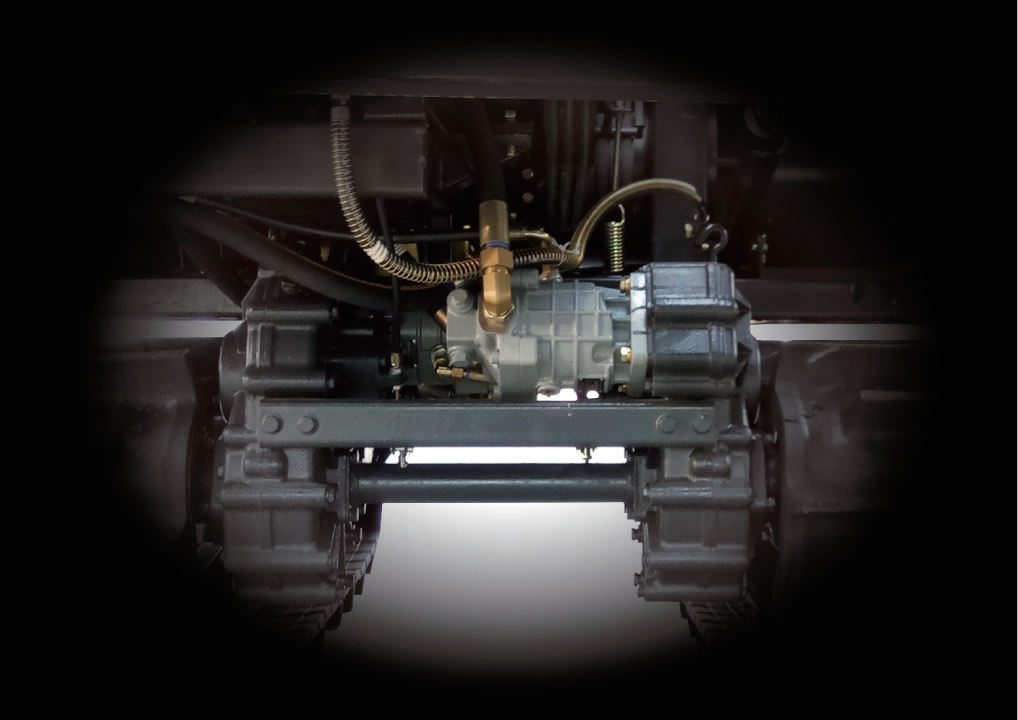

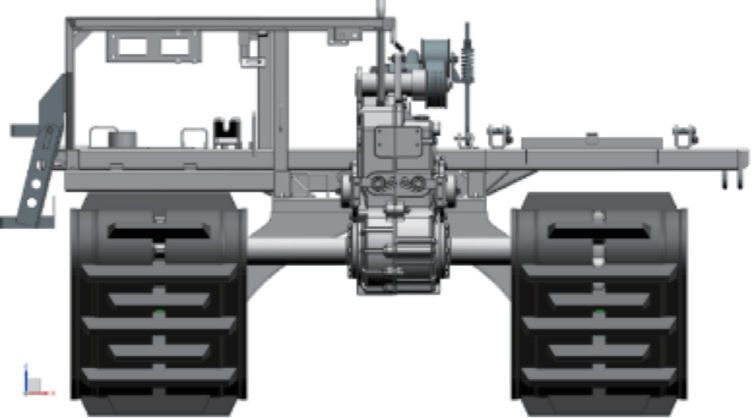

DUAL-DRIVE CHASSIS

The "八" type reinforced chassis has strong load-bearing capacity and better passability; the elevated chassis has better passability in muddy fields, and the variable speed pump + hydraulic motor is used for more powerful travel and more flexible steering.

EFFICIENT AND COMFORTABLE

320-450MM GROUND CLEARANCE

High ground clearance provides good trafficability and is suitable for field operations under various working conditions.

550MM*90MM*56 PATCH RUBBER CRAWLER

High-strength specially designed rubber crawler, using D-tooth crawler, has excellent self-cleaning ability

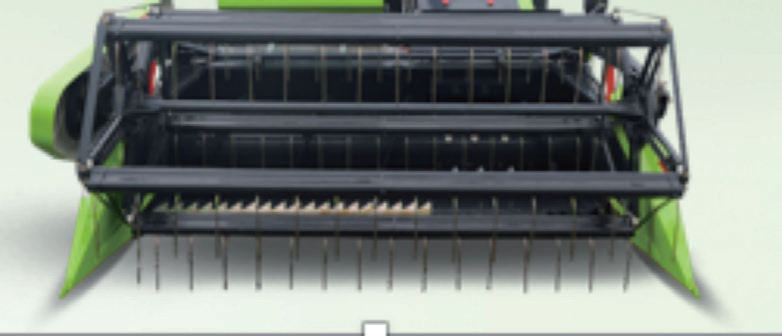

2.2/2.6M HEADER

A variety of header are available, and the rice header can be selected to be 2.2m or 2.6m, suitable for harvesting rice of different yields

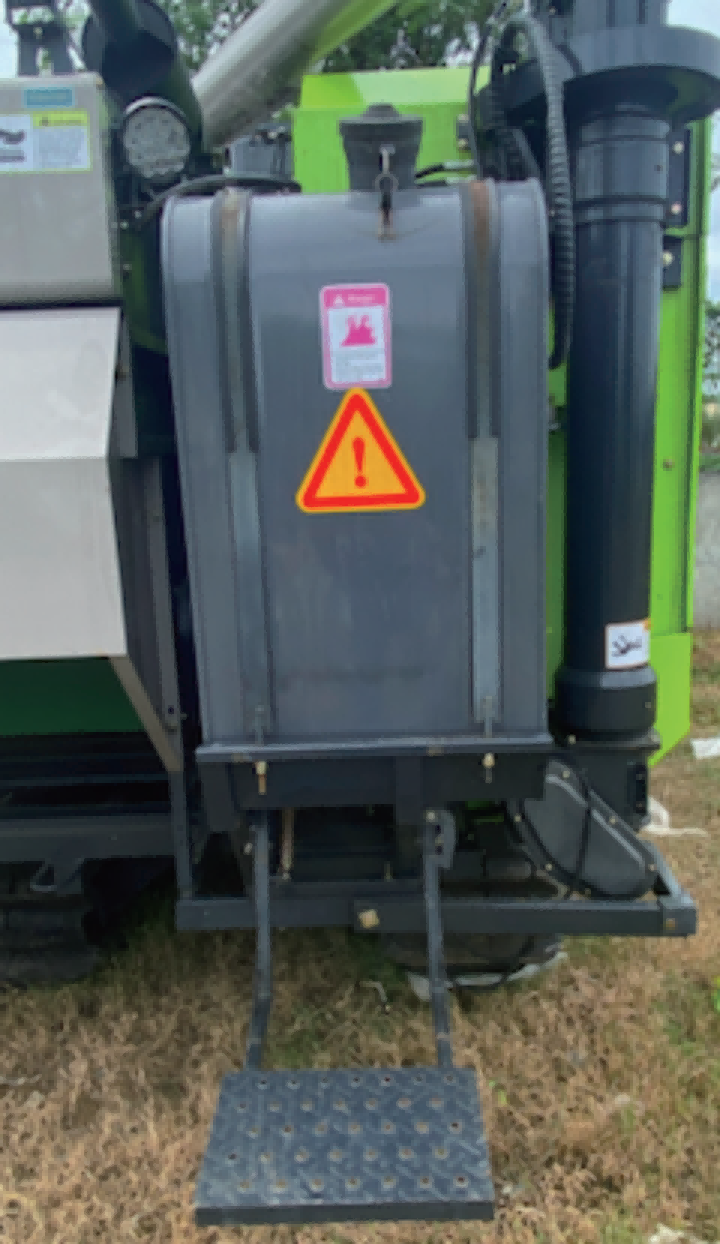

210 L FUEL TANK

The large-capacity fuel tank can meet the customer's daily work needs; the arc-shaped design protects the machine from colliding with pedestrians when turning, and at the same time increases the position of the fuel tank off the ground to reduce the possibility of the fuel tank colliding with the ground.

1800L GRANARY

The large-capacity granary can load about 1,300 kg of rice at a time, improving customer efficiency

EFFICIENT AND COMFORTABLE

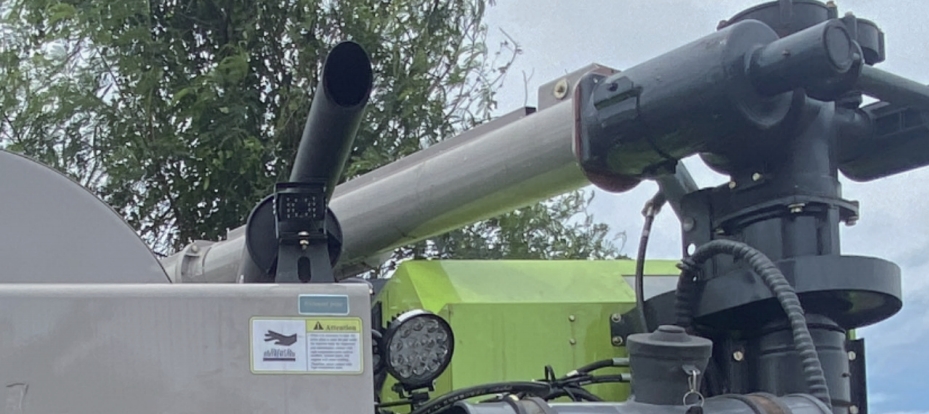

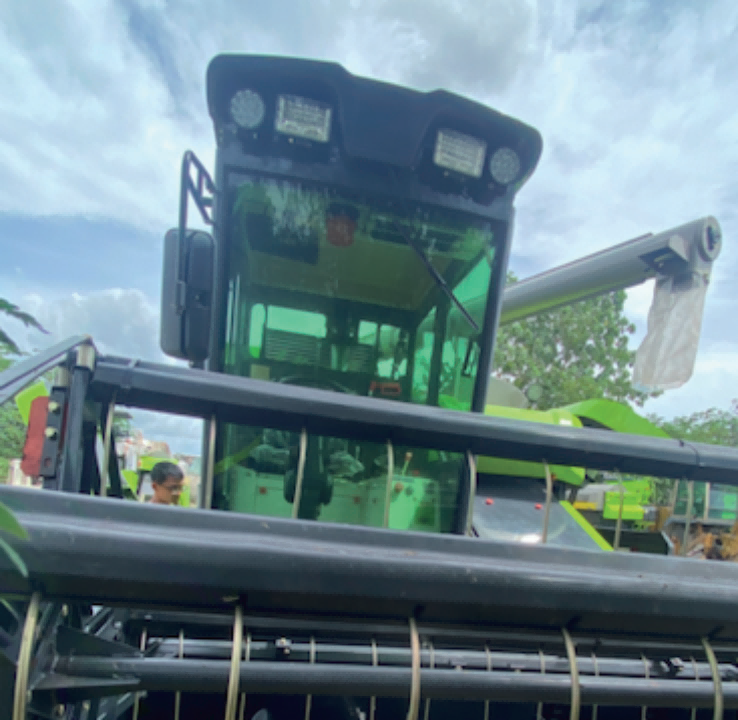

4.0M LONG ELECTRIC HIGH-LEVEL UNLOADING Fast speed and high efficiency ensure that the effective unloading time of a full granary is within 120s, reducing the time loss of unnecessary harvesting	REEL SPEED ADJUSTMENT The reel speed can be infinitely adjusted in the cab to adapt to fields with different yields and achieve uninterrupted harvesting

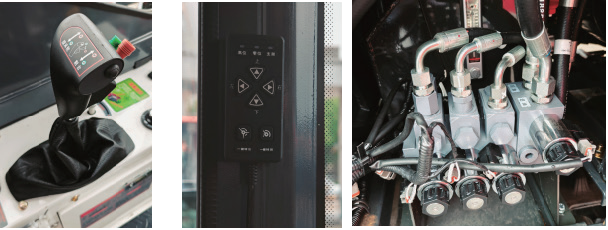

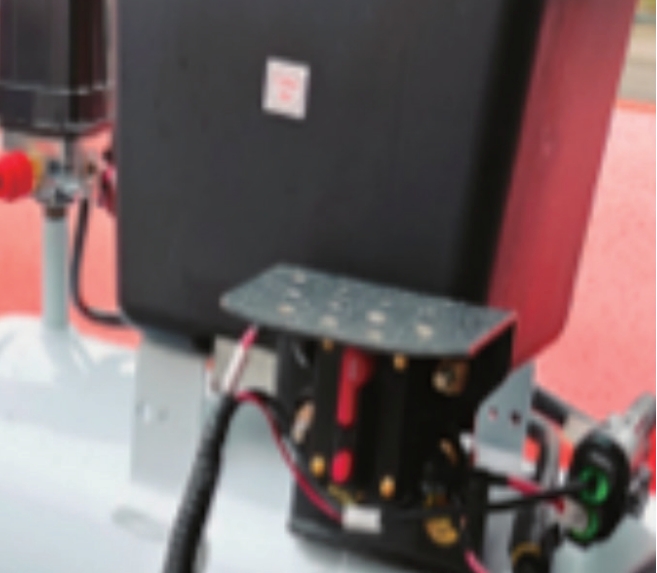

FIRST USE OF ELECTROMAGNETIC AND HYDRAULIC CONTROL TECHNOLOGY Integrated electronic control reduces the operating difficulty of the driver and effectively reduces the operator training time

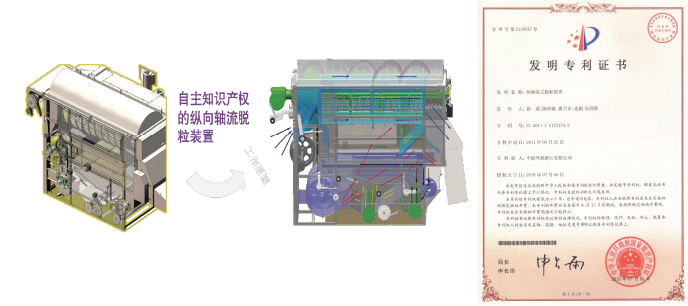

INDEPENDENT INTELLECTUAL PROPERTY RIGHTS The longitudinal axial flow threshing device with independent intellectual property rights is stable, efficient and more thorough in threshing; the all-round air duct, adjustable luxury vibrating sieve, efficient re-threshing and III-stage circulation cleaning system make the grains cleaner.

SMART AND CONVENIENT

EXTRA LARGE GRANARY, LONG-LASTING

ZL105 has two optional models, with a standard 210L extra-large fuel tank to meet the needs of uninterrupted operations throughout the day; according to the actual needs of customers in different countries, the product is divided into high-level unloading models and manual grain receiving models. Among them, the grain bin volume of the high-level unloading model is 1800L, which can load about 1,200kg of rice at a time, ensuring continuous harvesting of 0.4-0.8 acres in actual harvesting operations; the grain bin volume of the manual grain receiving model is 660L, which can accommo date 2 people to unload and bag the grain at the same time.

LARGER HEADER, FAST AND EFFICIENT

The ZL105 series is equipped with a 2.36m rice and wheat universal harvesting platform as standard, meeting the actual needs of customers for fast harvesting. The whole machine is equipped with working gear, transfer gear and walking gear, and the fastest walking speed can reach 2.4m/s; up to 9 hectares of rice can be harvested in a single day, effectively saving customers' time loss and shortening their investment payback period.

EXCELLENT THRESHING STRUCTURE DESIGN

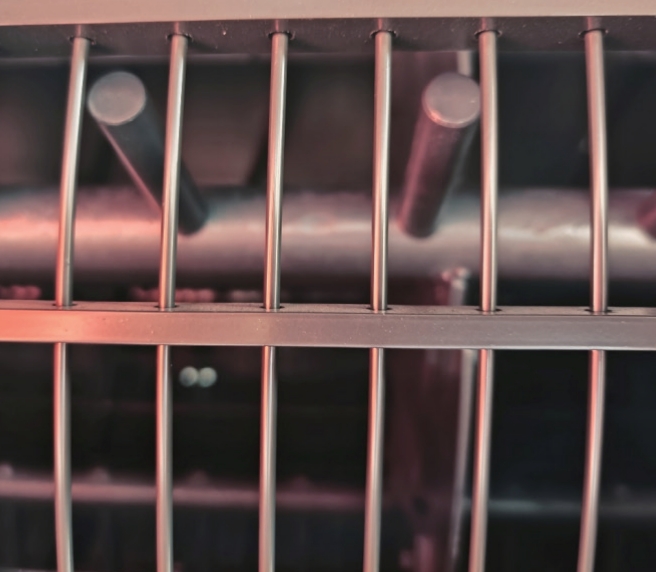

The threshing system of ZL105 adopts a mature threshing tooth rod structure, which is reliable and stable. The product is equipped with 6 threshing tooth rods as standard. After the spike teeth on one side are worn, they can be switched back and forth to reduce the use cost and ensure uniform threshing without grain leakage. At the same time, the matching concave plate screen ensures consistent installation dimensions. After one side is worn, it can be switched left and right. The effective threshing size reaches Ø620×2000mm, which is first-class in the industry.

RELIABLE AND DURABLE

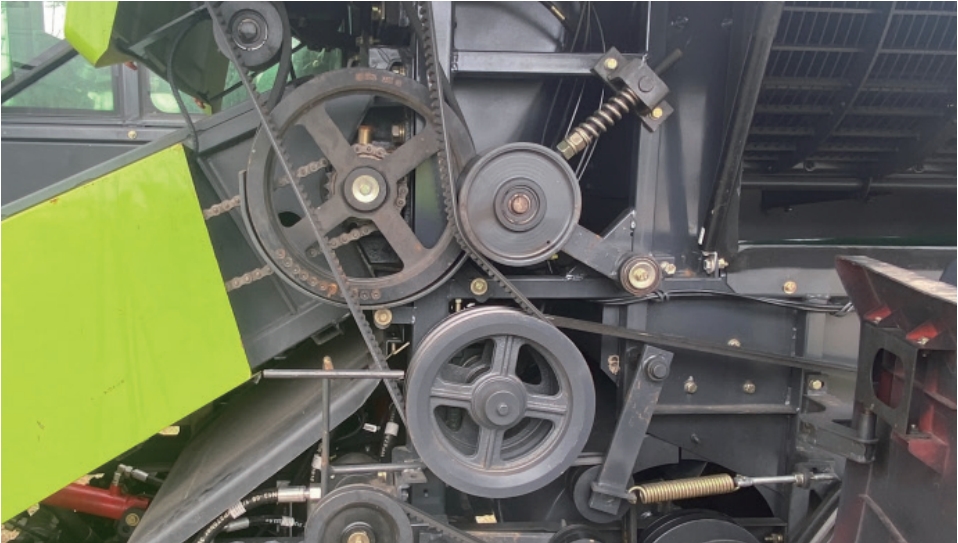

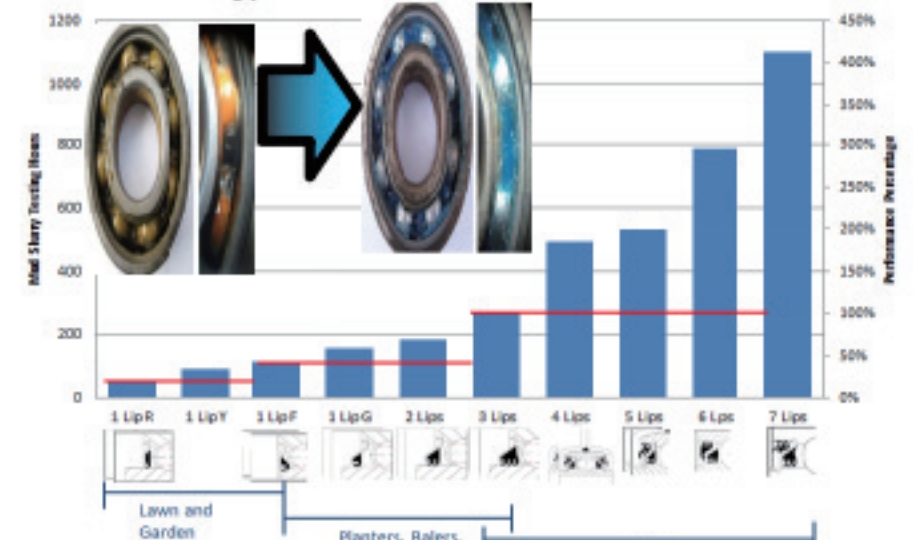

HIGH-QUALITY BEARINGS AND SEALS- extend the service life of vulnerable parts		MAINTENANCE OPTIMIZATION- optimized distribution of bearing lubrication points, centralized distribution maintenance is more convenient

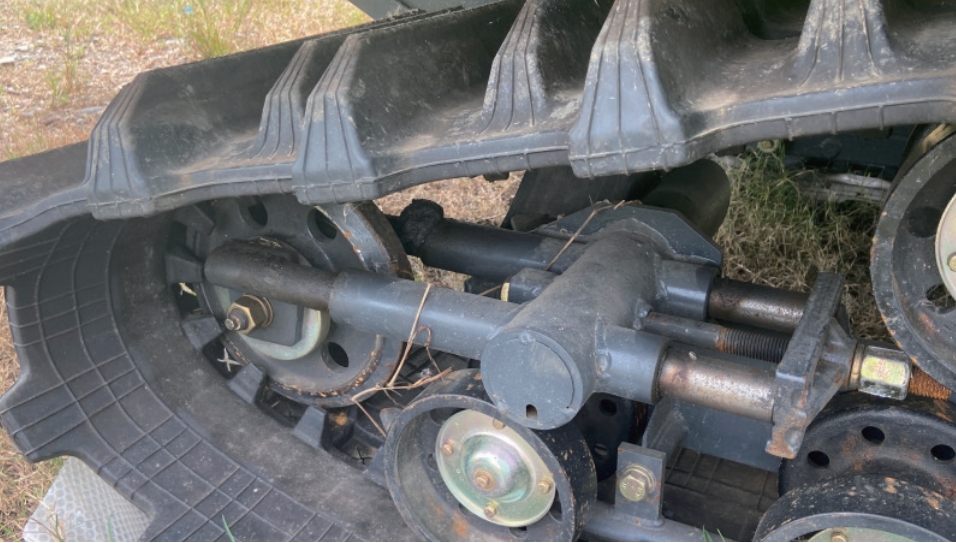

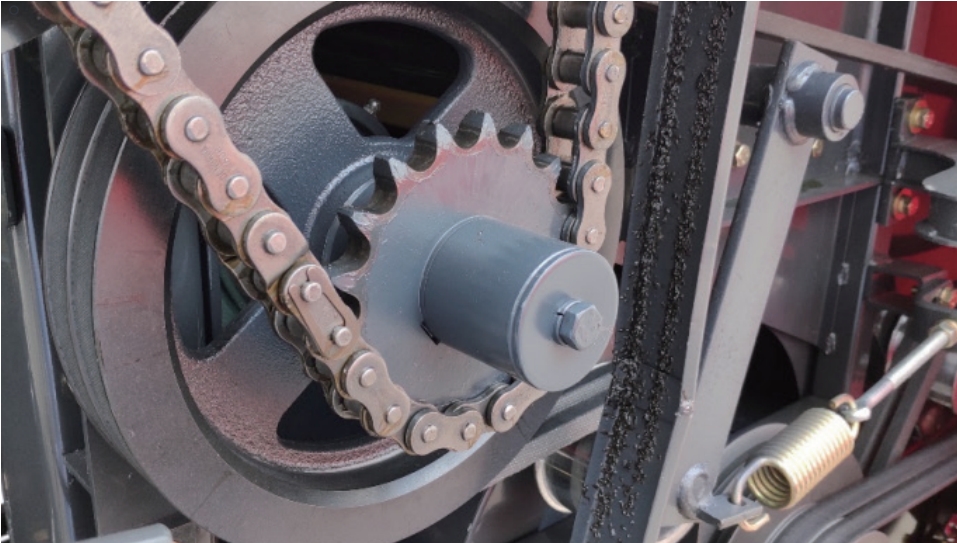

ADD OIL-PROOF BAFFLES- transmission chain side to reduce oil erosion from belts, etc.		THE GUIDE WHEEL ADOPTS DOUBLE SUPPORT RODS- it reduces the uneven force caused by track offset and increases the service life of the wheel system

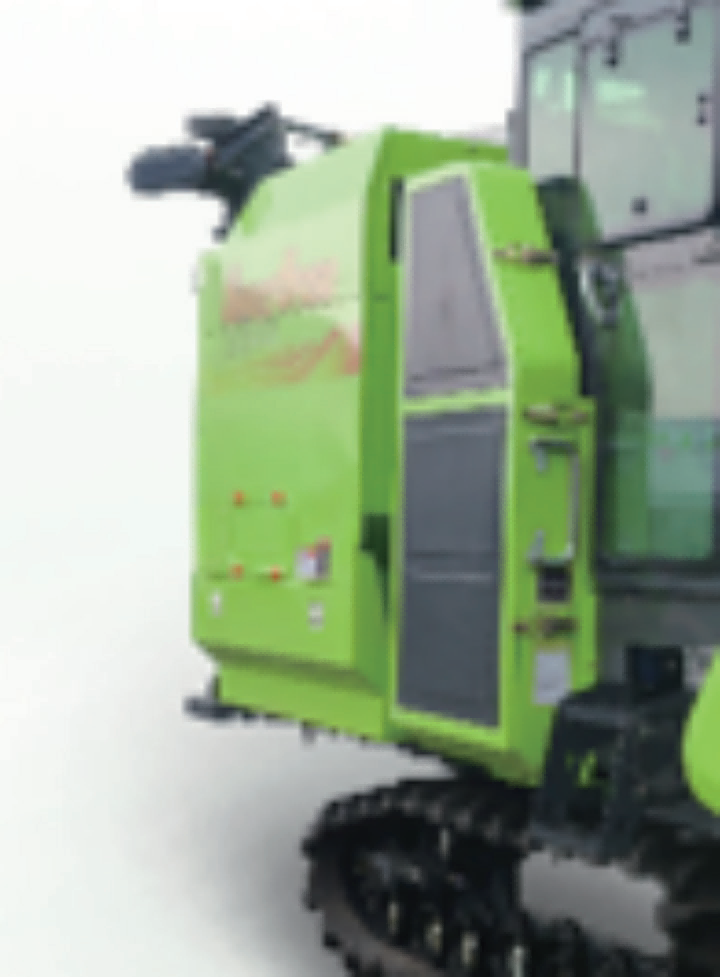

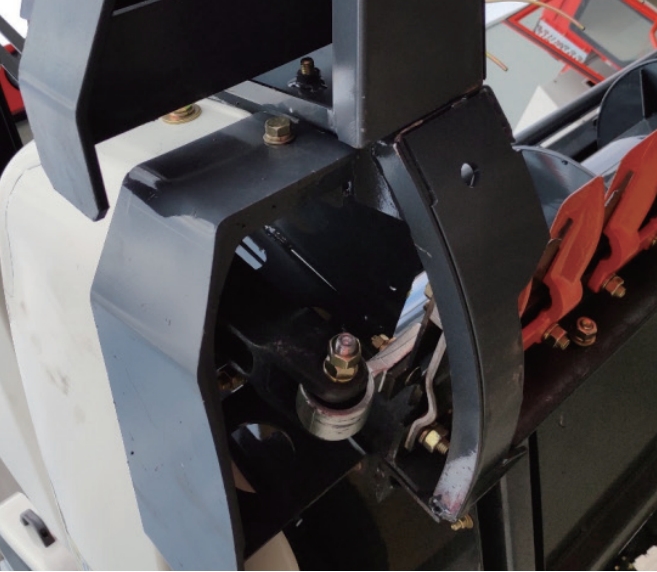

HIGH-PRESSURE AIR-BLOWING OUTER COVER CLEANING DEVICE- Keep the diesel engine in the best condition at all times	CHAMFERING OF THRESHING GEAR BAR- Reduce grain breakage		DOUBLE ANTI-COLLISION PROTECTION DEVICE- protect the safety of the cutting knife

Product Parameters

PROJECT	ZC123S
Product No	1220003300/1220005042
Engine	Nationalll Emission Standard 120HP
Dimensions	6000×2670×2850
Header Width	Standard 2200mm,optional 2600mm
Minimum ground clearance	300mm
Threshing method	Longitudinal axial flow,Φ605×2220
Crawler	90mm×56节×500mm(optional550mm)
Drivemode	Piston pump+hydraulic motor+reduction box(hydraulic dual-drive)
Chopper	No
Feed Capacity	7kg/s
Fule Tank Capacity	210L
Grain Tank Capacity	high-level unloading:1800L

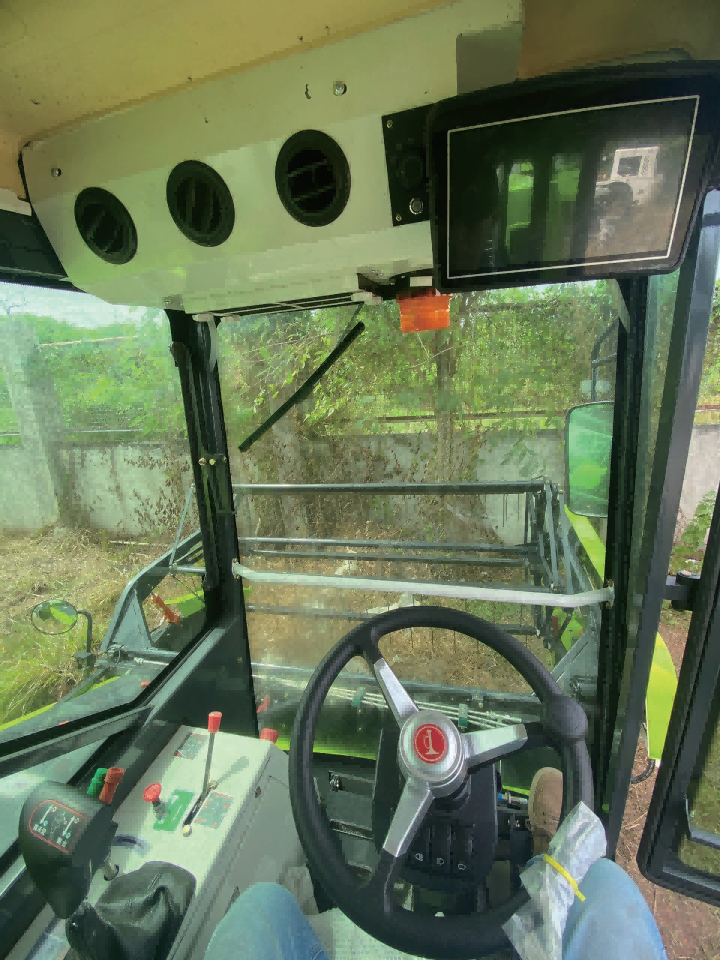

Cab	Air-conditioned cab
Loading standard	2 unit/40HQ
