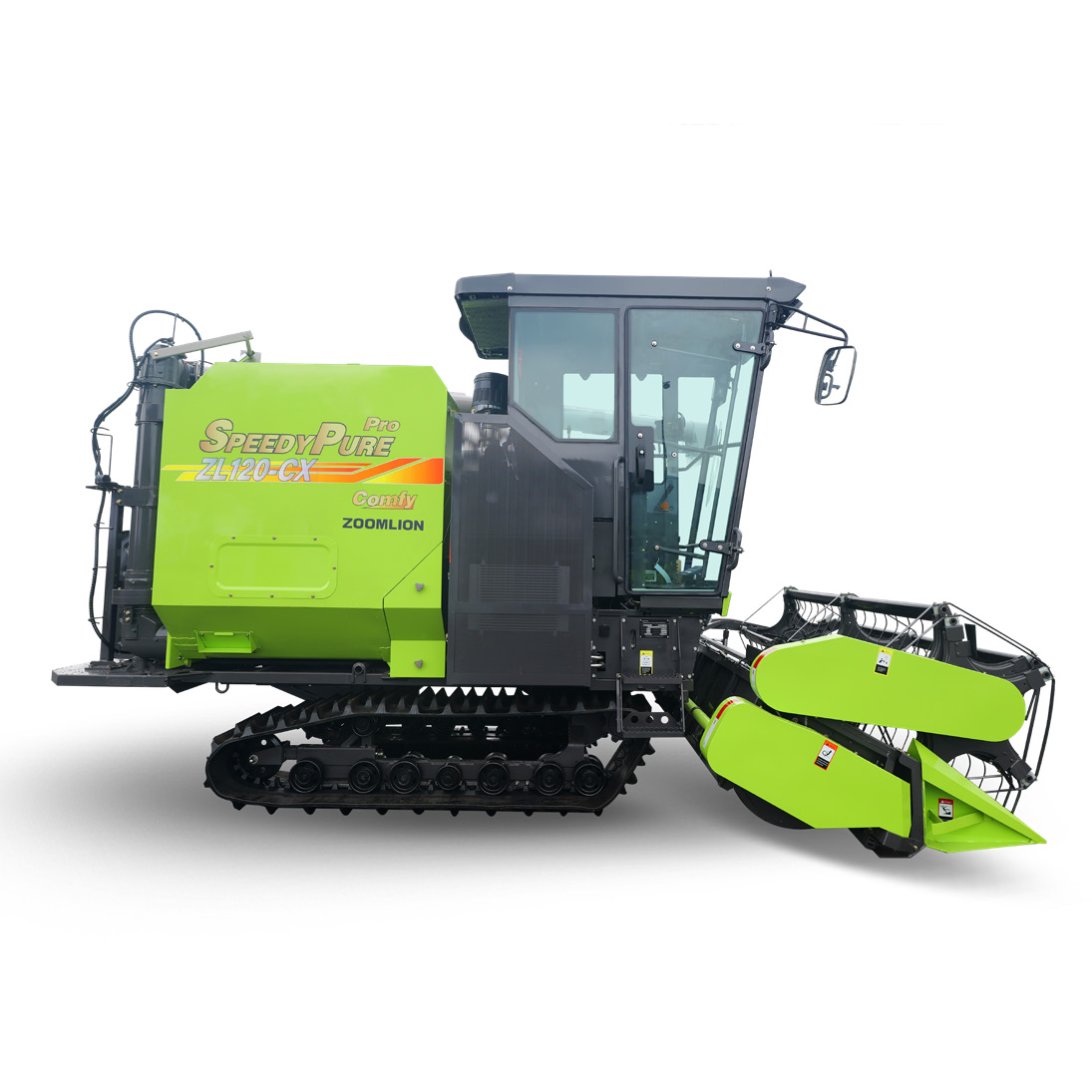

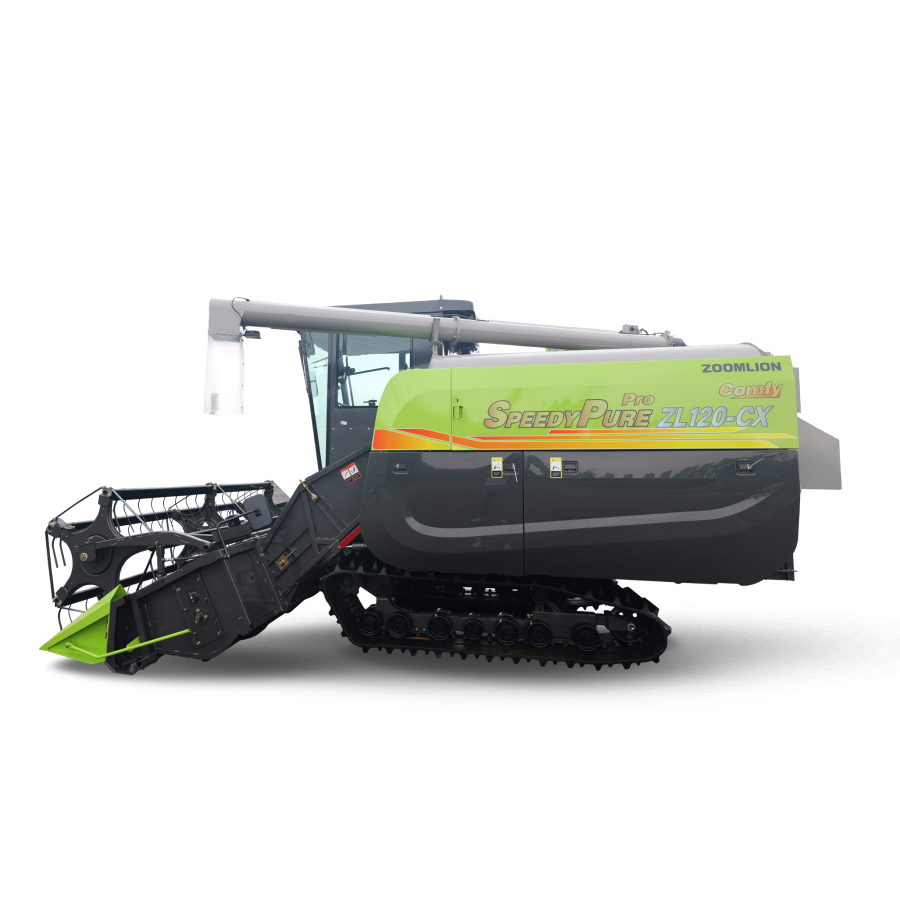

ZL120 Crawler Rice Combine Harvester

120 hp

Power

1800 litres

Grain tank capacity

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

STRONG POWER

POWERFUL AND ENERGY-EFFICIENT ENGINE

Standard Xinchai National II 120 horsepower engine, optional Yuchai National III 140 horsepower engine, excellent performance, equipped with electronic oil pump, automatic oil pumping is convenient and fast, meeting the needs of different customers for engine horsepower

HIGH LOAD-BEARING CAPACITY AND STABLE PERFORMANCE

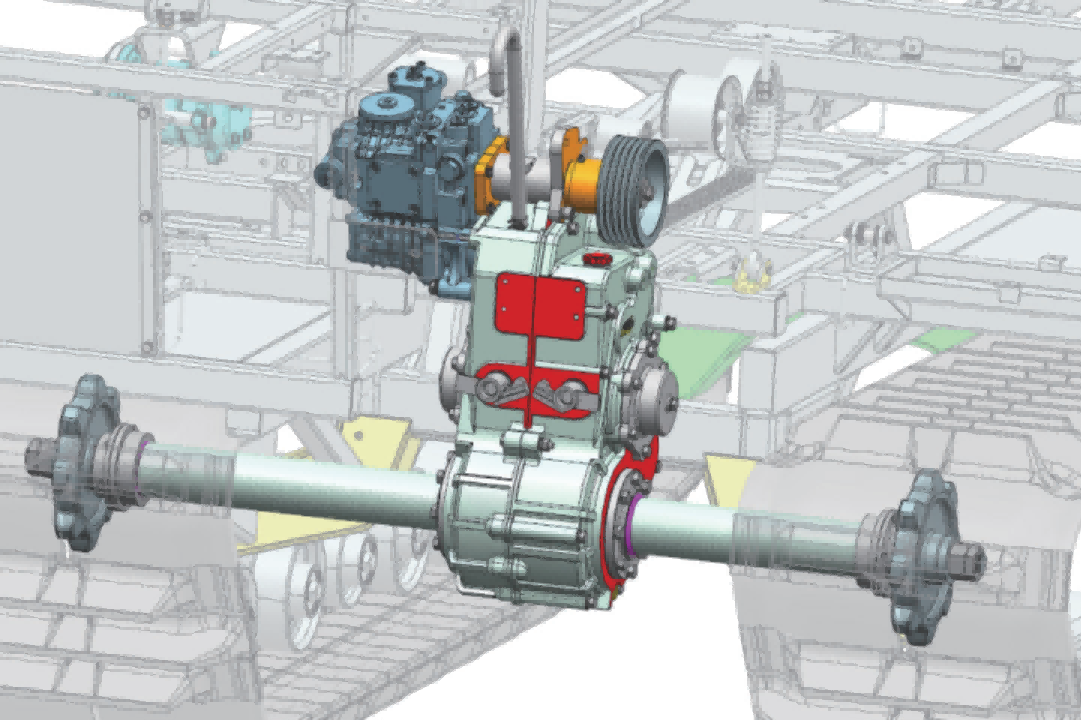

The transmission mechanical speed change structure adopts 55cc large displacement HST+100 high-performance gearbox to ensure large power reserve, high torque and no speed drop of the whole machine, which is suitable for the power requirements of various working conditions such as transportation, overtaking and operation.

OPERATIONAL EFFICIENCY

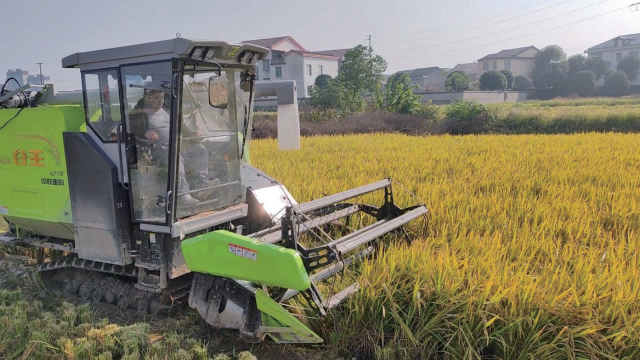

WALKING FAST

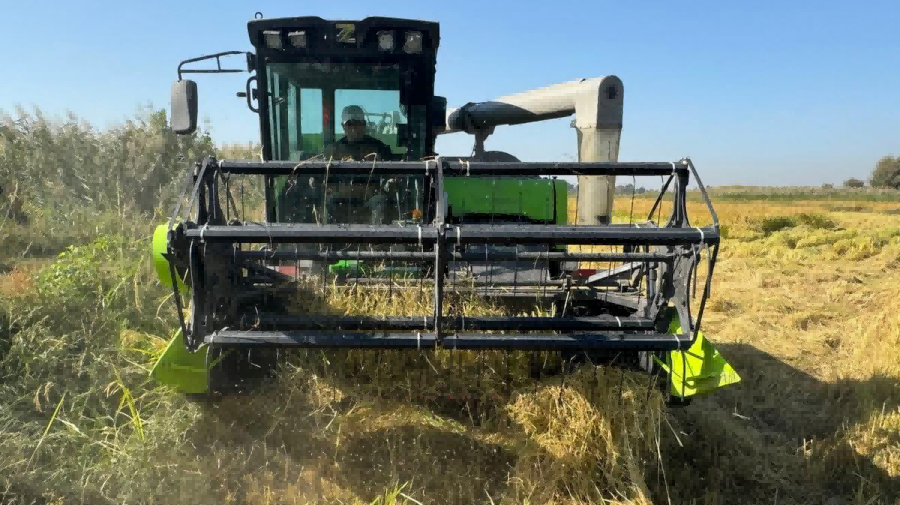

The maximum operating speed is 2.7m/s, and the theoretical maximum operating speed is 1.2ha/h. In actual tests of harvesting large wet and rotten fields, the maximum operating speed is 0.9 ha/h.

MORE STORAGE

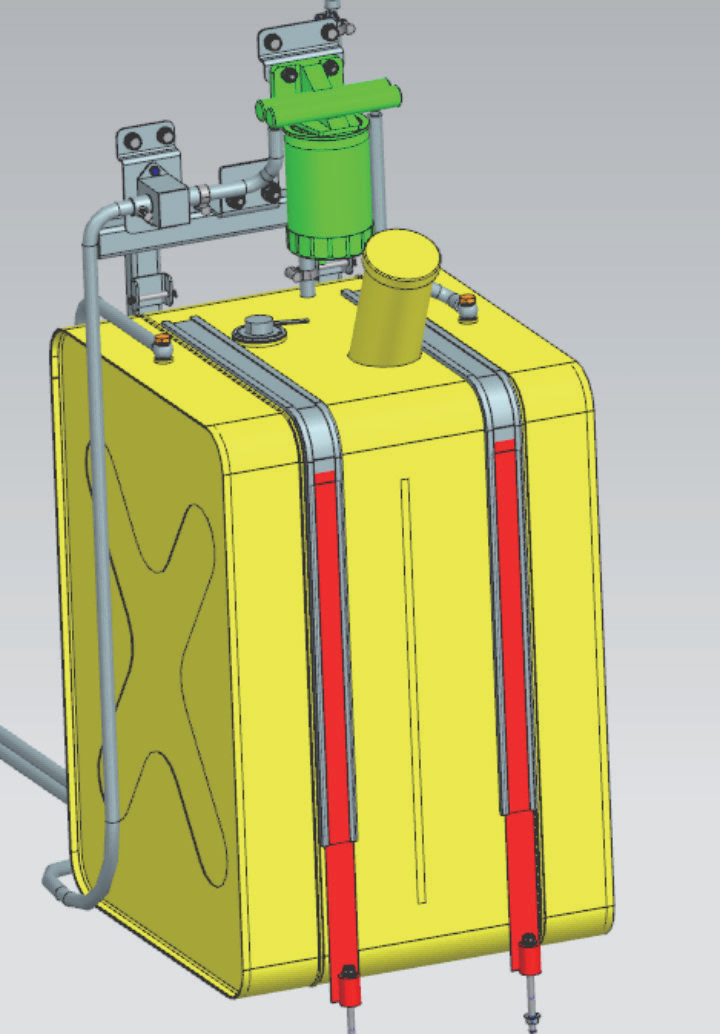

The standard 210L extra-large fuel tank can meet the needs of uninterrupted operations throughout the day; the maximum grain bin capacity is 1800L, which can load about 1300kg of rice at a time, ensuring continuous harvesting of 0.4-0.8 acres in actual harvesting operations;

EXCELLENT THRESHING STRUCTURE DESIGN

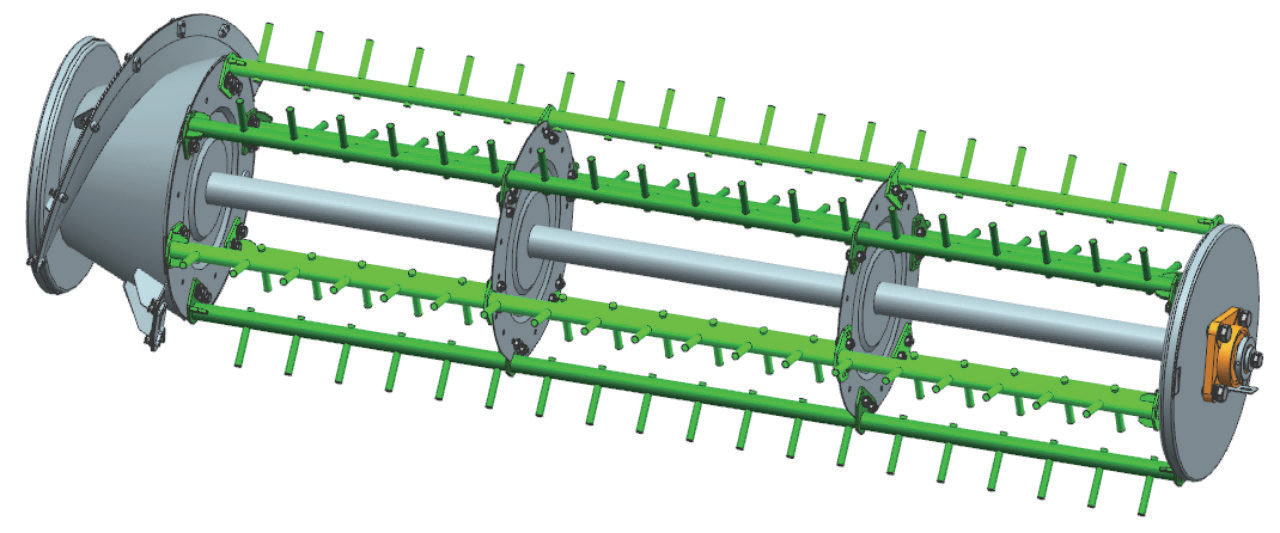

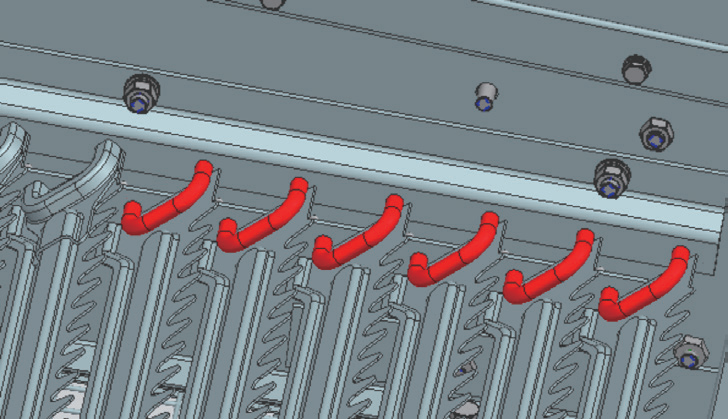

It adopts mature threshing system technology in the Chinese market, which is reliable and stable. The spike teeth of the tooth bar can be switched back and forth after one side is worn, which reduces the use cost and ensures uniform threshing without grain leakage. At the same time, the matching concave plate screen ensures consistent installation size. It can be switched left and right after one side is worn. The effective threshing size reaches Ø620×2200mm, and the effective threshing speed can reach up to 720rpm, which is the first-class level in the industry.

OPERATIONAL EFFICIENCY

EFFICIENT SECONDARY THRESHING STRUCTURE DEVICE

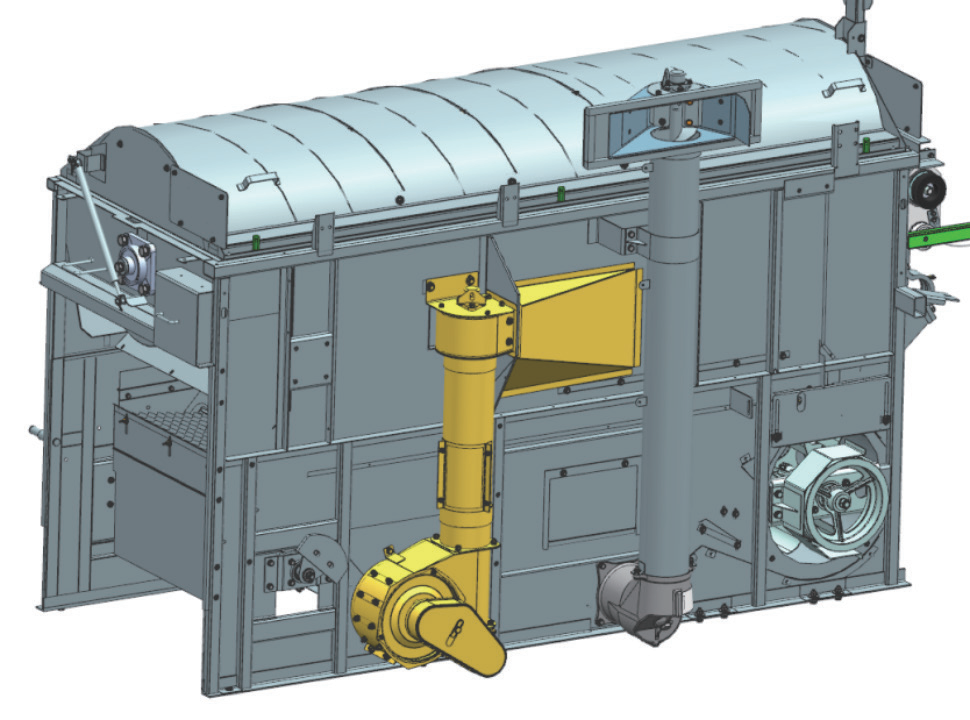

Adopts the mature secondary threshing technology in the Chinese market, and the residual system is newly upgraded. The secondary threshing drum is eliminated, and the grains are returned to the screen surface after secondary threshing, which is clean and achieves the effect of secondary threshing. It effectively reduces the threshing loss caused by immature and damp grains, and reduces the weight of the whole machine;

INDUSTRY-LEADING CLEANING TECHNOLOGY

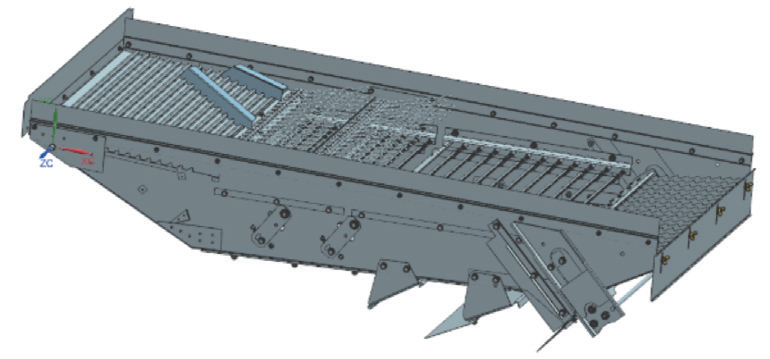

The large-area 840×1800mm working screen surface ensures that the impurity rate is controlled below 2%. The vibrating screen adopts a split design, which effectively reduces the weight by more than 20% compared with the integrated structure. The cleaning system adopts the traditional design, which is easy to adjust and adds air volume adjustment, screen angle adjustment, and tail baffle adjustment for easy operation;

ORIGINAL FAN CLEANING TECHNOLOGY

CAE digital profiling analysis technology was used to simulate the harvesting, threshing and cleaning of the whole machine during the research and development stage, and to find the optimal air duct for its fan cleaning technology. An 8-blade fan was used, which has a more uniform wind speed distribution than a 4-blade fan, and the average wind speed is increased by 30%.

COMFORTABLE OPERATION

INDEPENDENTLY DEVELOPED

INTEGRATED DISPLAY + CONTROL SYSTEM

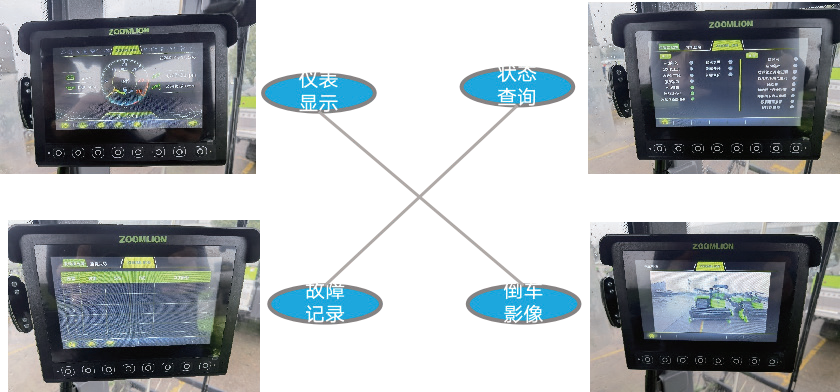

The 14-inch high-definition color touch multifunctional display has a simple operation interface and integrated display. One screen can simultaneously display the machine parameters, host records, status query and reversing images and other functions, allowing users to control the overall situation without leaving the "room"; the whole machine control part adopts highly integrated control, using an integrated main operating handle, and the whole machine steering, cutting platform lifting, and reel lifting are integrated into one lever, with fast response speed.

ONE-CLICK UNLOADING, ONE-CLICK RETURN

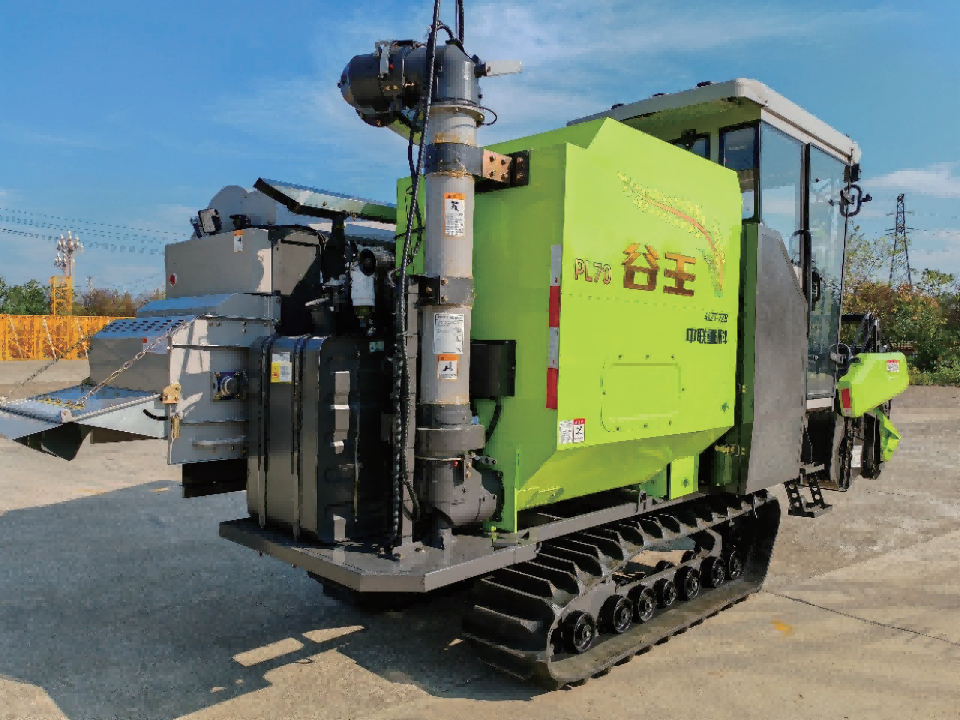

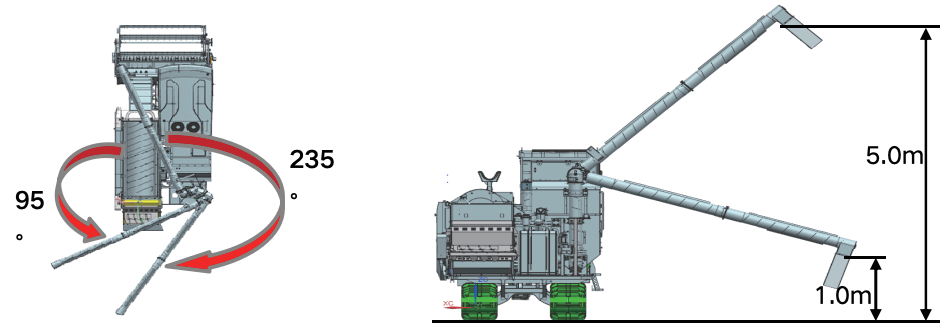

The grain unloading operation has added one-button unloading and one-button return functions. The electronic control operation is convenient and time-saving. The 4.1-meter grain unloading barrel can achieve 336° steering (95° left turn, 235° right turn), and the grain unloading height is 1.0m-5.0m. New lighting is added inside the grain bin to achieve unloading without dead angles.

HIGH RELIABILITY

CENTER-WHEEL CHASSIS DESIGN

The mature center-wheel chassis technology in the Chinese market is adopted. The thrust wheels and guide wheels in the key chassis parts are changed from offset to center-position, which improves the chassis's carrying capacity. The 58-section extended high-pattern track, 6 sets of supporting wheels, and the supporting wheels are optimized for crossing bumps. The measured ground pressure is ≤20Kpa, which can adapt to various harsh working conditions such as muddy fields and deep water areas, and has excellent trafficability

ORIGINAL ARCHED BEAM DESIGN

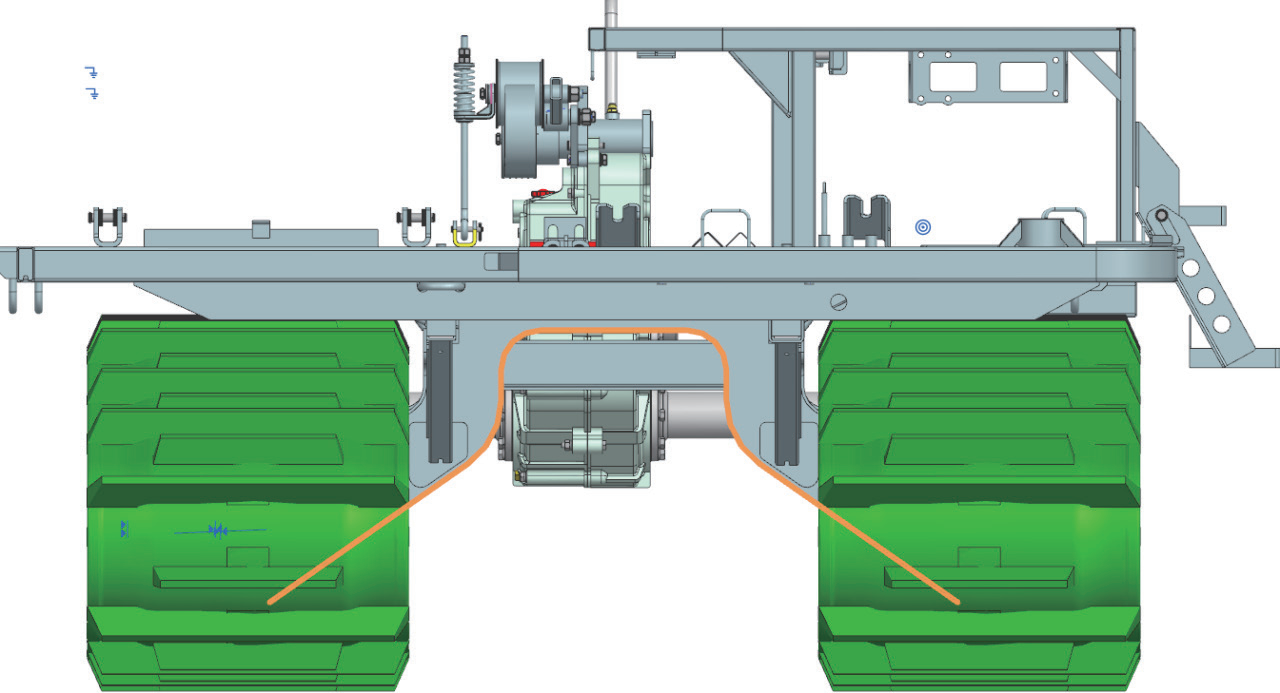

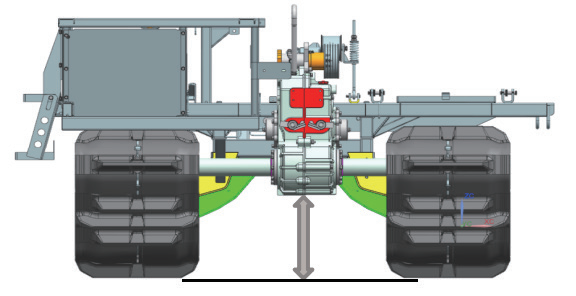

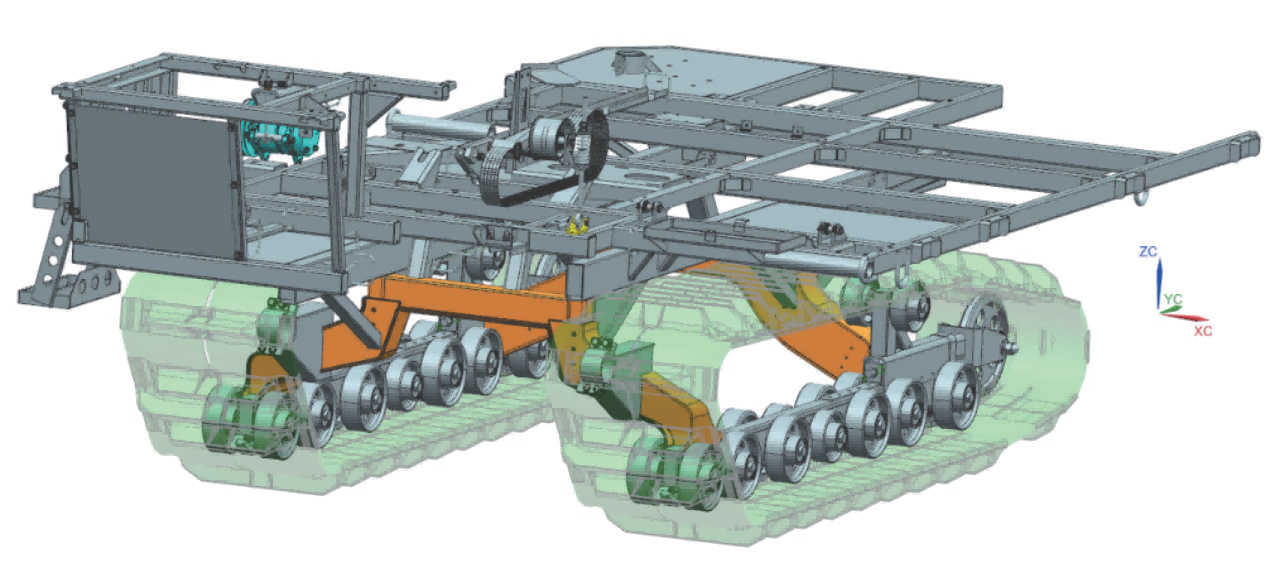

Based on the "八"-shaped beam used by mainstream products in the market, digital profiling technologies such as CAE are used to simulate the machine's sharp turns, crossing bumps, and transfers when fully loaded, analyze the stress tolerance range of the chassis under various working conditions, re-optimize the chassis structure, and innovatively propose a U-shaped arched structural beam design. On the basis of ensuring good load-bearing capacity, the ground clearance of the machine is increased to 350mm-600mm, with good mud discharge effect and passing ability.

Through area：0.366m²

HIGH RELIABILITY

HIGH-QUALITY BEARINGS ARE USED IN KEY PARTS

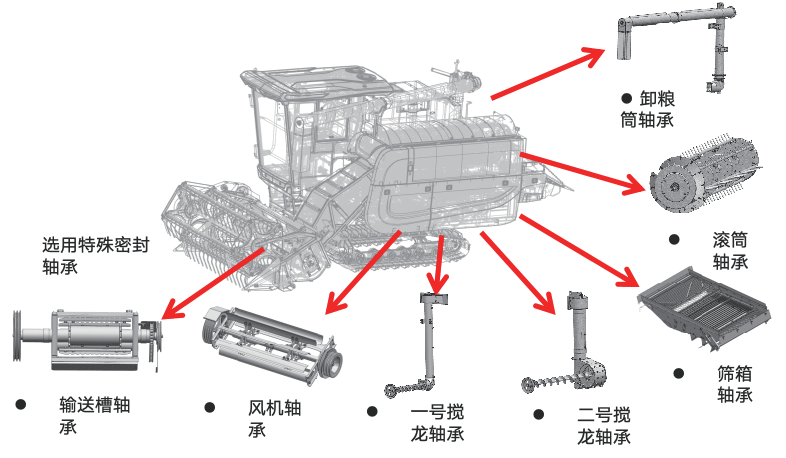

The bearings of the key heavy-duty parts such as the feeding auger, fan, power input pulley, threshing drum, vibrating screen and travel tensioning bracket are made of international brands, which effectively increases the service life of the parts and reduces the frequency of failures caused by high-intensity operations.

WEAR-RESISTANT REINFORCEMENT OF KEY PART

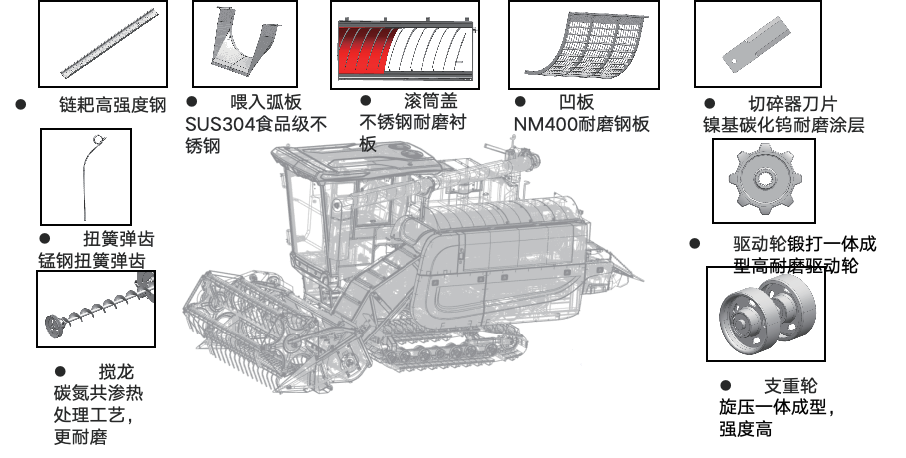

According to the actual working conditions of the harvester, the wear resistance of the conveyor chain rake, conveyor auger, guide plate, grass guide plate, concave screen, drive wheel and thrust wheel, which are easy to wear and tear in direct contact with rice, is strengthened to extend the service life of the parts.

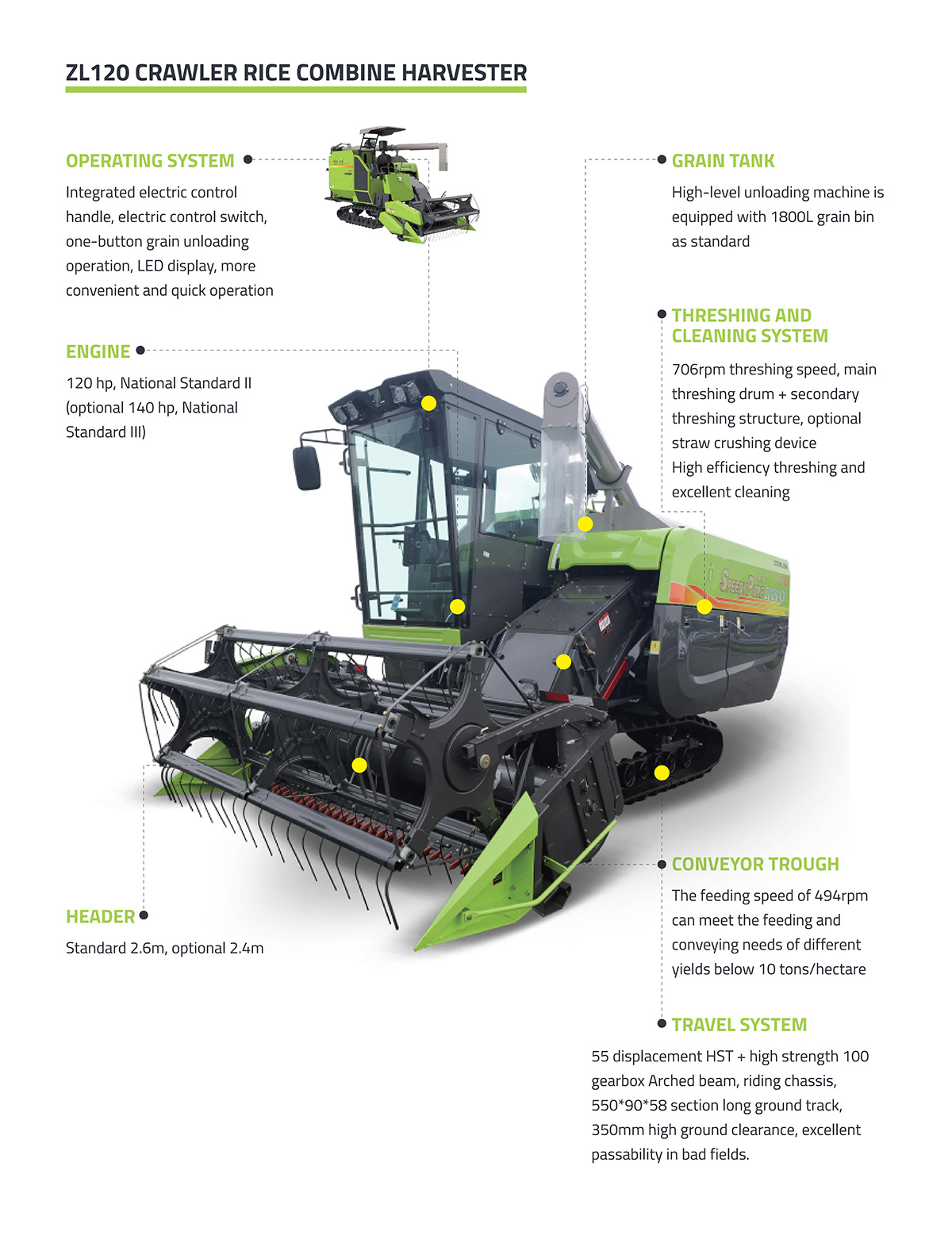

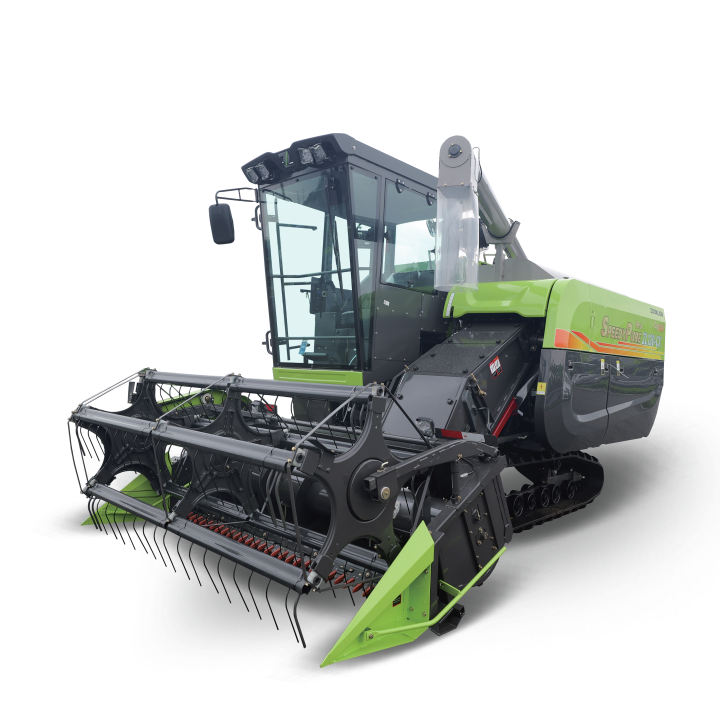

ZL120 CRAWLER RICE COMBINE HARVESTER

INTELLIGENT IMPROVEMENT

Steering, header lifting, and reel lifting are integrated into one Joystick, and One-click unloading and one-click return are standard. The operation is convenient and time-saving, and the comfort level of electronic control is the best in the industry.

RELIABLE STRUCTURE AND DURABLE

The whole vehicle adopts CAE profiling technology, which simulates first and then verifies. The key components are tested for 1,000 hours of durability. The cumulative continuous testing in China is more than 1,000 hours, ensuring the durability and reliability of key components.

SUPER HIGH EFFICIENCY AND POWERFUL POWER

The 120HP engine provides sufficient power to easily pass through fields of various terrains; the industry's first-class threshing and cleaning technology ensures that the grain loss rate is controlled within 2%; the 1800L large grain silo and 210L large fuel tank ensure uninterrupted refueling during the day's work.

Product Parameters

PROJECT	ZL120-CX/ZL120-SX
Product No	017407000ZA112001/017407000ZA122001
Engine	National ll Emission Standard 120HP(optional 140HP NationalIII)
Dimensions	5690×2800×2980
Header Width	The feed auger is standardly 300mm in diameter and can be optionally 380mm in diameter;the header width is standardly 2600mm; the reel control mode can be optionally hydraulically modulated
Minimum ground clearance	350mm
Threshing method	Longitudinal axial flow,φ620×2010
Crawler	90mm×58节×550mm(optional 500mm)
Drive mode	HST+gear Box
Chopper	optiona
Feed Capacity	7kg/s
Fule Tank Capacity	210L
Grain Tank Capacity	high-level unloading:1800L
Cab	Air-conditioned cab/awning bracket(with fan)
Loading standard	2 unit/40HQ
